501-10 Bancos

501-10-1 Seating 501-10-1 . SECTION 501-10 Seating VEHICLE APPLICATION: 2011.50 Ranger CONTENTS DESCRIPTION AND OPERATION Seats................................................................................................................................... REMOVAL AND INSTALLATION Front Bench Seat................................................................................................................ Front Seat....................................................................................................... Front Seat Backrest............................................................................................................ Rear Seat............................................................................................................................ Rear Seat Backrest............................................................................................................. DISASSEMBLY AND ASSEMBLY Front Bench Seat Backrest................................................................................................. Front Bench Seat Cushion................................................................................................. Front Seat Cushion............................................................................................................. Front Seat Backrest............................................................................................................ Rear Seat Backrest............................................................................................................. Rear Seat Cushion............................................................................................................. PAGE 501-10-2 501-10-9 (40 100 0; 40 100 4; 40 101 0) 501-10-10 501-10-12 501-10-14 501-10-16 501-10-17 501-10-19 501-10-21 501-10-23 501-10-26 501-10-30

501-10-2 Seating 501-10-2 DESCRIPTION AND OPERATION Seats General Side airbags and height adjustable head restraints are installed as standard equipment. Depending on the vehicle specification, either 2-way, 4-way or 8-way adjustable head restraints are installed as an option. Depending on the vehicle specification, the front seats may be equipped with any one or combination of the following: ‡ Manual or power seat height adjustment ‡ Seat rails, forward and rearward motion ‡ Backrest recline ‡ Manually adjustable lumbar mat ‡ Heated cushion and backrest Always move the head restraints to the raised position if the rear seat is occupied by a passenger or is used for a child restraint system. The rear head restraints must be lowered to allow the seat to be folded down. Single cab front seat

501-10-3 Seating 501-10-3 DESCRIPTION AND OPERATION 1 10 8 7 E127244 2 4 3 5 6

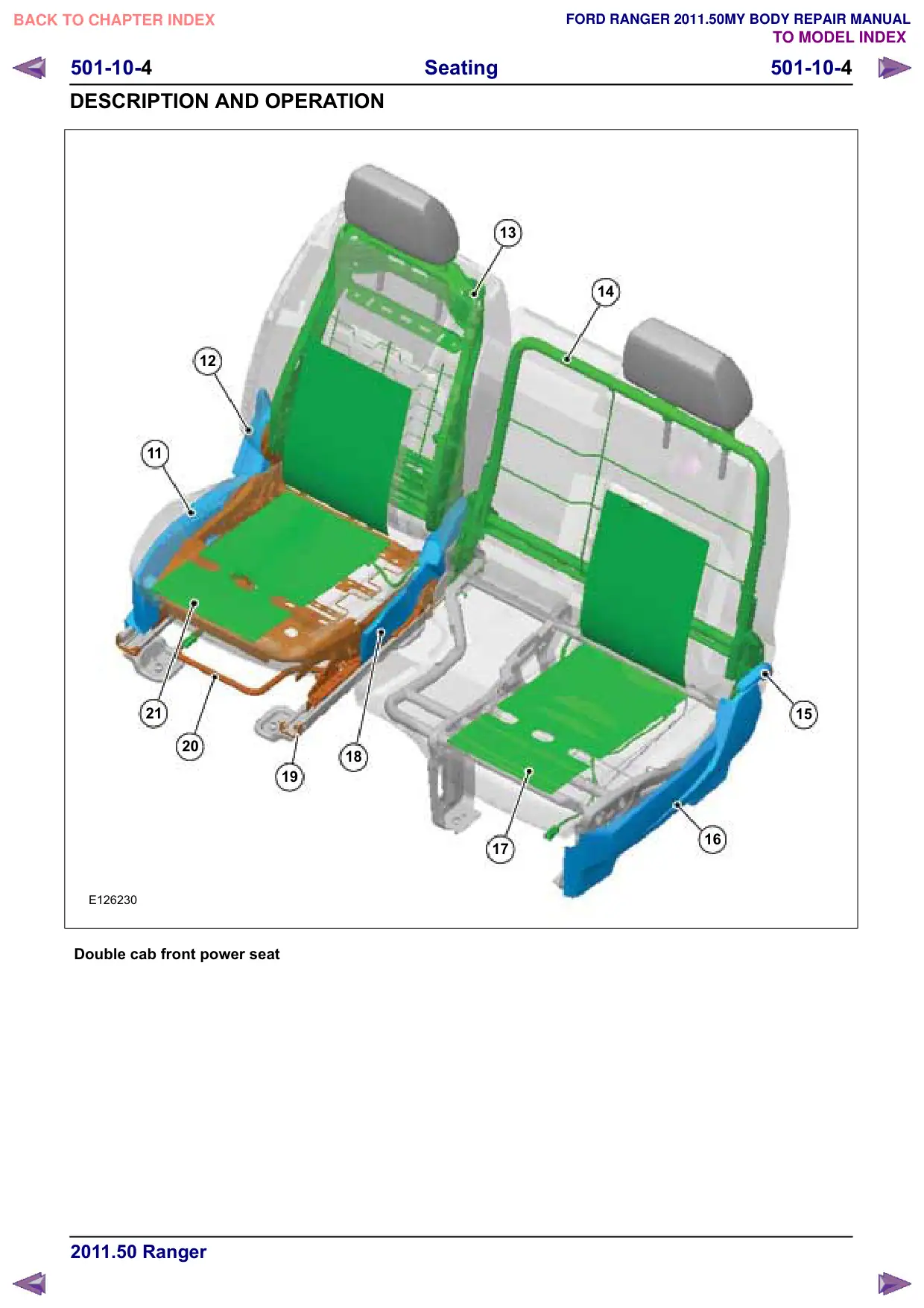

501-10-4 Seating 501-10-4 DESCRIPTION AND OPERATION 12 11 21 20 18 19 E126230 Double cab front power seat 13 14 15 16 17

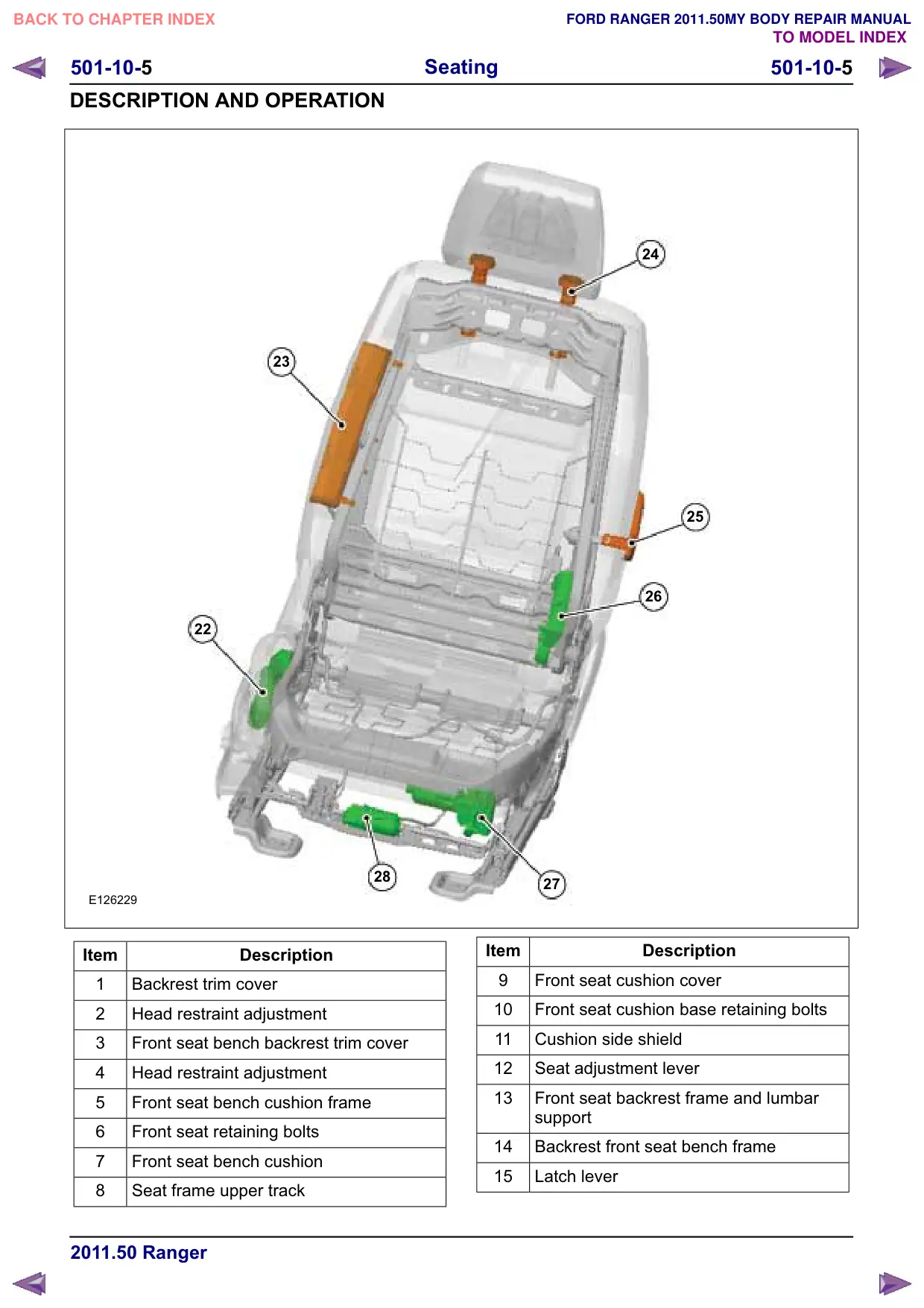

501-10-5 Seating 501-10-5 DESCRIPTION AND OPERATION 23 22 28 E126229 Item Description 1 Backrest trim cover 2 Head restraint adjustment 3 Front seat bench backrest trim cover 4 Head restraint adjustment 5 Front seat bench cushion frame 6 Front seat retaining bolts 7 Front seat bench cushion 8 Seat frame upper track 24 25 26 27 Item Description Front seat cushion cover 10 Front seat cushion base retaining bolts 11 Cushion side shield 12 Seat adjustment lever 13 Front seat backrest frame and lumbar support 14 Backrest front seat bench frame 15 Latch lever

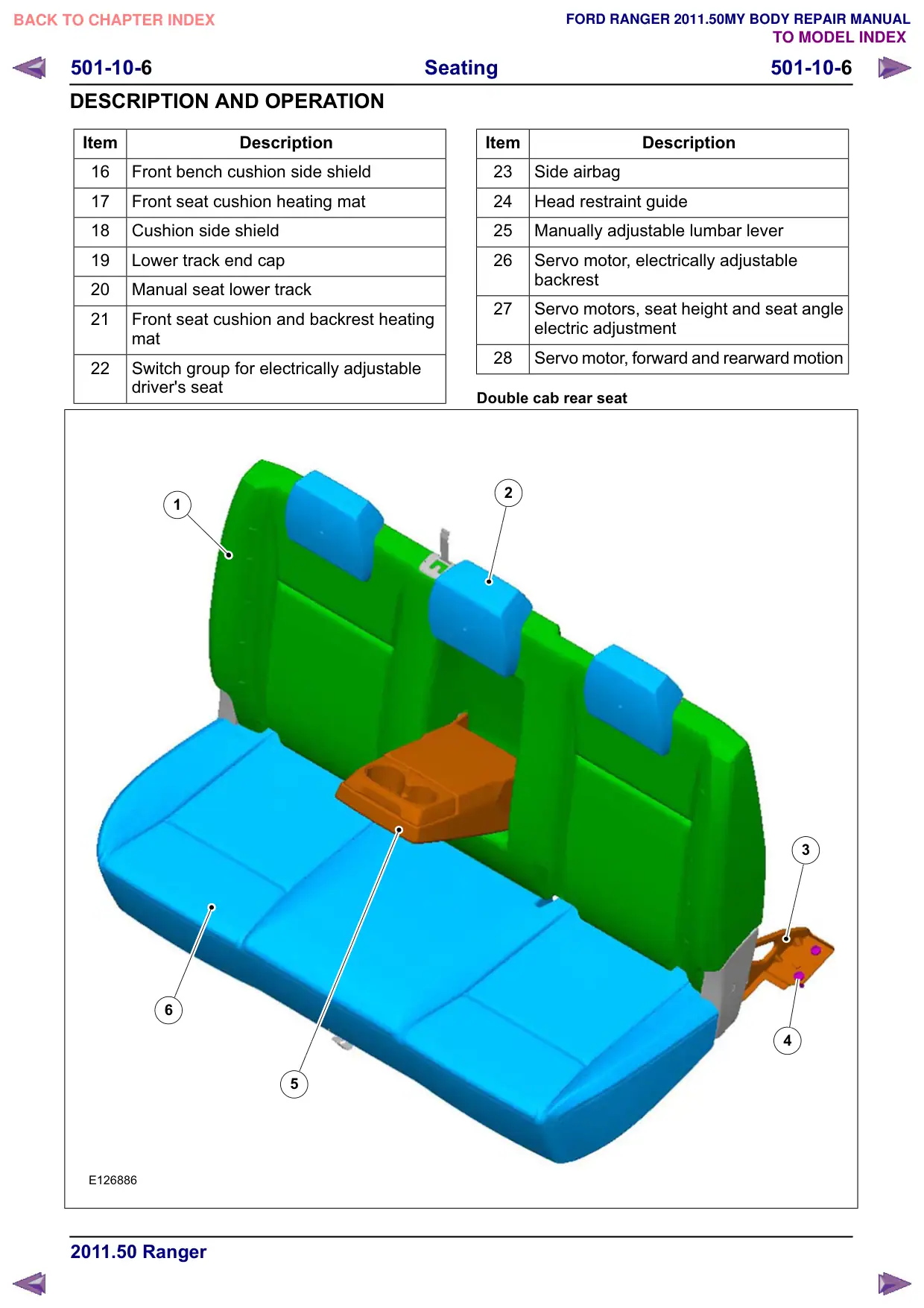

501-10-6 Seating 501-10-6 DESCRIPTION AND OPERATION Item Description 16 Front bench cushion side shield 17 Front seat cushion heating mat 18 Cushion side shield 19 Lower track end cap 20 Manual seat lower track 21 Front seat cushion and backrest heating mat 22 Switch group for electrically adjustable driver's seat 1 6 5 E126886 Item Description 23 Side airbag 24 Head restraint guide 25 Manually adjustable lumbar lever 26 Servo motor, electrically adjustable EDFNUHVW 27 Servo motors, seat height and seat angle electric adjustment 28 Servo motor, forward and rearward motion Double cab rear seat 2 3 4

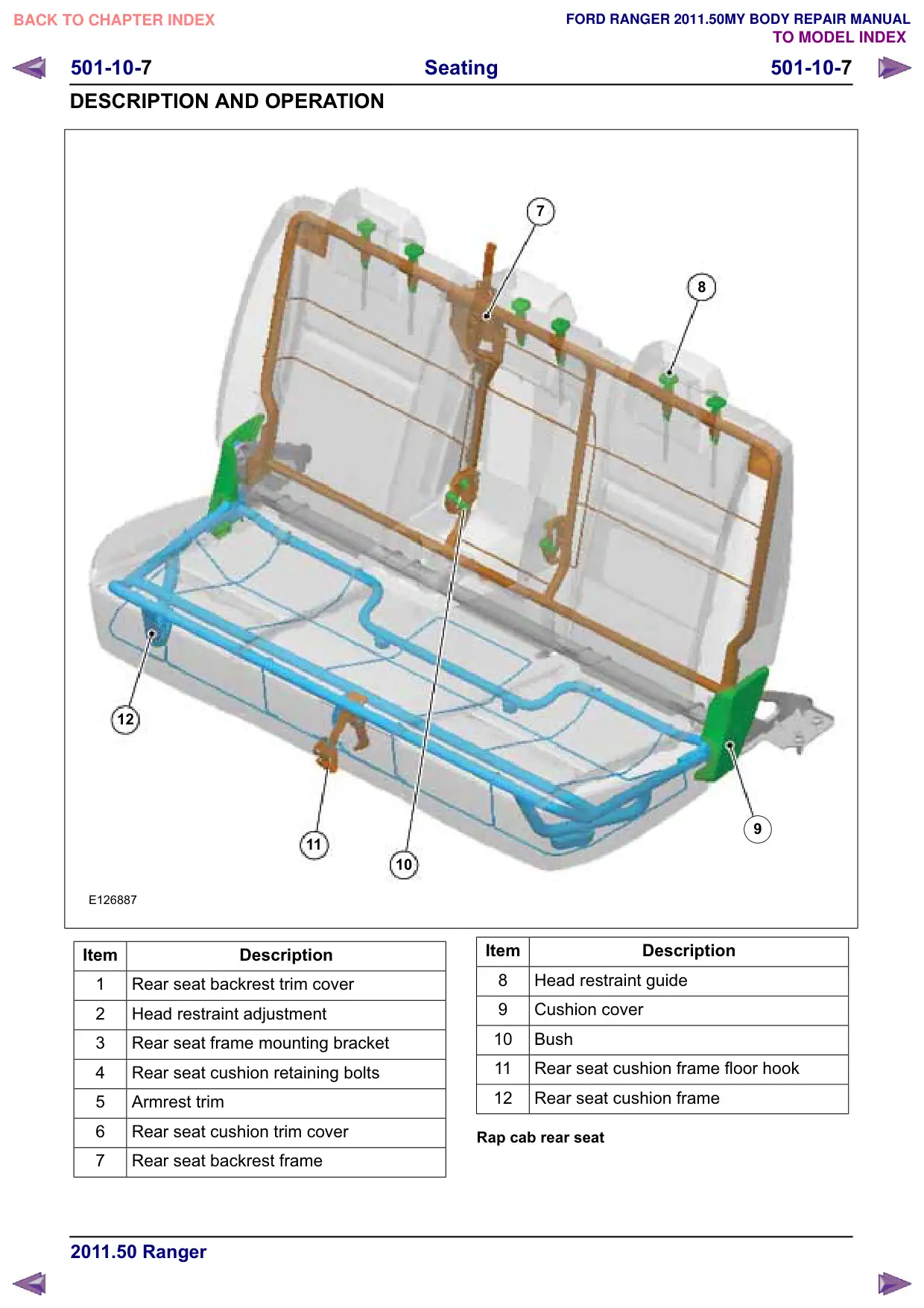

501-10-7 Seating 501-10-7 DESCRIPTION AND OPERATION 12 11 10 E126887 Item Description 1 Rear seat backrest trim cover 2 Head restraint adjustment 3 Rear seat frame mounting bracket 4 Rear seat cushion retaining bolts 5 Armrest trim 6 Rear seat cushion trim cover 7 Rear seat backrest frame 7 8 Item Description 8 Head restraint guide Cushion cover 10 Bush 11 Rear seat cushion frame floor hook 12 Rear seat cushion frame Rap cab rear seat

501-10-8 Seating 501-10-8 DESCRIPTION AND OPERATION 4 3 E127046 Item Description 1 Rear seat backrest 2 Back rest upper bolts 3 Rear seat cushion trim 4 Rear seat cushion trim 1 2

501-10- Seating 501-10- REMOVAL AND INSTALLATION Front Bench Seat Removal NOTE: Removal steps in this procedure may contain installation details. 1. E134124 2. 1. Torque: 48 Nm 2. Torque: 30 Nm 2 1 E126790 3. 1. Torque: 48 Nm 2. Torque: 30 Nm 2 1 E126791 4. E126792 Installation 1. To install, reverse the removal procedure.

501-10-10 Seating 501-10-10 REMOVAL AND INSTALLATION Front Seat(40 100 0; 40 100 4; 40 101 0) Removal NOTE: Removal steps in this procedure may contain installation details. All vehicles 1. WARNINGS: The supplemental restraint system (SRS) is active for a certain length of time after the power supply has been disconnected. Wait for a minimum of 3 minutes before disconnecting or removing any SRS components. Make sure that the vehicle electrical system is fully depowered and no other power source is connected. Refer to: Supplemental Restraint System (SRS) Health and Safety Precautions (100-00 General Information, Description and Operation). 2. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures). 3. 2. Torque: 48 Nm 2 x2 1 E126786 4. 2. Torque: 48 Nm x2 1 2 E126788 Single cab 5. 2. Torque: 30 Nm x2 1 2 E126788

501-10-11 Seating 501-10-11 REMOVAL AND INSTALLATION All vehicles 6. Disconnect the heated seat and side air bag module electrical connectors (if equipped). 2 1 3 E126789 Installation 1. To install, reverse the removal procedure.

501-10-12 Seating 501-10-12 REMOVAL AND INSTALLATION Front Seat Backrest Removal NOTE: Removal steps in this procedure may contain installation details. 1. Refer to: Front Seat (501-10 Seating, Removal and Installation). 2. 2 1 E135367 3. 2 1 3 E127350 4. Torque: 38 Nm 1 2 E127351 5. E103718 6. x2 E135433

501-10-13 Seating 501-10-13 REMOVAL AND INSTALLATION 7. E135471 8. Torque: 45 Nm x4 E135472 Installation 1. To install, reverse the removal procedure.

501-10-14 Seating 501-10-14 REMOVAL AND INSTALLATION Rear Seat Removal NOTE: Removal steps in this procedure may contain installation details. Double cab WARNINGS: The supplemental restraint system (SRS) is active for a certain length of time after the power supply has been disconnected. Wait for a minimum of 3 minutes before disconnecting or removing any SRS components. Make sure that the vehicle electrical system is fully depowered and no other power source is connected. 1. E127044 2. Torque: 48 Nm E127038 3. Torque: 48 Nm E127039 4. 3 2 1 E134130 5. 1 2 4 5 3 E127040

501-10-15 Seating 501-10-15 REMOVAL AND INSTALLATION Stretch cab 6. 2 2 1 1 E127041 7. x11 x2 E127042 8. Torque: 48 Nm x2 E127043 Installation 1. To install, reverse the removal procedure.

501-10-16 Seating 501-10-16 REMOVAL AND INSTALLATION Rear Seat Backrest Removal NOTE: Removal steps in this procedure may contain installation details. 1. Refer to: Rear Seat (501-10 Seating, Removal and Installation). 2. On both sides. x2 x2 E135641 3. On both sides. Torque: 25 Nm x2 E135642 Installation 1. To install, reverse the removal procedure.

501-10-17 Seating 501-10-17 DISASSEMBLY AND ASSEMBLY Front Bench Seat Backrest Disassembly NOTE: Disassembly steps in this procedure may contain assembly details. 1. E127353 2. E127387 3. Torque: 35 Nm 2 1 x4 E127388 4. 2 2 1 1 3 E127649 5. E135547

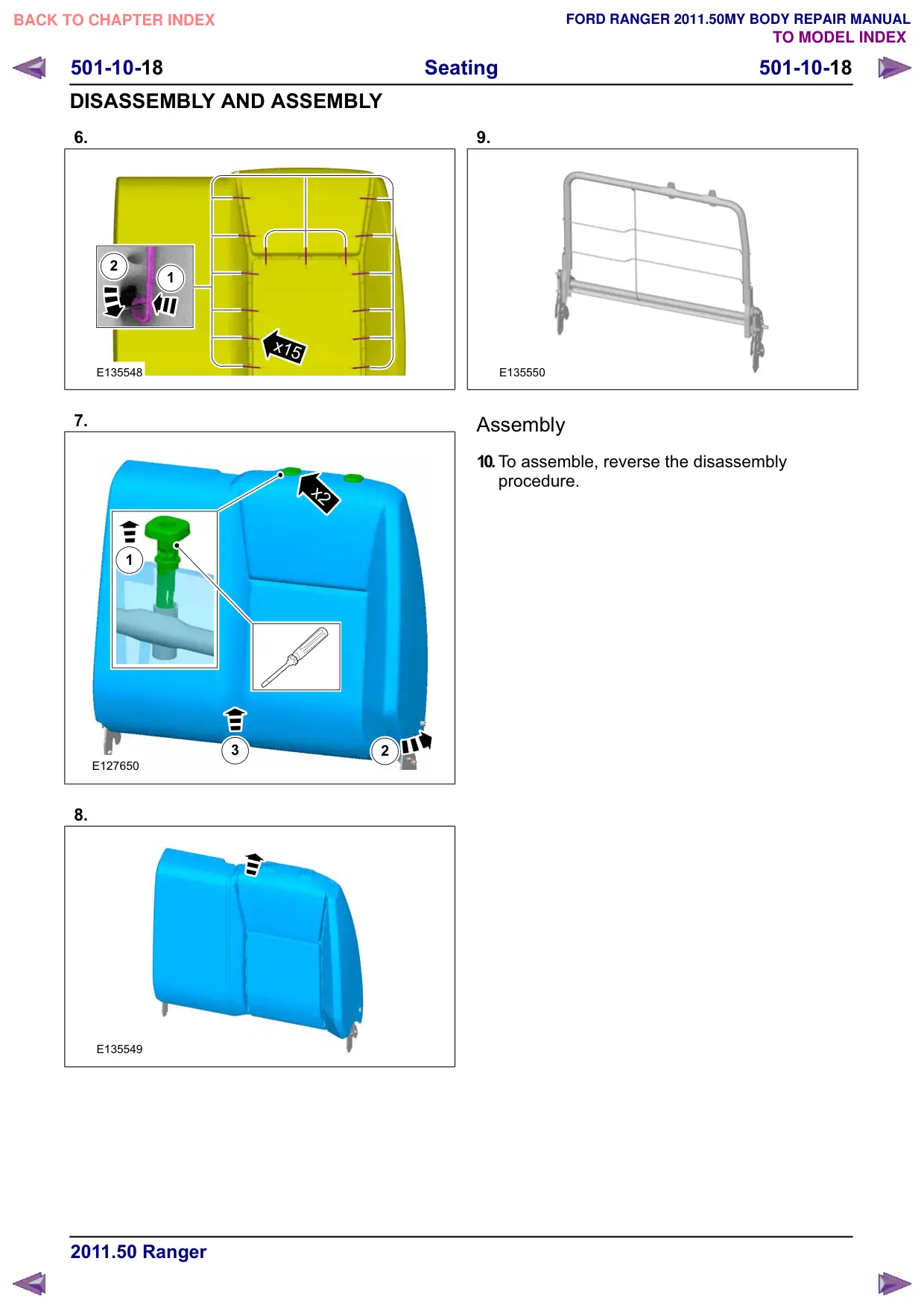

501-10-18 Seating 501-10-18 DISASSEMBLY AND ASSEMBLY 6. 2 1 x15 E135548 7. x2 1 3 2 E127650 8. E135549 9. E135550 Assembly 10.To assemble, reverse the disassembly procedure.

501-10-19 Seating 501-10-19 DISASSEMBLY AND ASSEMBLY Front Bench Seat Cushion Disassembly NOTE: Disassembly steps in this procedure may contain assembly details. 1. E127353 2. E127387 3. Torque: 35 Nm 2 1 x4 E127388 4. E135554 5. 2 1 x12 E135551 6. x17 2 1 E135580

501-10-20 Seating 501-10-20 DISASSEMBLY AND ASSEMBLY 7. E127681 8. E135552 9. E135553 Assembly 10.To assemble, reverse the disassembly procedure.

501-10-21 Seating 501-10-21 DISASSEMBLY AND ASSEMBLY Front Seat Cushion Disassembly NOTE: Disassembly steps in this procedure may contain assembly details. 1. Refer to: Front Seat Backrest (501-10 Seating, Removal and Installation). 2. E135475 3. E135519 4. E135581 5. x5 E135504 6. 2 1 x11 E135505 7. 1 2 E135506

501-10-22 Seating 501-10-22 DISASSEMBLY AND ASSEMBLY 8. E135507 Assembly 9. To assemble, reverse the disassembly procedure.

501-10-23 Seating 501-10-23 DISASSEMBLY AND ASSEMBLY Front Seat Backrest Disassembly NOTE: Disassembly steps in this procedure may contain assembly details. 1. Refer to: Front Seat Backrest (501-10 Seating, Removal and Installation). 2. 2 1 1 3 E127634 3. E135434 4. x11 2 1 E135435 5. 2 1 x6 E135436

501-10-24 Seating 501-10-24 DISASSEMBLY AND ASSEMBLY 6. 2 3 1 E127635 7. E135473 8. 2 1 E135474 9. Torque: 5 Nm 3 1 2 4 x2 3 E127636 10.Torque: 3 Nm

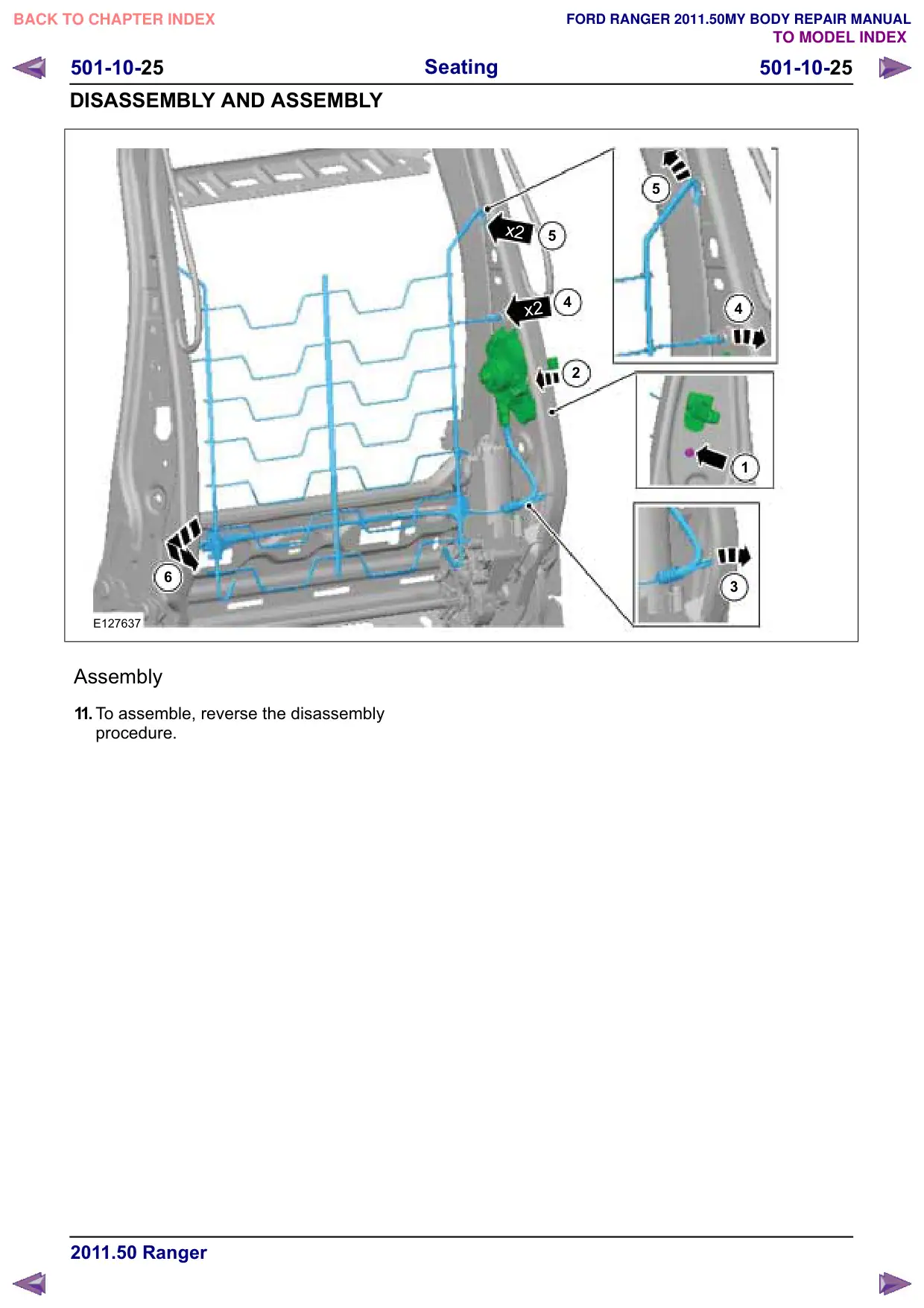

501-10-25 Seating 501-10-25 DISASSEMBLY AND ASSEMBLY 6 E127637 Assembly 11. To assemble, reverse the disassembly procedure. 5 x2 5 4 x2 4 2 1 3

501-10-26 Seating 501-10-26 DISASSEMBLY AND ASSEMBLY Rear Seat Backrest Disassembly NOTE: Disassembly steps in this procedure may contain assembly details. E127677 1. Refer to: Rear Seat Backrest (501-10 Seating, Removal and Installation). 2. Torque: 25 Nm x2 E135663 3.

501-10-27 Seating 501-10-27 DISASSEMBLY AND ASSEMBLY 4. Torque: 10 Nm x2 E135665 5. Release the armrest pivot pins on both sides. E135664 6. x3 E135666 7.

501-10-28 Seating 501-10-28 DISASSEMBLY AND ASSEMBLY 2 1 x17 E135667 8. 2 x15 E135668 x15 1

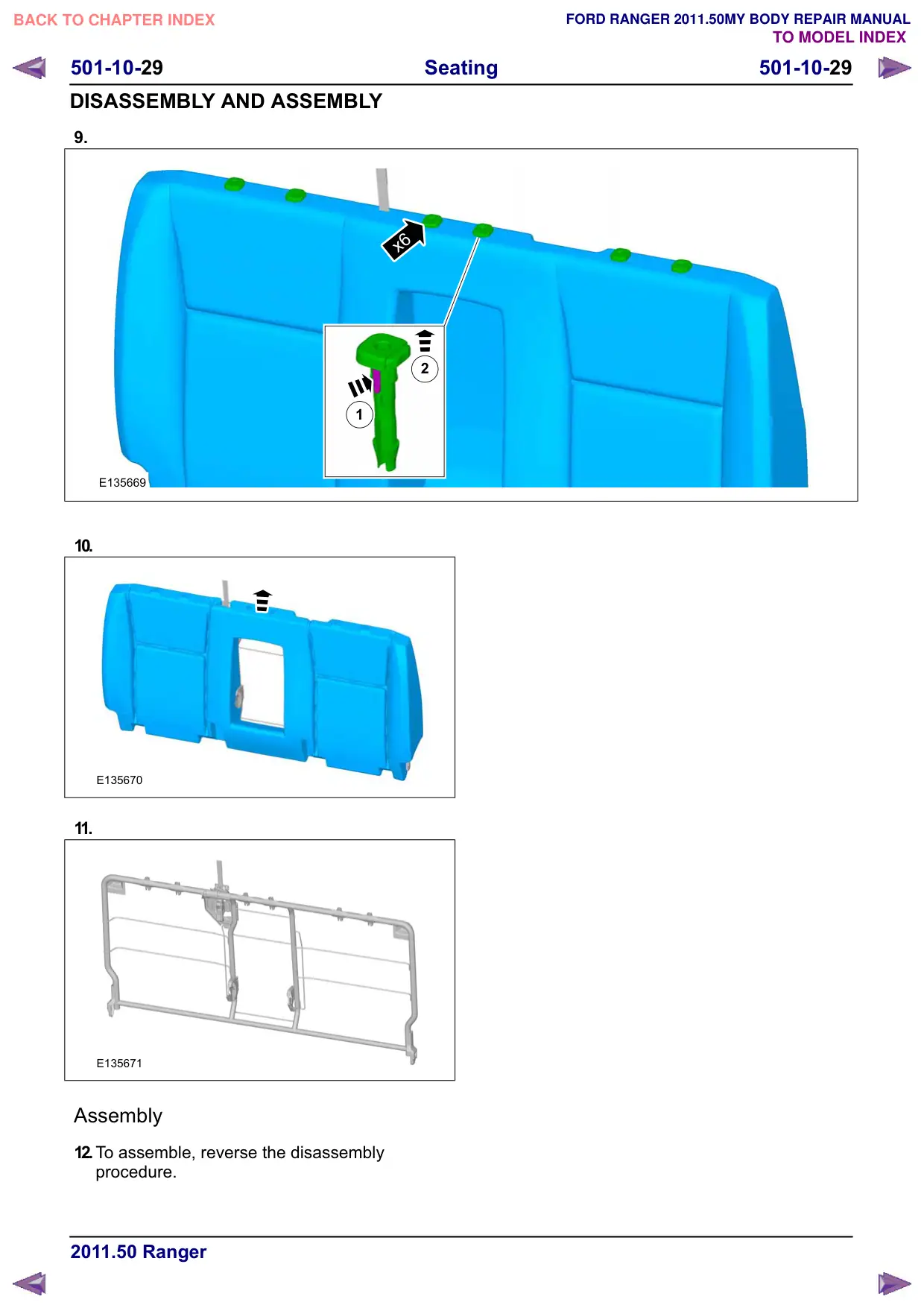

501-10-29 Seating 501-10-29 DISASSEMBLY AND ASSEMBLY 9. x6 2 1 E135669 10. E135670 11. E135671 Assembly 12.To assemble, reverse the disassembly procedure.

501-10-30 Seating 501-10-30 DISASSEMBLY AND ASSEMBLY Rear Seat Cushion Disassembly NOTE: Disassembly steps in this procedure may contain assembly details. 1. Torque: 25 Nm x2 E135677 E135679 2. 1. Torque: 10 Nm 2. Torque: 8 Nm x2 1 x2 x2 2 1 E135684 3. x3 E135678 4. 2 1 x11

501-10-31 Seating 501-10-31 DISASSEMBLY AND ASSEMBLY 5. x11 2 E135680 6. E135681 7. E135682 x11 1 8. E135683 Assembly 9. To assemble, reverse the disassembly procedure.
