Carroceria · página 70 de 566 · 501-10-2 · parte 1 de 7

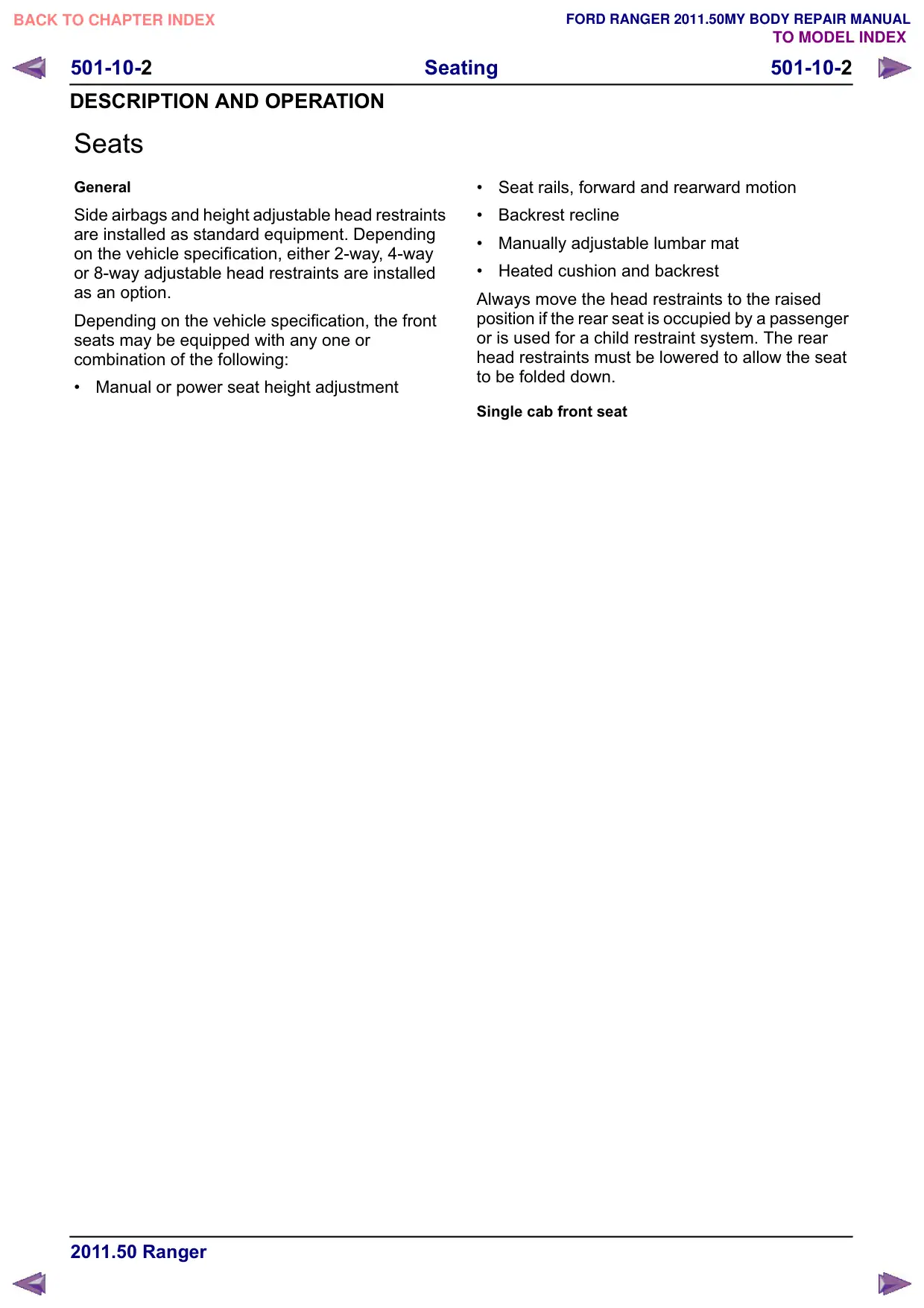

Página 70 do Manual de Carroceria: Bancos
Explicar no Gemini Ampliar imagem Traduzir texto
Texto da página

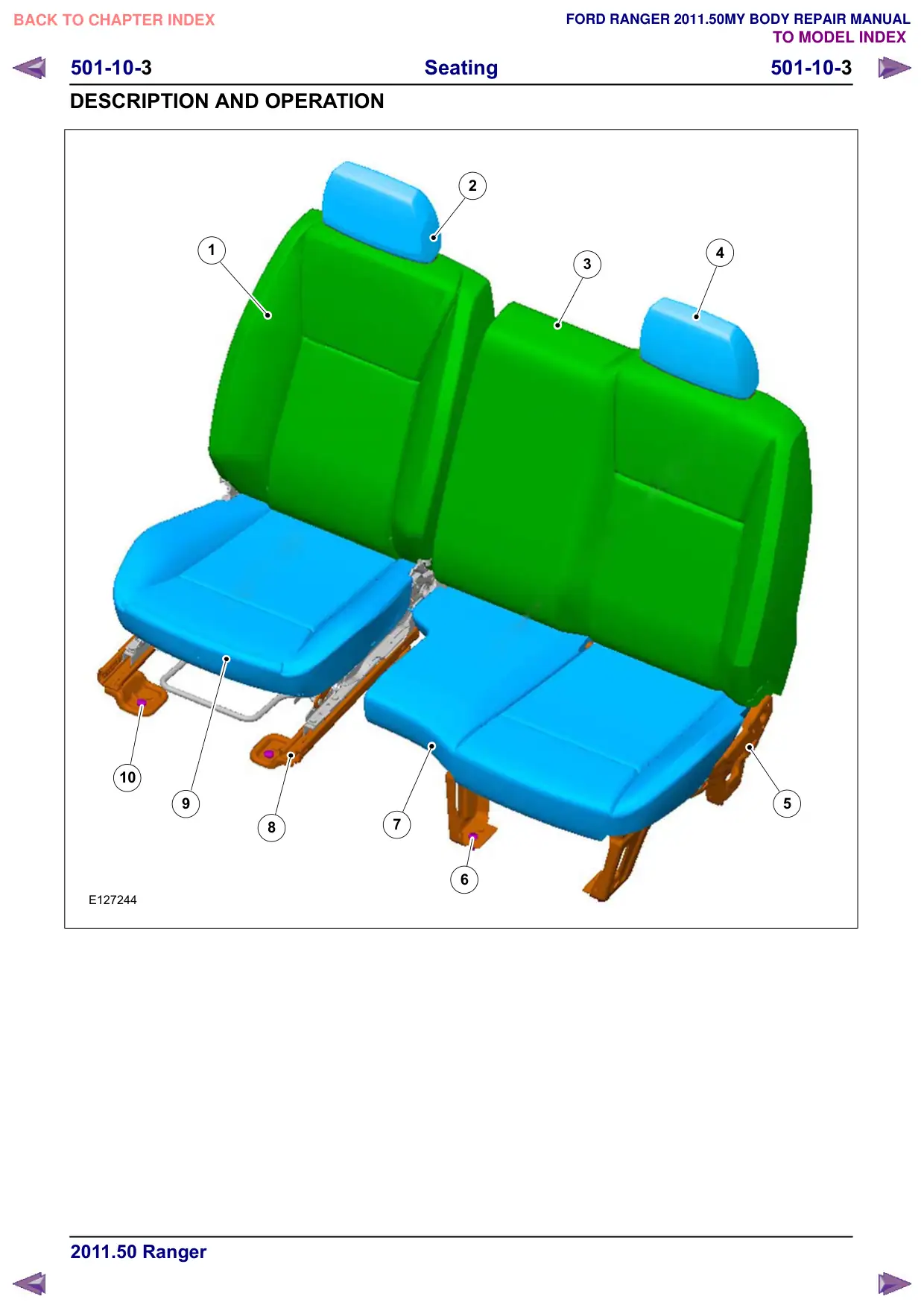

501-10-2 Seating 501-10-2 DESCRIPTION AND OPERATION Seats General Side airbags and height adjustable head restraints are installed as standard equipment. Depending on the vehicle specification, either 2-way, 4-way or 8-way adjustable head restraints are installed as an option. Depending on the vehicle specification, the front seats may be equipped with any one or combination of the following: ‡ Manual or power seat height adjustment ‡ Seat rails, forward and rearward motion ‡ Backrest recline ‡ Manually adjustable lumbar mat ‡ Heated cushion and backrest Always move the head restraints to the raised position if the rear seat is occupied by a passenger or is used for a child restraint system. The rear head restraints must be lowered to allow the seat to be folded down. Single cab front seat
