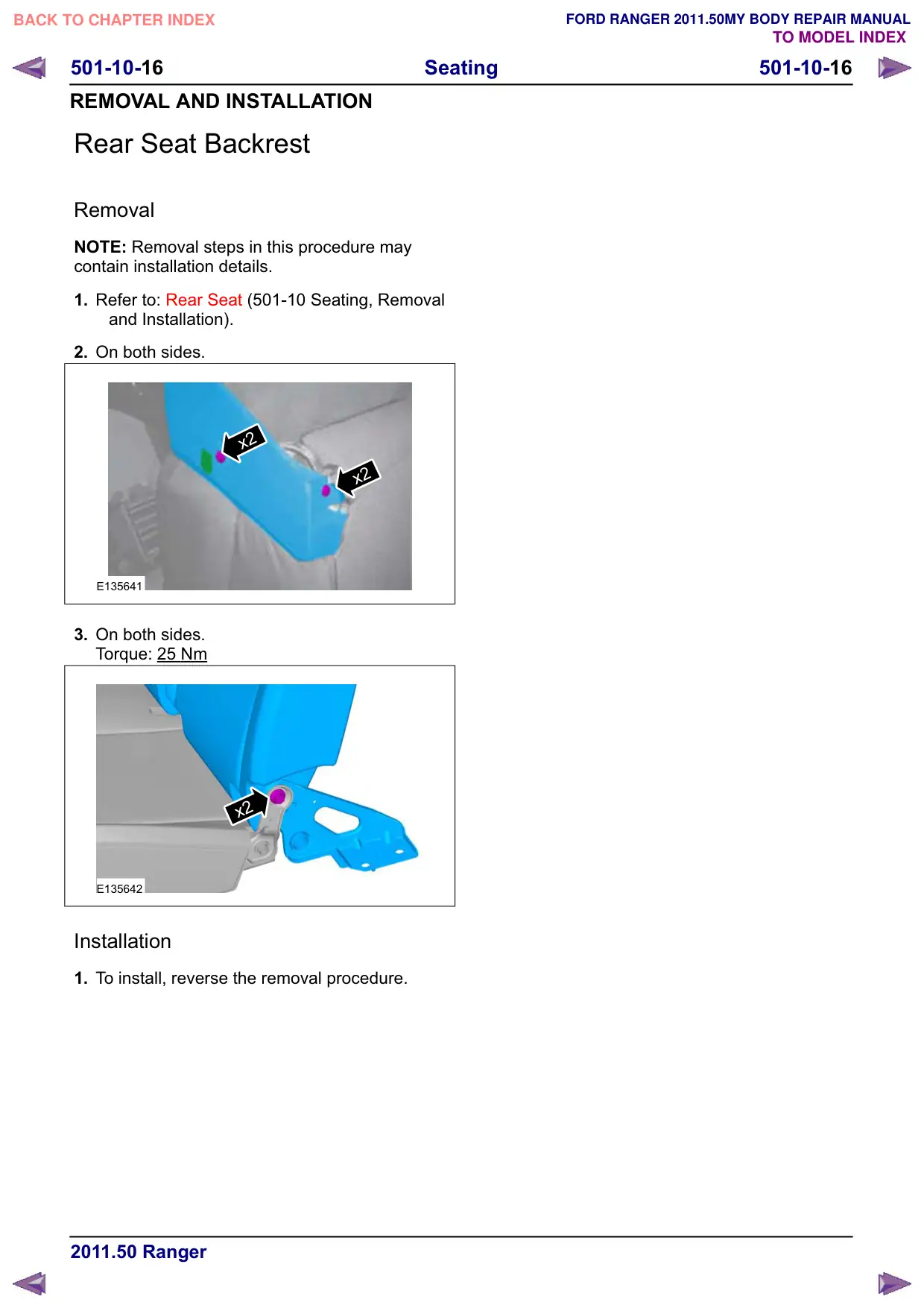

501-10-16 Seating 501-10-16 REMOVAL AND INSTALLATION Rear Seat Backrest Removal NOTE: Removal steps in this procedure may contain installation details. 1. Refer to: Rear Seat (501-10 Seating, Removal and Installation). 2. On both sides. x2 x2 E135641 3. On both sides. Torque: 25 Nm x2 E135642 Installation 1. To install, reverse the removal procedure.
