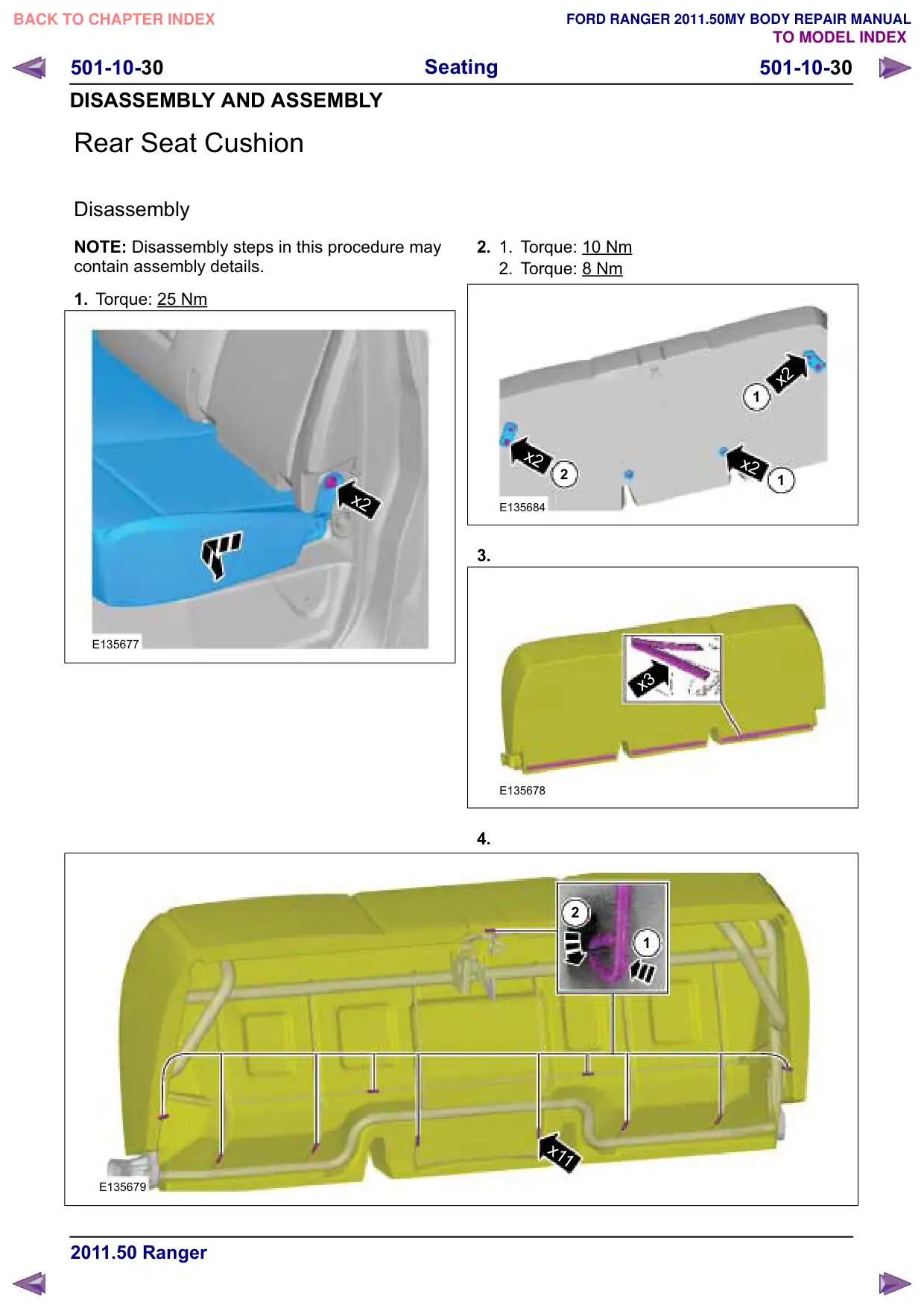

Assento do banco traseiro
Rear Seat Cushion
Texto da página
Link desta página: https://ranger.mbrace.com.br/carroceria/98
Imagem: https://ranger.mbrace.com.br/img/carroceria/98.webp
501-10-30
Seating
501-10-30
DISASSEMBLY AND ASSEMBLY

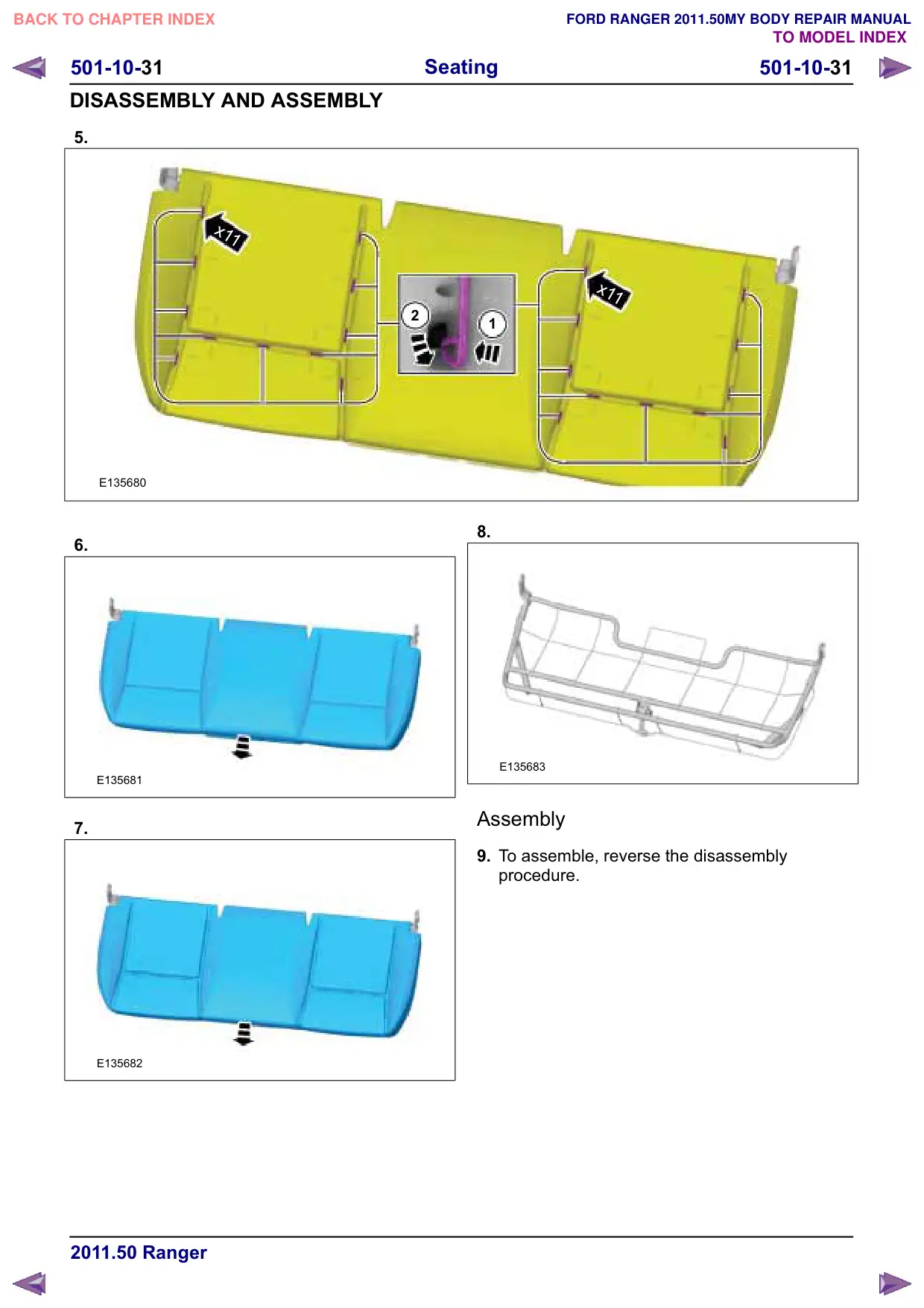

Rear Seat Cushion
Disassembly
NOTE: Disassembly steps in this procedure may
contain assembly details.
1. Torque: 25 Nm
x2
E135677
E135679
2.
1.
Torque: 10 Nm
2. Torque: 8 Nm
x2
1
x2
x2
2
1
E135684
3.
x3
E135678
4.
2
1
x11
