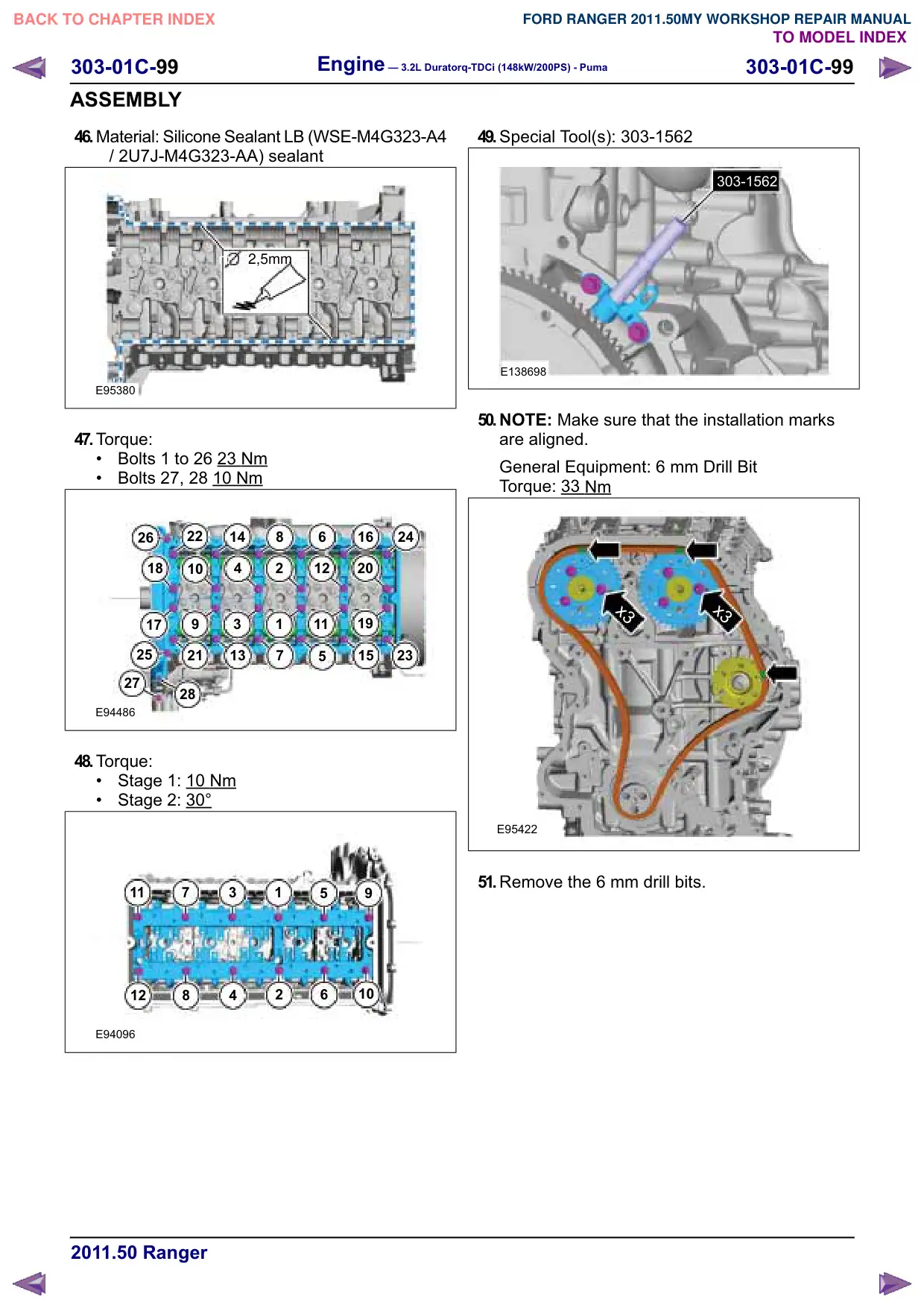

303-01C- Engine – 3.2L Duratorq-TDCi (148kW/200PS) - Puma 303-01C- ASSEMBLY 46.Material: Silicone Sealant LB (WSE-M4G323-A4 / 2U7J-M4G323-AA) sealant m 2 2,5mm E95380 47.Torque: ‡ Bolts 1 to 26 23 Nm ‡ Bolts 27, 28 10 Nm 26 22 14 8 6 16 24 18 10 4 2 12 20 19 17 3 1 11 25 21 13 7 5 15 23 27 28 E94486 48.Torque: ‡ Stage 1: 10 Nm ‡ Stage 2: 30° 11 7 3 1 5 12 8 4 2 6 10 E94096 49.Special Tool(s): 303-1562 303-1562 E138698 50.NOTE: Make sure that the installation marks are aligned. General Equipment: 6 mm Drill Bit Torque: 33 Nm x3 x3 E95422 51.Remove the 6 mm drill bits.
