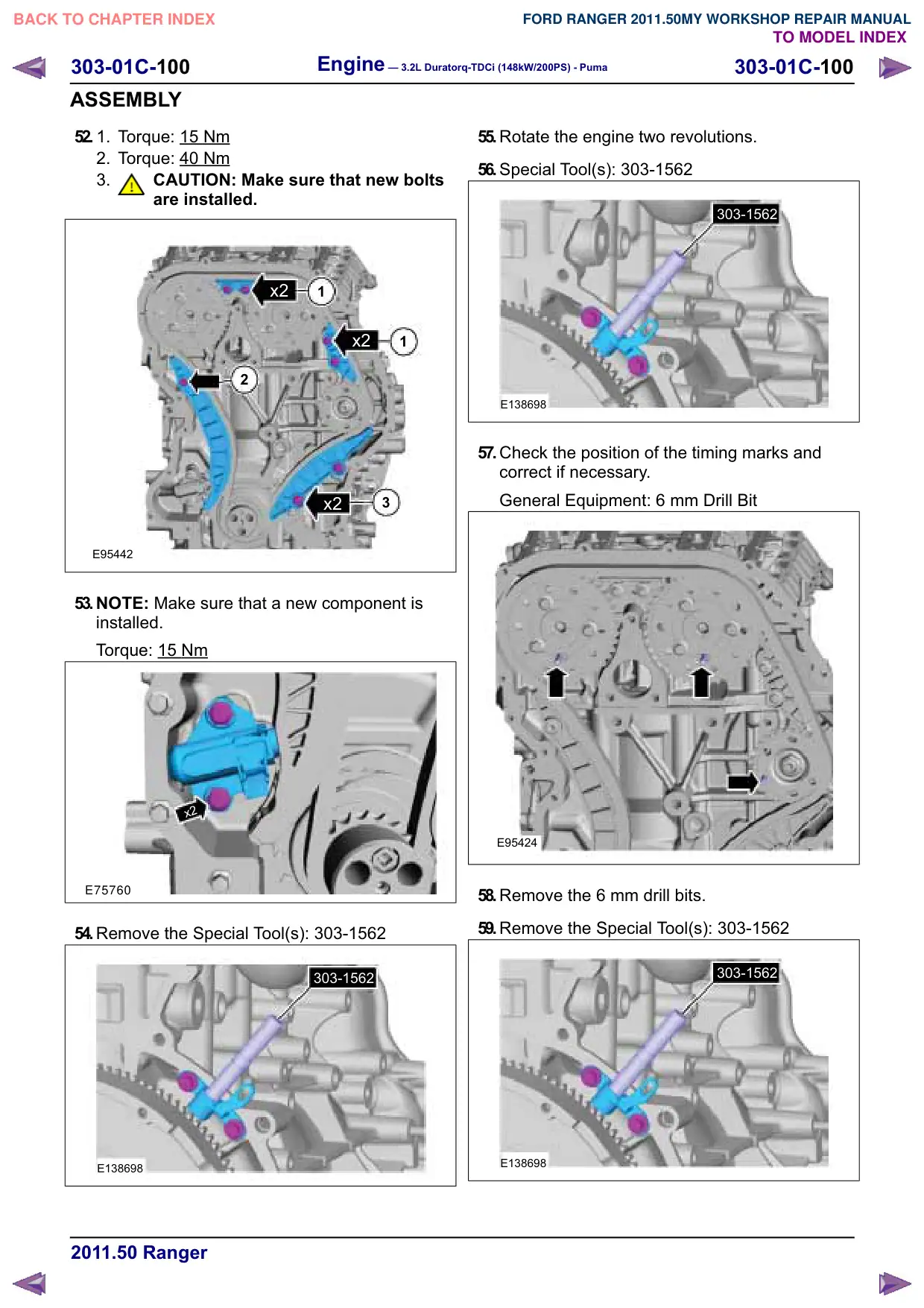

303-01C-100 Engine – 3.2L Duratorq-TDCi (148kW/200PS) - Puma 303-01C-100 ASSEMBLY 52. 1. Torque: 15 Nm 2. Torque: 40 Nm 3. CAUTION: Make sure that new bolts are installed. x2 1 x2 1 2 x2 3 E95442 53.NOTE: Make sure that a new component is installed. Torque: 15 Nm x2 E75760 54.Remove the Special Tool(s): 303-1562 303-1562 E138698 55.Rotate the engine two revolutions. 56.Special Tool(s): 303-1562 303-1562 E138698 57.Check the position of the timing marks and correct if necessary. General Equipment: 6 mm Drill Bit E95424 58.Remove the 6 mm drill bits. 59.Remove the Special Tool(s): 303-1562 303-1562 E138698
