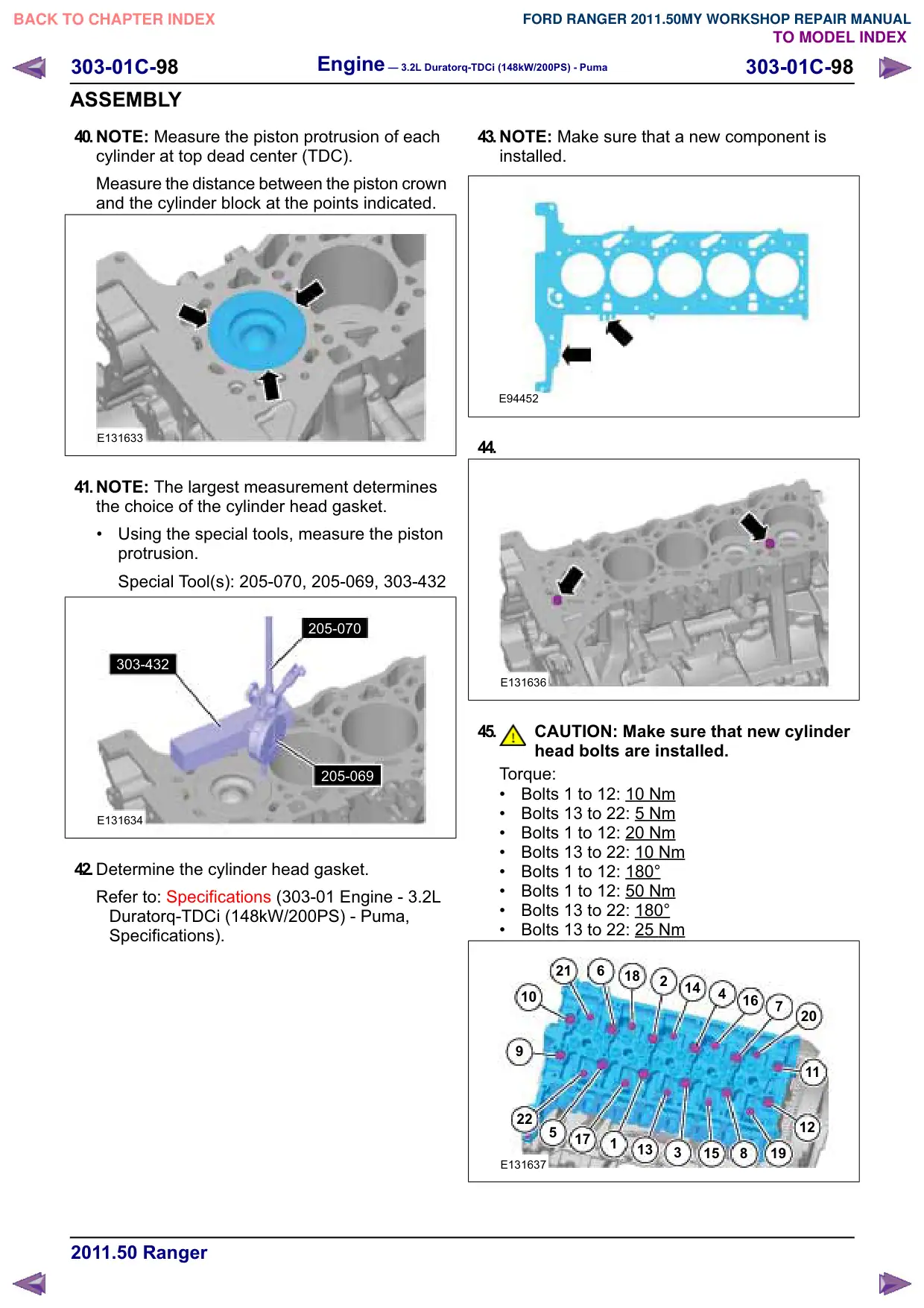

303-01C-98 Engine – 3.2L Duratorq-TDCi (148kW/200PS) - Puma 303-01C-98 ASSEMBLY 40.NOTE: Measure the piston protrusion of each cylinder at top dead center (TDC). Measure the distance between the piston crown and the cylinder block at the points indicated. E131633 41.NOTE: The largest measurement determines the choice of the cylinder head gasket. ‡ Using the special tools, measure the piston protrusion. Special Tool(s): 205-070, 205-069, 303-432 205-070 303-432 205-069 E131634 42.Determine the cylinder head gasket. Refer to: Specifications (303-01 Engine - 3.2L Duratorq-TDCi (148kW/200PS) - Puma, Specifications). 43.NOTE: Make sure that a new component is installed. E94452 44. E131636 45. CAUTION: Make sure that new cylinder head bolts are installed. Torque: ‡ Bolts 1 to 12: 10 Nm ‡ Bolts 13 to 22: 5 Nm ‡ Bolts 1 to 12: 20 Nm ‡ Bolts 13 to 22: 10 Nm ‡ Bolts 1 to 12: 180° ‡ Bolts 1 to 12: 50 Nm ‡ Bolts 13 to 22: 180° ‡ Bolts 13 to 22: 25 Nm 21 6 18 2 14 4 10 16 7 20 11 22 12 5 17 1 13 3 15 8 19 E131637
