Unidade de controle hidráulico (HCU) – RHD 4WD/RHD RWD

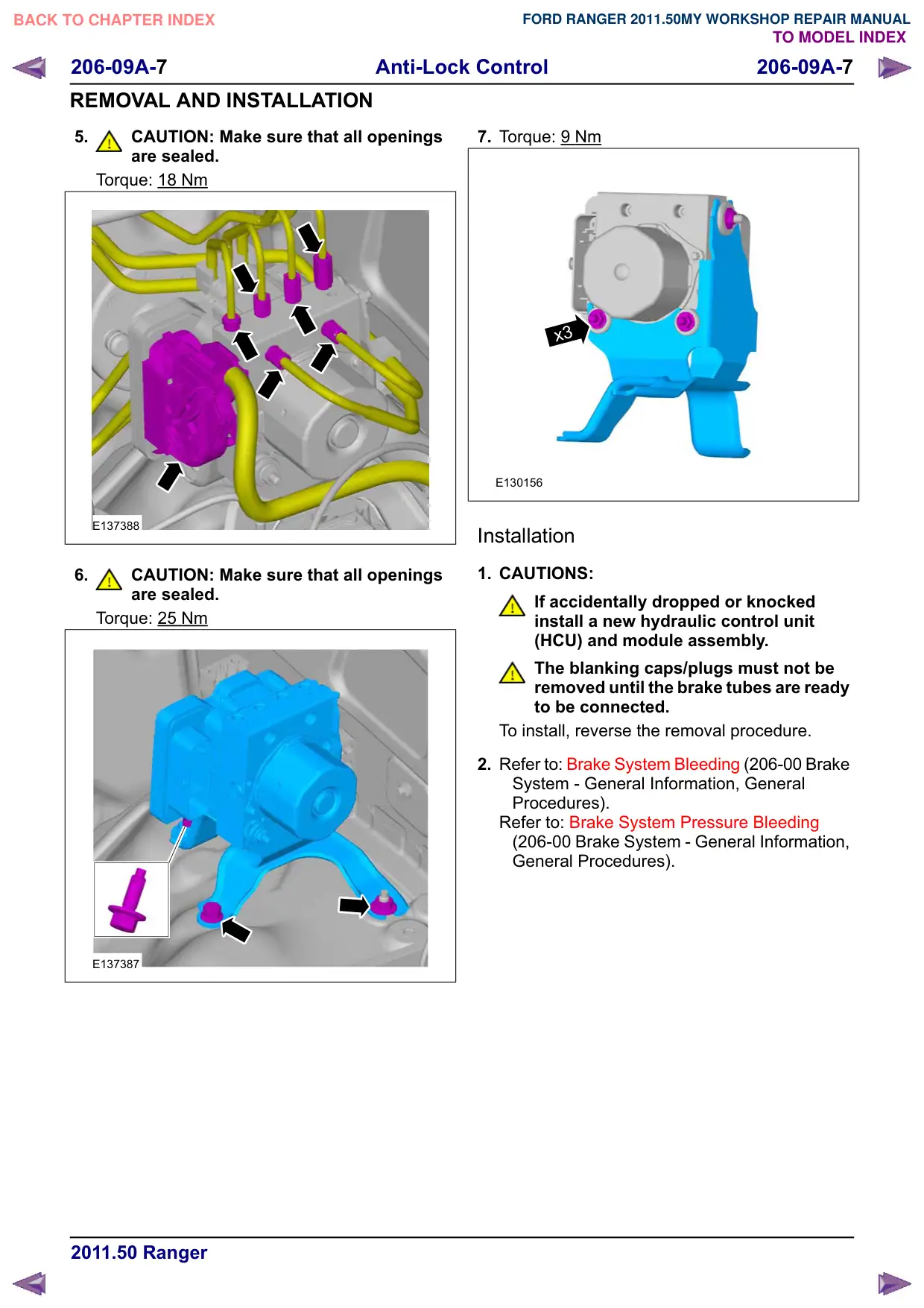

Anti-Lock Control 206-09A-7 206-09A-7 REMOVAL AND INSTALLATION 5. CAUTION: Make sure that all openings are sealed. Torque: 18 Nm E137388 6. CAUTION: Make sure that all openings are sealed. Torque: 25 Nm E137387 7. Torque: 9 Nm x3 E130156 Installation 1. CAUTIONS: If accidentally dropped or knocked install a new hydraulic control unit (HCU) and module assembly. The blanking caps/plugs must not be removed until the brake tubes are ready to be connected. To install, reverse the removal procedure. 2. Refer to: Brake System Bleeding (206-00 Brake System - General Information, General Procedures). Refer to: Brake System Pressure Bleeding (206-00 Brake System - General Information, General Procedures).
