Sensor de velocidade da roda dianteira

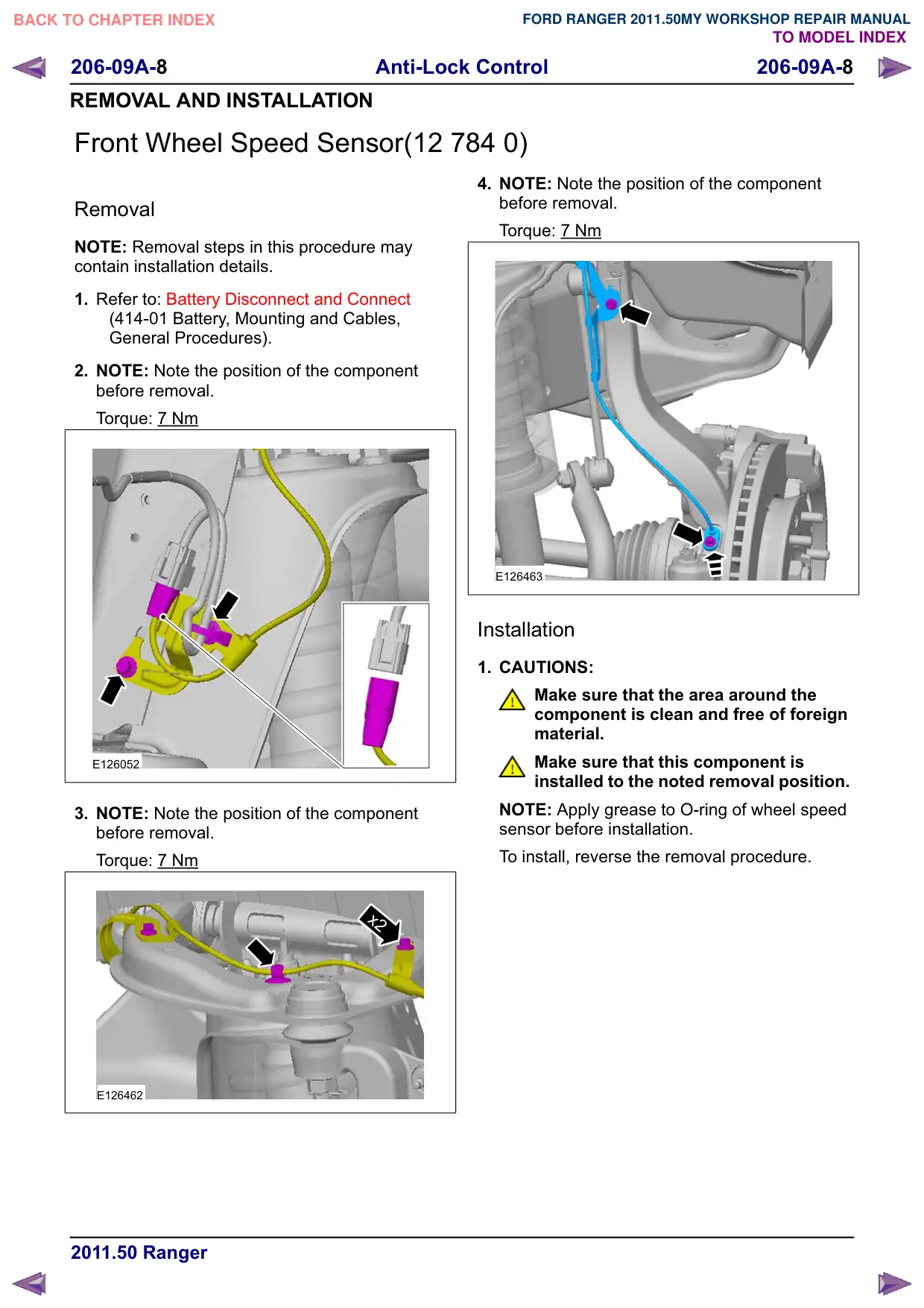

Anti-Lock Control 206-09A-8 206-09A-8 REMOVAL AND INSTALLATION Front Wheel Speed Sensor(12 784 0) Removal NOTE: Removal steps in this procedure may contain installation details. 1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures). 2. NOTE: Note the position of the component before removal. Torque: 7 Nm E126052 3. NOTE: Note the position of the component before removal. Torque: 7 Nm x2 E126462 4. NOTE: Note the position of the component before removal. Torque: 7 Nm E126463 Installation 1. CAUTIONS: Make sure that the area around the component is clean and free of foreign material. Make sure that this component is installed to the noted removal position. NOTE: Apply grease to O-ring of wheel speed sensor before installation. To install, reverse the removal procedure.
