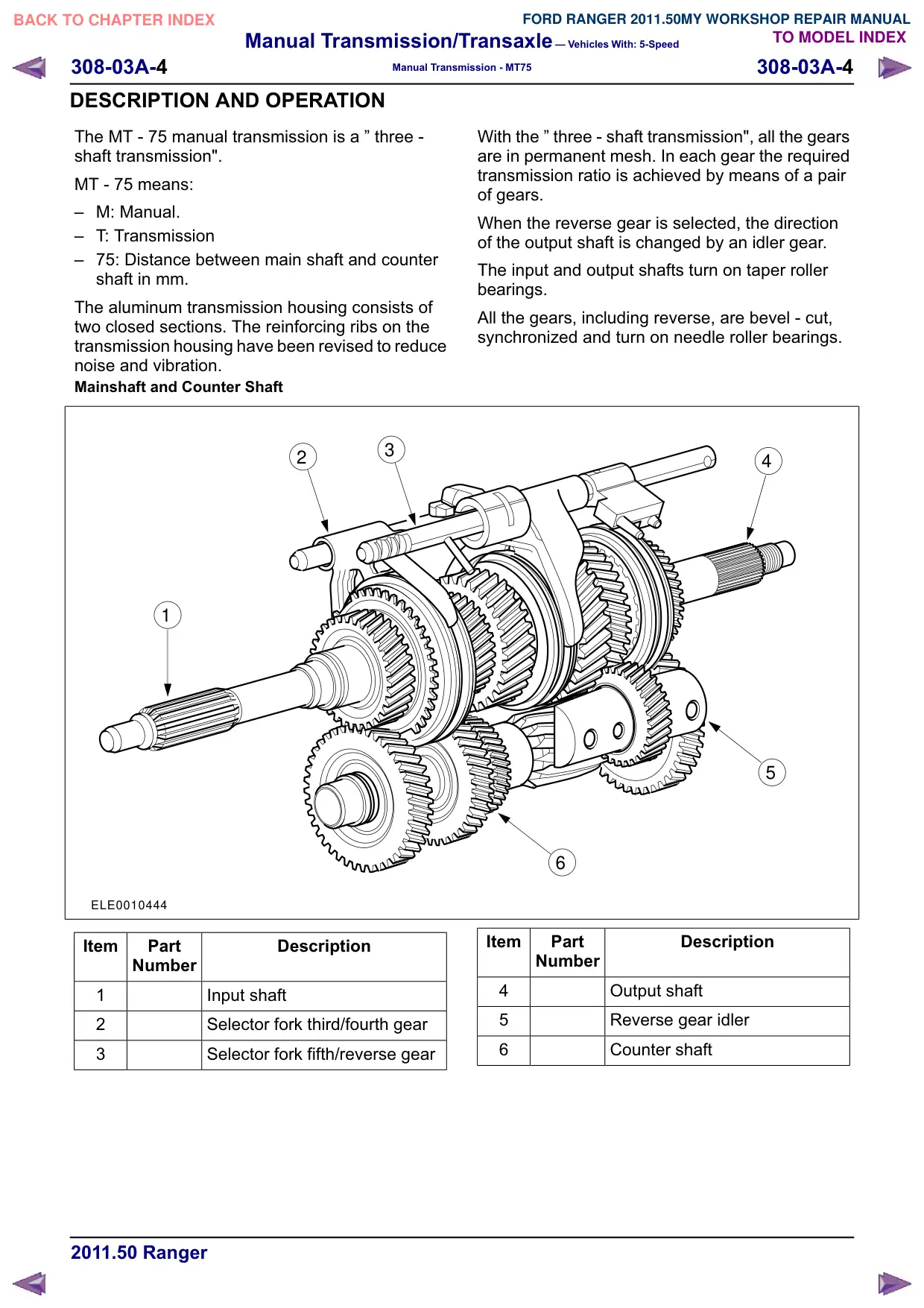

Manual Transmission/Transaxle – Vehicles With: 5-Speed
308-03A-3
308-03A-3
Manual Transmission - MT75
DESCRIPTION AND OPERATION
Manual Transmission
Transmission Overview
3
2
1
ELE0010443
Item
Part
Description
Number
1
Mainshaft – Input shaft/Output
shaft
2
Transmission front case
3
Shifter fork third/fourth gear
4
Selector shaft
4
5
6
7
8
Item
Part
Description
Number
5
Transmission rear case
6
Output drive flange
7
Reverse gear idler
8
Counter shaft
