Transmissão – 2WD

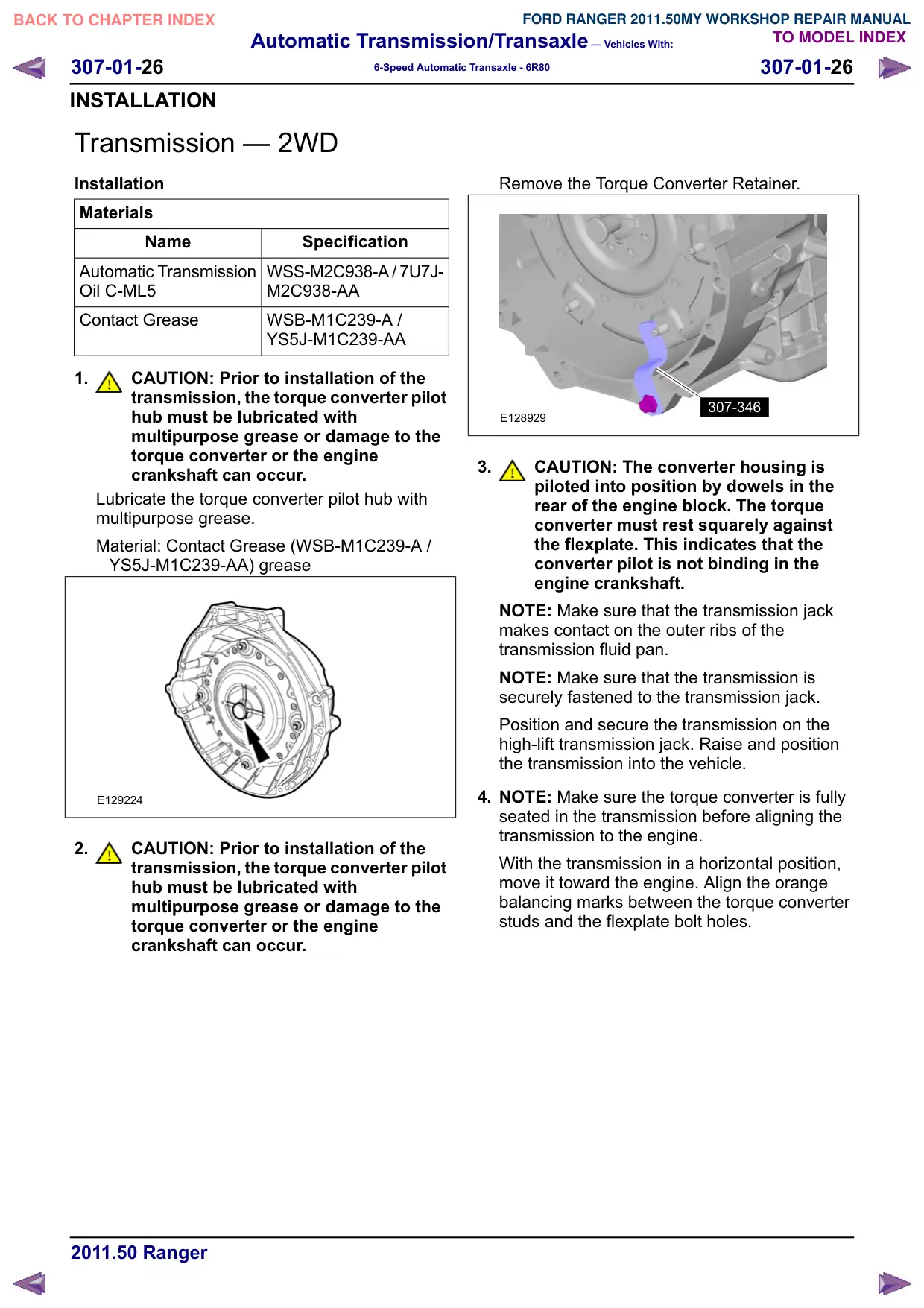

Automatic Transmission/Transaxle – Vehicles With: 307-01-26 307-01-26 6-Speed Automatic Transaxle - 6R80 INSTALLATION Transmission – 2WD Installation Materials Name Specification Automatic Transmission WSS-M2C938-A / 7U7J- Oil C-ML5 M2C938-AA Contact Grease WSB-M1C239-A / YS5J-M1C239-AA 1. CAUTION: Prior to installation of the transmission, the torque converter pilot hub must be lubricated with multipurpose grease or damage to the torque converter or the engine crankshaft can occur. Lubricate the torque converter pilot hub with multipurpose grease. Material: Contact Grease (WSB-M1C239-A / YS5J-M1C239-AA) grease E129224 2. CAUTION: Prior to installation of the transmission, the torque converter pilot hub must be lubricated with multipurpose grease or damage to the torque converter or the engine crankshaft can occur. Remove the Torque Converter Retainer. 307-346 E128929 3. CAUTION: The converter housing is piloted into position by dowels in the rear of the engine block. The torque converter must rest squarely against the flexplate. This indicates that the converter pilot is not binding in the engine crankshaft. NOTE: Make sure that the transmission jack makes contact on the outer ribs of the transmission fluid pan. NOTE: Make sure that the transmission is securely fastened to the transmission jack. Position and secure the transmission on the high-lift transmission jack. Raise and position the transmission into the vehicle. 4. NOTE: Make sure the torque converter is fully seated in the transmission before aligning the transmission to the engine. With the transmission in a horizontal position, move it toward the engine. Align the orange balancing marks between the torque converter studs and the flexplate bolt holes.
