Transmissão – 4WD

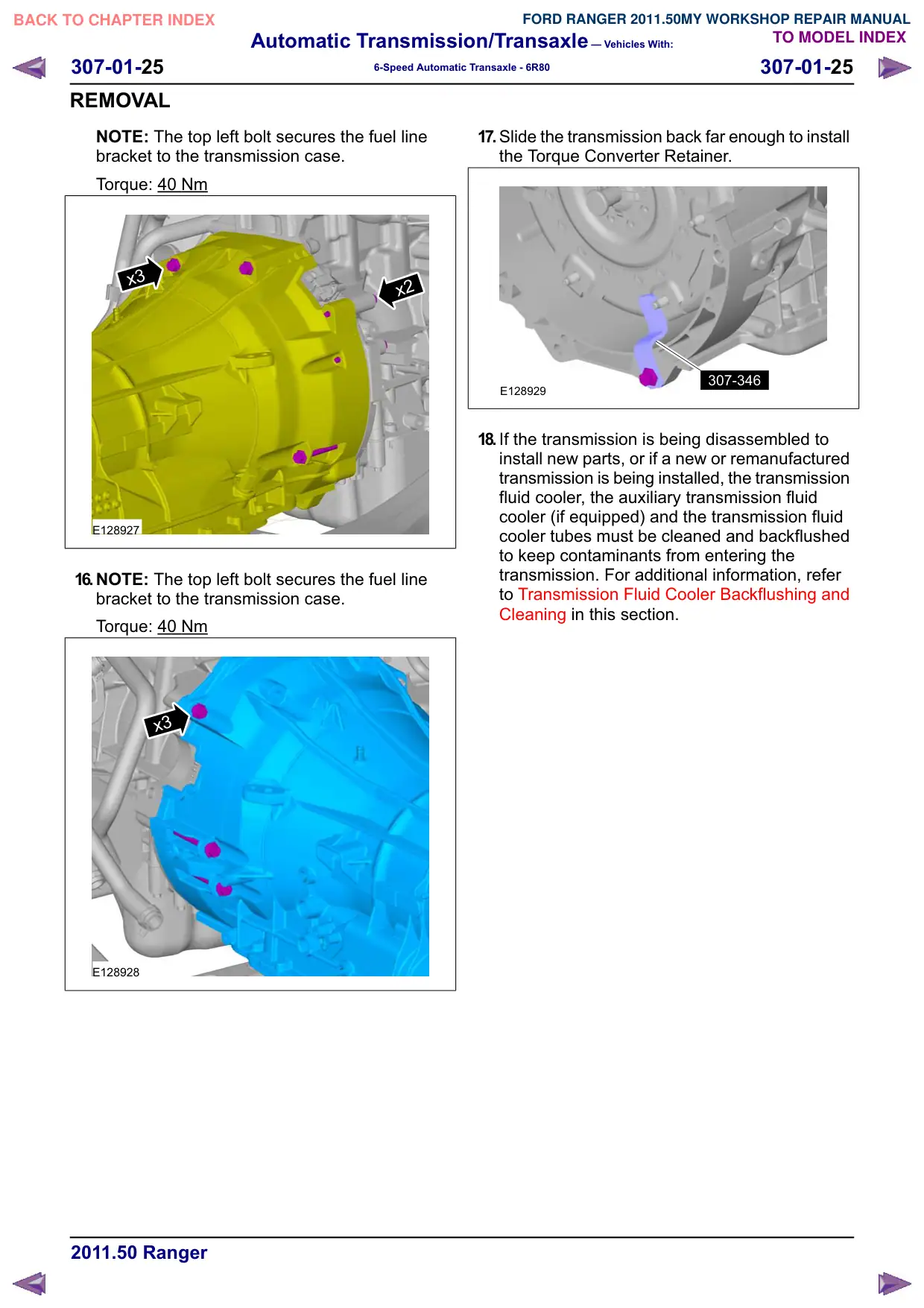

Automatic Transmission/Transaxle – Vehicles With: 307-01-25 307-01-25 6-Speed Automatic Transaxle - 6R80 REMOVAL NOTE: The top left bolt secures the fuel line bracket to the transmission case. Torque: 40 Nm x3 x2 E128927 16.NOTE: The top left bolt secures the fuel line bracket to the transmission case. Torque: 40 Nm x3 E128928 17.Slide the transmission back far enough to install the Torque Converter Retainer. 307-346 E128929 18.If the transmission is being disassembled to install new parts, or if a new or remanufactured transmission is being installed, the transmission fluid cooler, the auxiliary transmission fluid cooler (if equipped) and the transmission fluid cooler tubes must be cleaned and backflushed to keep contaminants from entering the transmission. For additional information, refer to Transmission Fluid Cooler Backflushing and Cleaning in this section.
