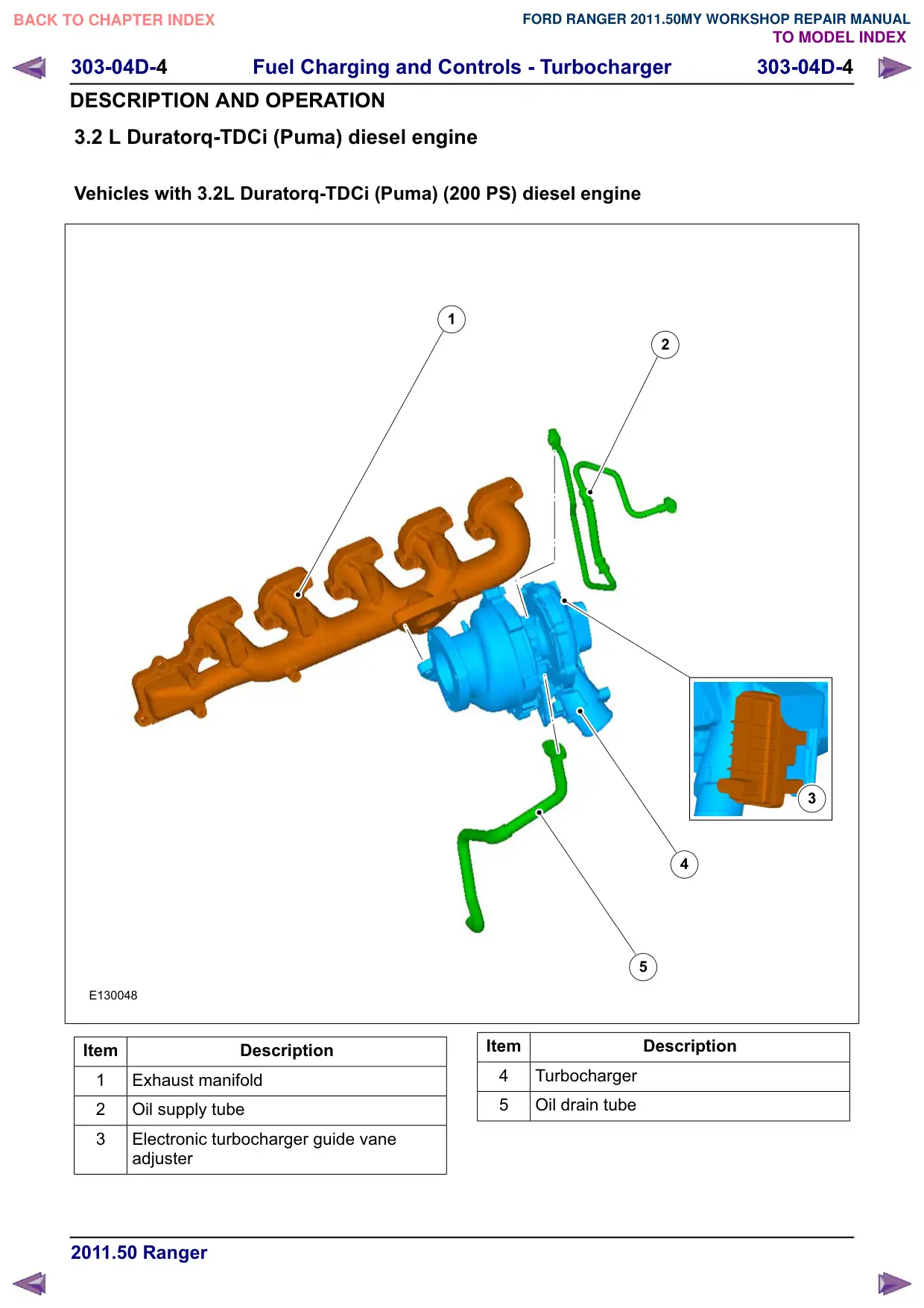

Fuel Charging and Controls - Turbocharger
303-04D-4
303-04D-4
DESCRIPTION AND OPERATION
3.2 L Duratorq-TDCi (Puma) diesel engine
Vehicles with 3.2L Duratorq-TDCi (Puma) (200 PS) diesel engine
E130048
Item
Description
1
Exhaust manifold
2
Oil supply tube
3
Electronic turbocharger guide vane
adjuster
1
2
3
4
5
Item
Description
4
Turbocharger
5
Oil drain tube
