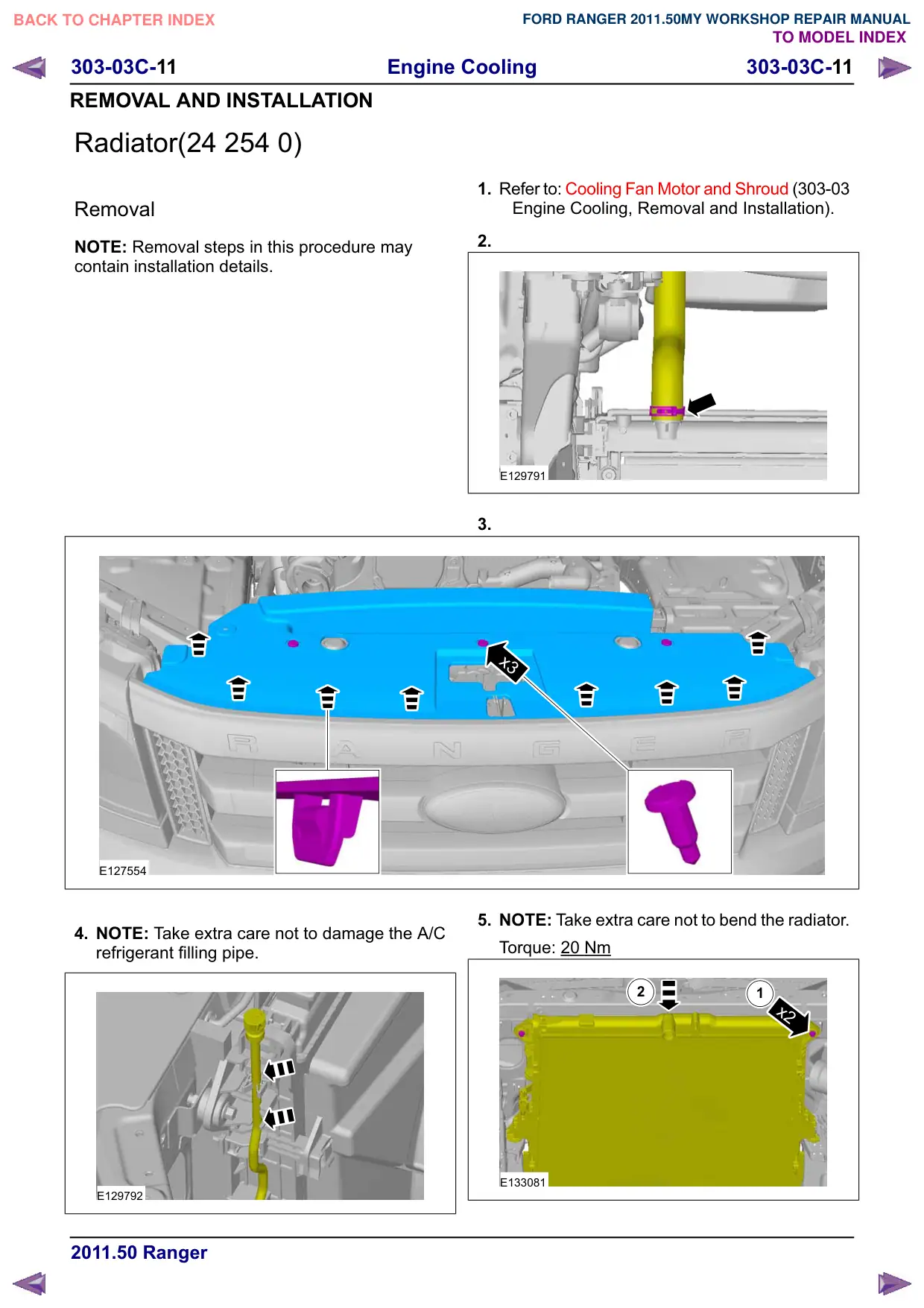

Engine Cooling 303-03C-11 303-03C-11 REMOVAL AND INSTALLATION Radiator(24 254 0) Removal NOTE: Removal steps in this procedure may contain installation details. E127554 4. NOTE: Take extra care not to damage the A/C refrigerant filling pipe. E129792 1. Refer to: Cooling Fan Motor and Shroud (303-03 Engine Cooling, Removal and Installation). 2. E129791 3. x3 5. NOTE: Take extra care not to bend the radiator. Torque: 20 Nm 2 1 x2 E133081
