Motor – Veículos com: transmissão manual de 6 marchas -

Engine – Vehicles With: 6-Speed Manual Transmission -

Oficina · página 657 de 1428 · 303-01C-103 · motor 3.2 · parte 1 de 9

Página 657 do Manual de Oficina: Motor – Veículos com: transmissão manual de 6 marchas -

Explicar no Gemini Ampliar imagem Traduzir texto

Texto da página

Link desta página: https://ranger.mbrace.com.br/oficina/657
Imagem: https://ranger.mbrace.com.br/img/oficina/657.webp

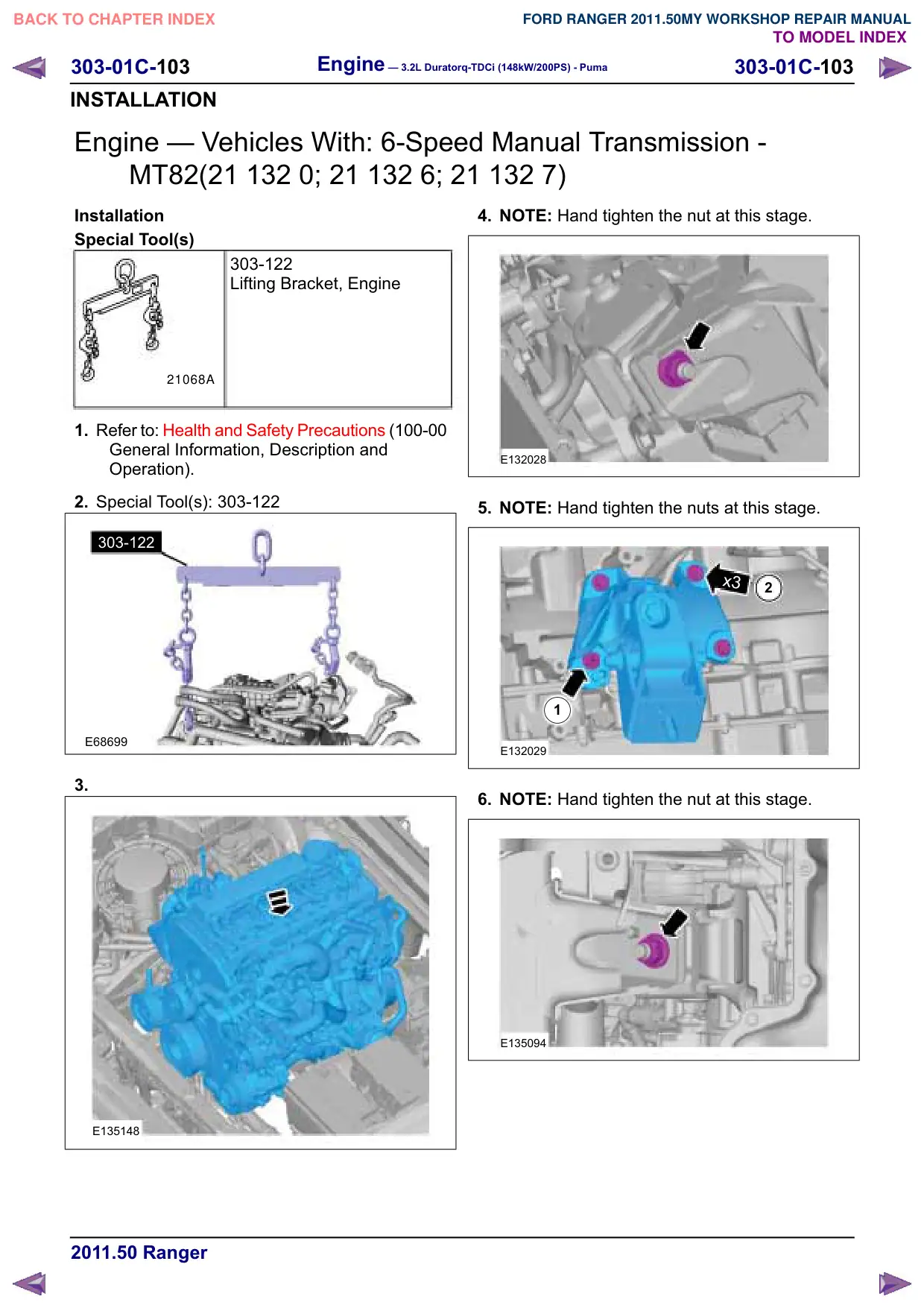

303-01C-103 Engine – 3.2L Duratorq-TDCi (148kW/200PS) - Puma 303-01C-103 INSTALLATION Engine – Vehicles With: 6-Speed Manual Transmission - MT82(21 132 0; 21 132 6; 21 132 7) Installation Special Tool(s) 303-122 Lifting Bracket, Engine 21068A 1. Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation). 2. Special Tool(s): 303-122 303-122 E68699 3. E135148 4. NOTE: Hand tighten the nut at this stage. E132028 5. NOTE: Hand tighten the nuts at this stage. x3 2 1 E132029 6. NOTE: Hand tighten the nut at this stage. E135094
