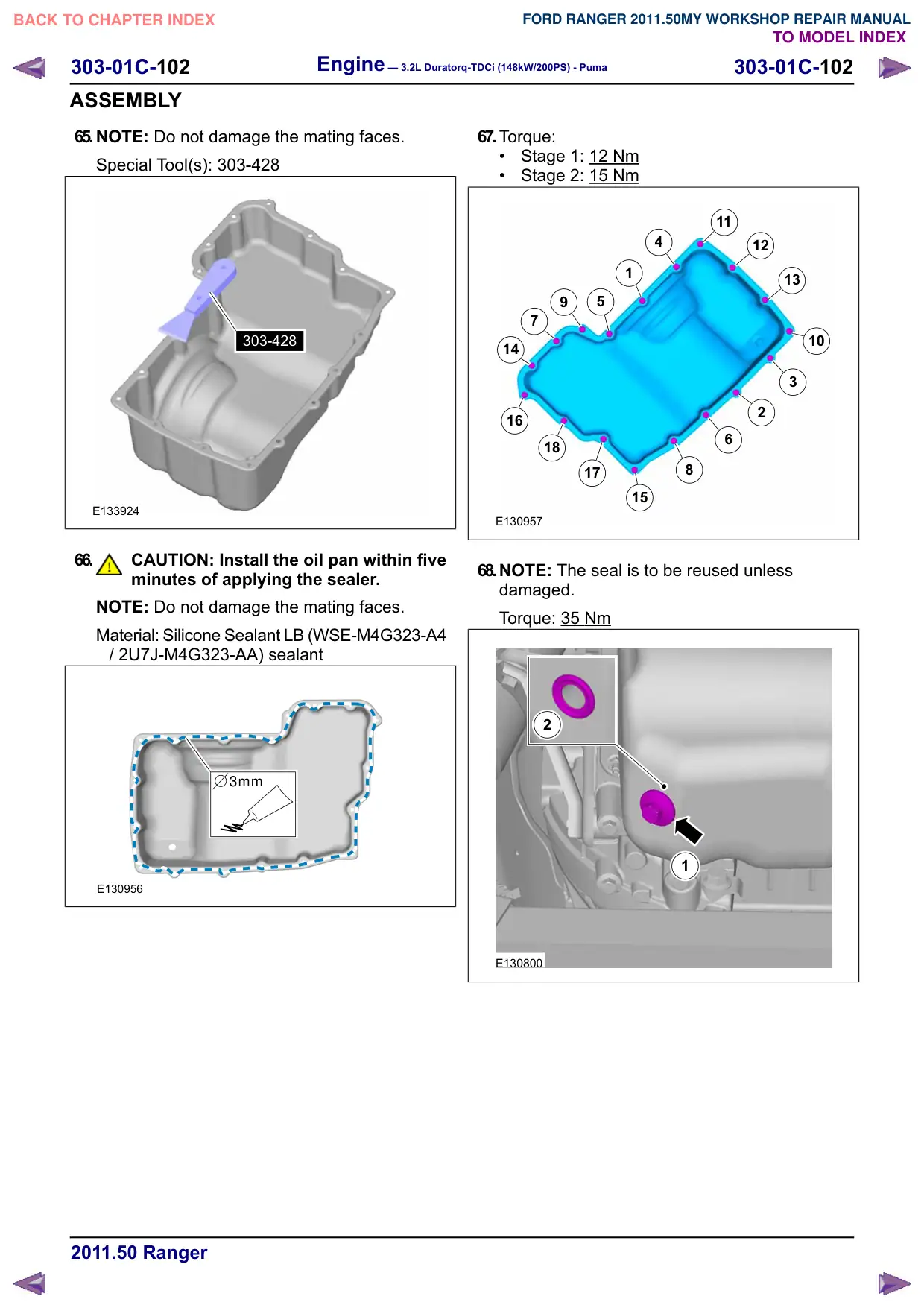

Engine – 3.2L Duratorq-TDCi (148kW/200PS) - Puma
303-01C-102
303-01C-102
ASSEMBLY
65.NOTE: Do not damage the mating faces.
Special Tool(s): 303-428
303-428
E133924
66.
CAUTION: Install the oil pan within five
minutes of applying the sealer.
NOTE: Do not damage the mating faces.
Material: Silicone Sealant LB (WSE-M4G323-A4
/ 2U7J-M4G323-AA) sealant
3mm
E130956
67.Torque:
Stage 1: 12 Nm
Stage 2: 15 Nm
11
4
12
1
13
5
7
10
14
3
2
16
6
18
8
17
15
E130957
68.NOTE: The seal is to be reused unless
damaged.
Torque: 35 Nm
2
1
E130800
