Tampa da distribuição

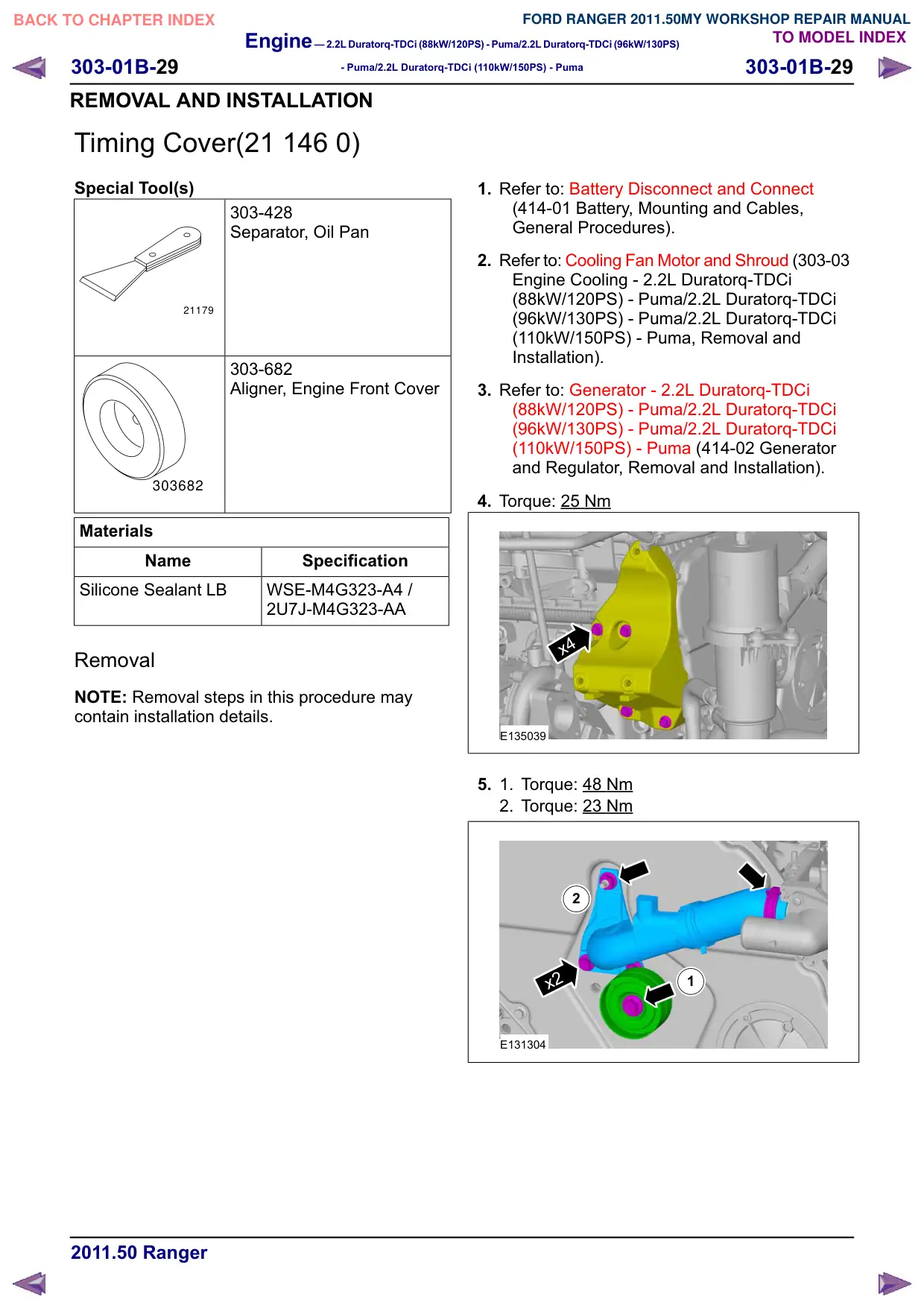

Engine – 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS) 303-01B-29 303-01B-29 - Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma REMOVAL AND INSTALLATION Timing Cover(21 146 0) Special Tool(s) 303-428 Separator, Oil Pan 21179 303-682 Aligner, Engine Front Cover 303682 Materials Name Specification Silicone Sealant LB WSE-M4G323-A4 / 2U7J-M4G323-AA Removal NOTE: Removal steps in this procedure may contain installation details. 1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures). 2. Refer to: Cooling Fan Motor and Shroud (303-03 Engine Cooling - 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma, Removal and Installation). 3. Refer to: Generator - 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma (414-02 Generator and Regulator, Removal and Installation). 4. Torque: 25 Nm x4 E135039 5. 1. Torque: 48 Nm 2. Torque: 23 Nm 2 x2 1 E131304
