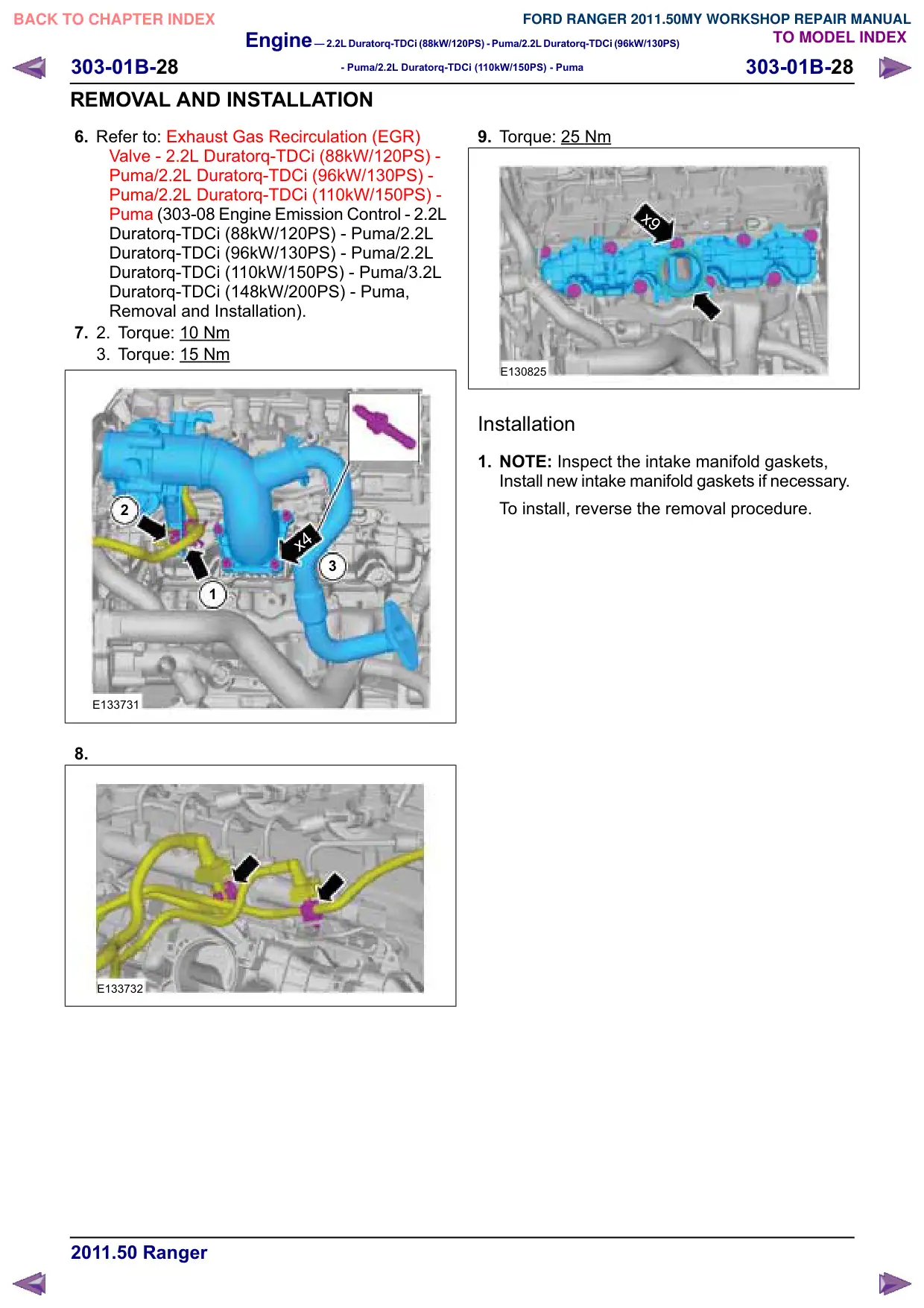

Página 430 do Manual de Oficina: Coletor de admissão

Explicar no Gemini Ampliar imagem Traduzir texto

Texto da página

Link desta página: https://ranger.mbrace.com.br/oficina/430
Imagem: https://ranger.mbrace.com.br/img/oficina/430.webp

Engine – 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS) 303-01B-28 303-01B-28 - Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma REMOVAL AND INSTALLATION 6. Refer to: Exhaust Gas Recirculation (EGR) Valve - 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma (303-08 Engine Emission Control - 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma/3.2L Duratorq-TDCi (148kW/200PS) - Puma, Removal and Installation). 7. 2. Torque: 10 Nm 3. Torque: 15 Nm 2 x4 3 1 E133731 8. E133732 9. Torque: 25 Nm x9 E130825 Installation 1. NOTE: Inspect the intake manifold gaskets, Install new intake manifold gaskets if necessary. To install, reverse the removal procedure.
