Cilindro mestre de freio – RHD 4WD/RHD RWD

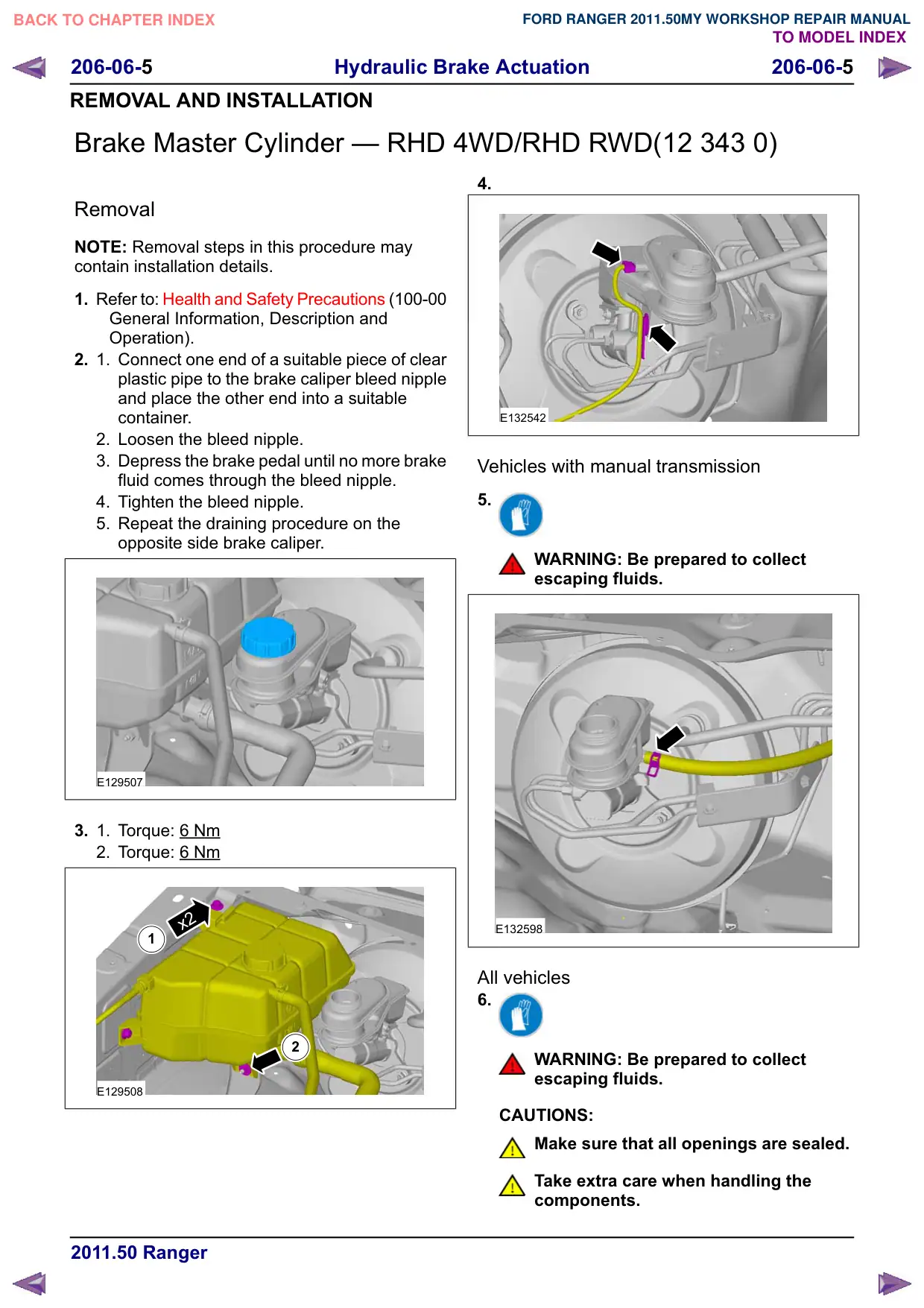

Hydraulic Brake Actuation 206-06-5 206-06-5 REMOVAL AND INSTALLATION Brake Master Cylinder – RHD 4WD/RHD RWD(12 343 0) Removal NOTE: Removal steps in this procedure may contain installation details. 1. Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation). 2. 1. Connect one end of a suitable piece of clear plastic pipe to the brake caliper bleed nipple and place the other end into a suitable container. 2. Loosen the bleed nipple. 3. Depress the brake pedal until no more brake fluid comes through the bleed nipple. 4. Tighten the bleed nipple. 5. Repeat the draining procedure on the opposite side brake caliper. E129507 3. 1. Torque: 6 Nm 2. Torque: 6 Nm x2 1 2 E129508 4. E132542 Vehicles with manual transmission 5. WARNING: Be prepared to collect escaping fluids. E132598 All vehicles 6. WARNING: Be prepared to collect escaping fluids. CAUTIONS: Make sure that all openings are sealed. Take extra care when handling the components.
