Cilindro mestre de freio – LHD 4WD/LHD RWD

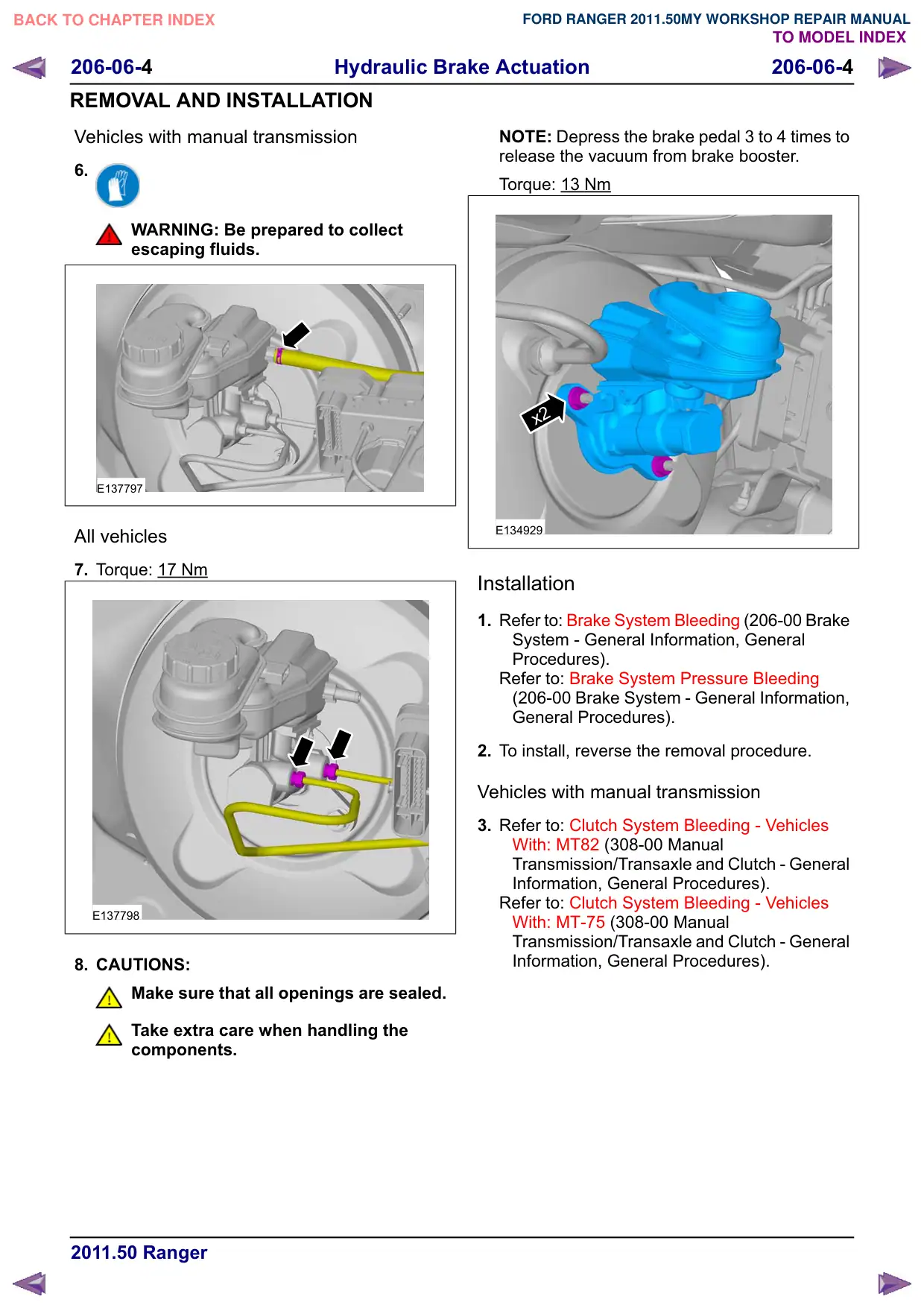

Hydraulic Brake Actuation 206-06-4 206-06-4 REMOVAL AND INSTALLATION Vehicles with manual transmission 6. WARNING: Be prepared to collect escaping fluids. E137797 All vehicles 7. Torque: 17 Nm E137798 8. CAUTIONS: Make sure that all openings are sealed. Take extra care when handling the components. NOTE: Depress the brake pedal 3 to 4 times to release the vacuum from brake booster. Torque: 13 Nm x2 E134929 Installation 1. Refer to: Brake System Bleeding (206-00 Brake System - General Information, General Procedures). Refer to: Brake System Pressure Bleeding (206-00 Brake System - General Information, General Procedures). 2. To install, reverse the removal procedure. Vehicles with manual transmission 3. Refer to: Clutch System Bleeding - Vehicles With: MT82 (308-00 Manual Transmission/Transaxle and Clutch - General Information, General Procedures). Refer to: Clutch System Bleeding - Vehicles With: MT-75 (308-00 Manual Transmission/Transaxle and Clutch - General Information, General Procedures).
