Pastilhas de freio

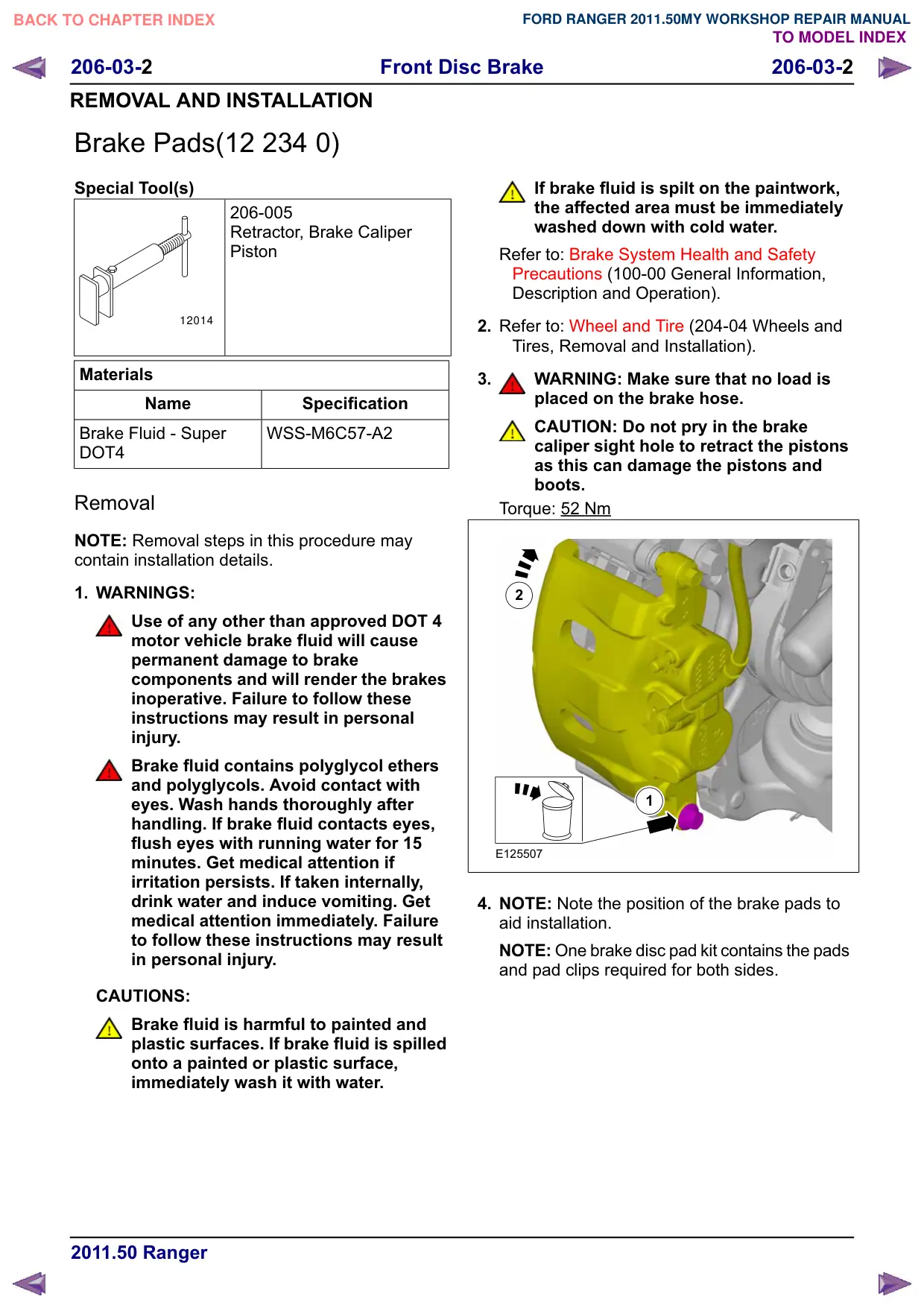

Front Disc Brake 206-03-2 206-03-2 REMOVAL AND INSTALLATION Brake Pads(12 234 0) Special Tool(s) 206-005 Retractor, Brake Caliper Piston 12014 Materials Name Specification Brake Fluid - Super WSS-M6C57-A2 DOT4 Removal NOTE: Removal steps in this procedure may contain installation details. 1. WARNINGS: Use of any other than approved DOT 4 motor vehicle brake fluid will cause permanent damage to brake components and will render the brakes inoperative. Failure to follow these instructions may result in personal injury. Brake fluid contains polyglycol ethers and polyglycols. Avoid contact with eyes. Wash hands thoroughly after handling. If brake fluid contacts eyes, flush eyes with running water for 15 minutes. Get medical attention if irritation persists. If taken internally, drink water and induce vomiting. Get medical attention immediately. Failure to follow these instructions may result in personal injury. CAUTIONS: Brake fluid is harmful to painted and plastic surfaces. If brake fluid is spilled onto a painted or plastic surface, immediately wash it with water. If brake fluid is spilt on the paintwork, the affected area must be immediately washed down with cold water. Refer to: Brake System Health and Safety Precautions (100-00 General Information, Description and Operation). 2. Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and Installation). 3. WARNING: Make sure that no load is placed on the brake hose. CAUTION: Do not pry in the brake caliper sight hole to retract the pistons as this can damage the pistons and boots. Torque: 52 Nm 2 1 E125507 4. NOTE: Note the position of the brake pads to aid installation. NOTE: One brake disc pad kit contains the pads and pad clips required for both sides.
