206-03 Freio a disco dianteiro

Front Disc Brake 206-03-1 206-03-1 . SECTION 206-03 Front Disc Brake VEHICLE APPLICATION: 2011.50 Ranger CONTENTS REMOVAL AND INSTALLATION Brake Pads..................................................................................................... Brake Caliper.................................................................................................. Brake Disc...................................................................................................... PAGE (12 234 0) 206-03-2 (12 243 0) 206-03-4 (12 223 0) 206-03-5

Front Disc Brake 206-03-2 206-03-2 REMOVAL AND INSTALLATION Brake Pads(12 234 0) Special Tool(s) 206-005 Retractor, Brake Caliper Piston 12014 Materials Name Specification Brake Fluid - Super WSS-M6C57-A2 DOT4 Removal NOTE: Removal steps in this procedure may contain installation details. 1. WARNINGS: Use of any other than approved DOT 4 motor vehicle brake fluid will cause permanent damage to brake components and will render the brakes inoperative. Failure to follow these instructions may result in personal injury. Brake fluid contains polyglycol ethers and polyglycols. Avoid contact with eyes. Wash hands thoroughly after handling. If brake fluid contacts eyes, flush eyes with running water for 15 minutes. Get medical attention if irritation persists. If taken internally, drink water and induce vomiting. Get medical attention immediately. Failure to follow these instructions may result in personal injury. CAUTIONS: Brake fluid is harmful to painted and plastic surfaces. If brake fluid is spilled onto a painted or plastic surface, immediately wash it with water. If brake fluid is spilt on the paintwork, the affected area must be immediately washed down with cold water. Refer to: Brake System Health and Safety Precautions (100-00 General Information, Description and Operation). 2. Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and Installation). 3. WARNING: Make sure that no load is placed on the brake hose. CAUTION: Do not pry in the brake caliper sight hole to retract the pistons as this can damage the pistons and boots. Torque: 52 Nm 2 1 E125507 4. NOTE: Note the position of the brake pads to aid installation. NOTE: One brake disc pad kit contains the pads and pad clips required for both sides.

Front Disc Brake 206-03-3 206-03-3 REMOVAL AND INSTALLATION Rotate the brake caliper upwards E125508 5. CAUTION: When the brake caliper piston is retracted into the piston housing, brake fluid will be displaced into the brake fluid reservoir. NOTE: Make sure the brake pad contact points are clean and free from contamination. NOTE: Remove the adhesive foil from the rear of the brake pad. Special Tool(s): 206-005 206-005 E125509 Installation 1. CAUTIONS: Make sure that the mating faces are clean and free of foreign material and that no grease is applied to the brake pad guides. Do not allow grease, oil, brake fluid or other contaminants to contact the pad lining material. Do not install contaminated pads. Protect the piston and boots when pushing the caliper piston into the caliper piston bores. 2. To install, reverse the removal procedure. 3. CAUTION: The fluid level must remain between the MAX and MIN marks. NOTE: Depress the brake pedal, check the brake fluid level in the brake fluid reservoir and top up as necessary with brake fluid. Material: Brake Fluid - Super DOT4 (WSS-M6C57-A2) brake fluid E125844

Front Disc Brake 206-03-4 206-03-4 REMOVAL AND INSTALLATION Brake Caliper(12 243 0) Removal NOTE: Removal steps in this procedure may contain installation details. 1. Refer to: Brake System Health and Safety Precautions (100-00 General Information, Description and Operation). Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and Installation). 2. WARNING: Be prepared to collect escaping fluids. NOTE: Use suitable paper to absorb any escaping fluid. NOTE: Make sure that the brake fluid level does not drop below the min mark. 1. Torque: 27 Nm 2. Torque: 115 Nm 2 x2 1 E125506 Installation 1. To install , reverse the removal procedure. 2. NOTE: Make sure that replace the new packings for flexible hose. Refer to: Brake System Bleeding (206-00 Brake System - General Information, General Procedures).

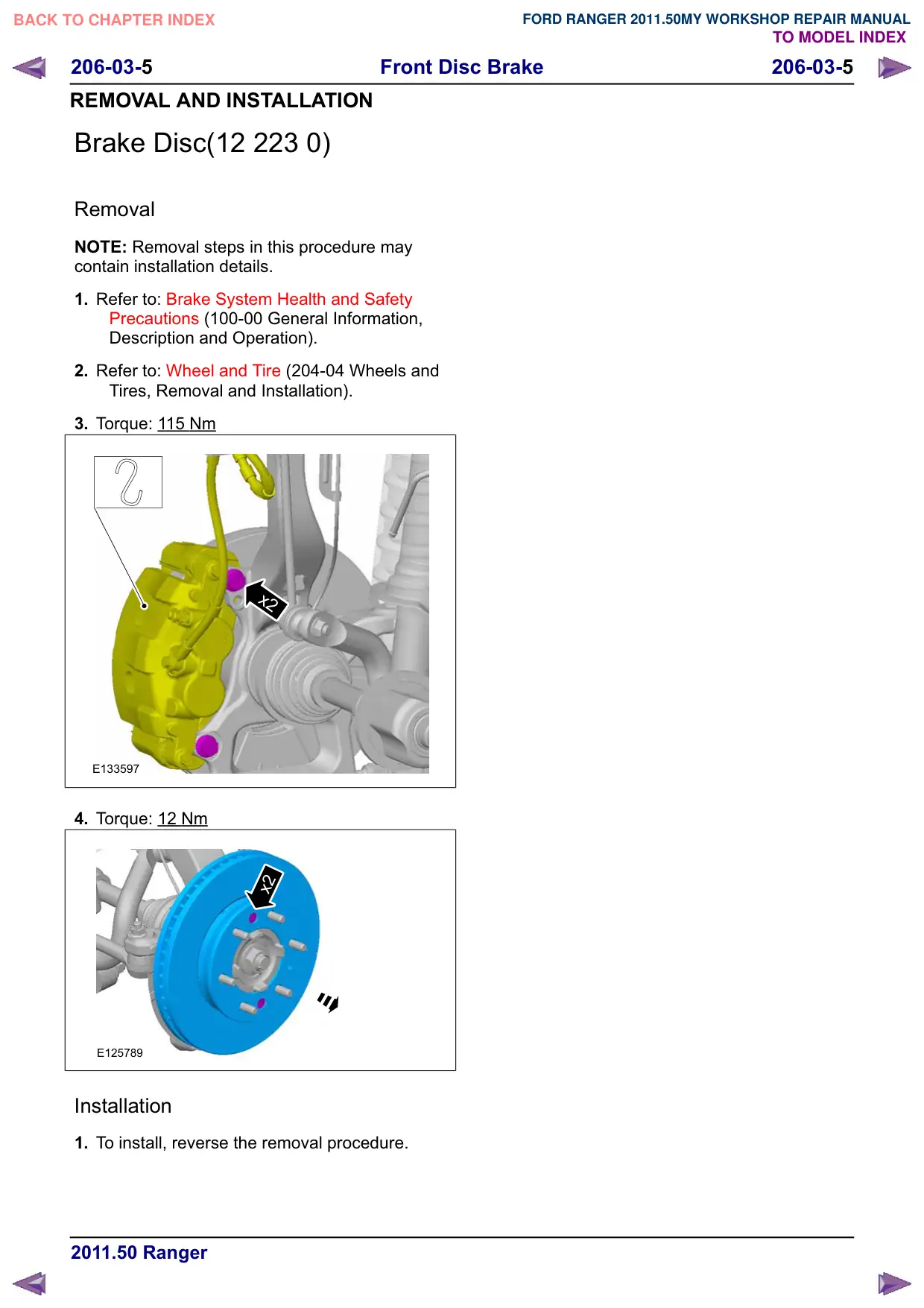

Front Disc Brake 206-03-5 206-03-5 REMOVAL AND INSTALLATION Brake Disc(12 223 0) Removal NOTE: Removal steps in this procedure may contain installation details. 1. Refer to: Brake System Health and Safety Precautions (100-00 General Information, Description and Operation). 2. Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and Installation). 3. Torque: 115 Nm x2 E133597 4. Torque: 12 Nm x2 E125789 Installation 1. To install, reverse the removal procedure.
