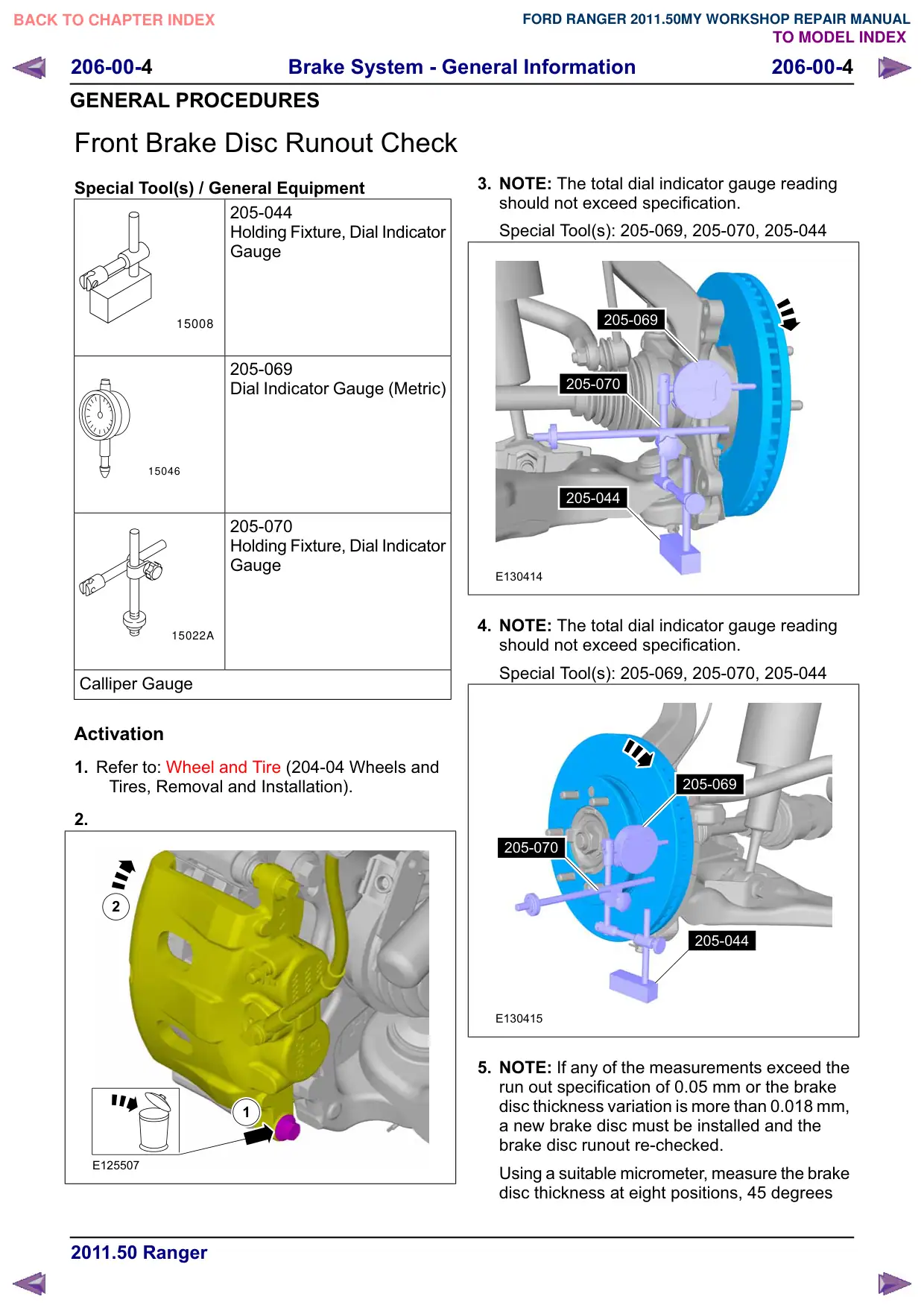

Brake System - General Information 206-00-4 206-00-4 GENERAL PROCEDURES Front Brake Disc Runout Check Special Tool(s) / General Equipment 205-044 Holding Fixture, Dial Indicator Gauge 15008 205-069 Dial Indicator Gauge (Metric) 15046 205-070 Holding Fixture, Dial Indicator Gauge 15022A Calliper Gauge Activation 1. Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and Installation). 2. 2 1 E125507 3. NOTE: The total dial indicator gauge reading should not exceed specification. Special Tool(s): 205-069, 205-070, 205-044 205-069 205-070 205-044 E130414 4. NOTE: The total dial indicator gauge reading should not exceed specification. Special Tool(s): 205-069, 205-070, 205-044 205-069 205-070 205-044 E130415 5. NOTE: If any of the measurements exceed the run out specification of 0.05 mm or the brake disc thickness variation is more than 0.018 mm, a new brake disc must be installed and the brake disc runout re-checked. Using a suitable micrometer, measure the brake disc thickness at eight positions, 45 degrees
