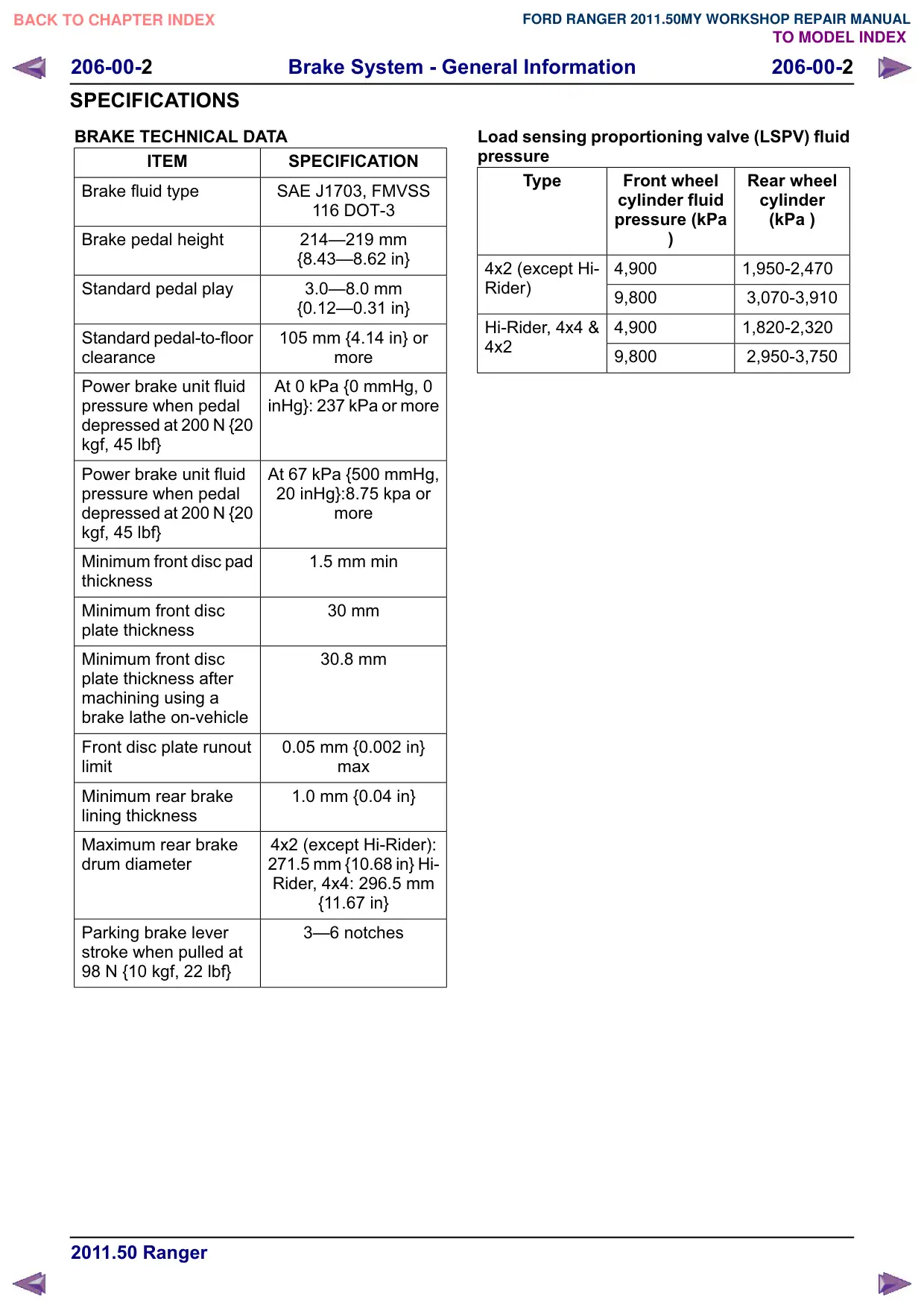

Brake System - General Information 206-00-2 206-00-2 SPECIFICATIONS BRAKE TECHNICAL DATA ITEM SPECIFICATION Brake fluid type SAE J1703, FMVSS 116 DOT-3 Brake pedal height 214–219 mm {8.43–8.62 in} Standard pedal play 3.0–8.0 mm {0.12–0.31 in} Standard pedal-to-floor 105 mm {4.14 in} or clearance PRUH Power brake unit fluid At 0 kPa {0 mmHg, 0 pressure when pedal inHg}: 237 kPa or more depressed at 200 N {20 kgf, 45 lbf} Power brake unit fluid At 67 kPa {500 mmHg, pressure when pedal 20 inHg}:8.75 kpa or depressed at 200 N {20 PRUH kgf, 45 lbf} Minimum front disc pad 1.5 mm min thickness Minimum front disc 30 mm plate thickness Minimum front disc 30.8 mm plate thickness after machining using a brake lathe on-vehicle Front disc plate runout 0.05 mm {0.002 in} limit PD[ Minimum rear brake 1.0 mm {0.04 in} lining thickness Maximum rear brake 4x2 (except Hi-Rider): drum diameter 271.5 mm {10.68 in} Hi- Rider, 4x4: 296.5 mm {11.67 in} Parking brake lever 3–6 notches stroke when pulled at 98 N {10 kgf, 22 lbf} Load sensing proportioning valve (LSPV) fluid pressure Type Front wheel Rear wheel cylinder fluid cylinder pressure (kPa (kPa ) 4x2 (except Hi- 4,900 1,950-2,470 Rider) 9,800 3,070-3,910 Hi-Rider, 4x4 & 4,900 1,820-2,320 4x2 9,800 2,950-3,750
