Coifa da junta homocinética externa

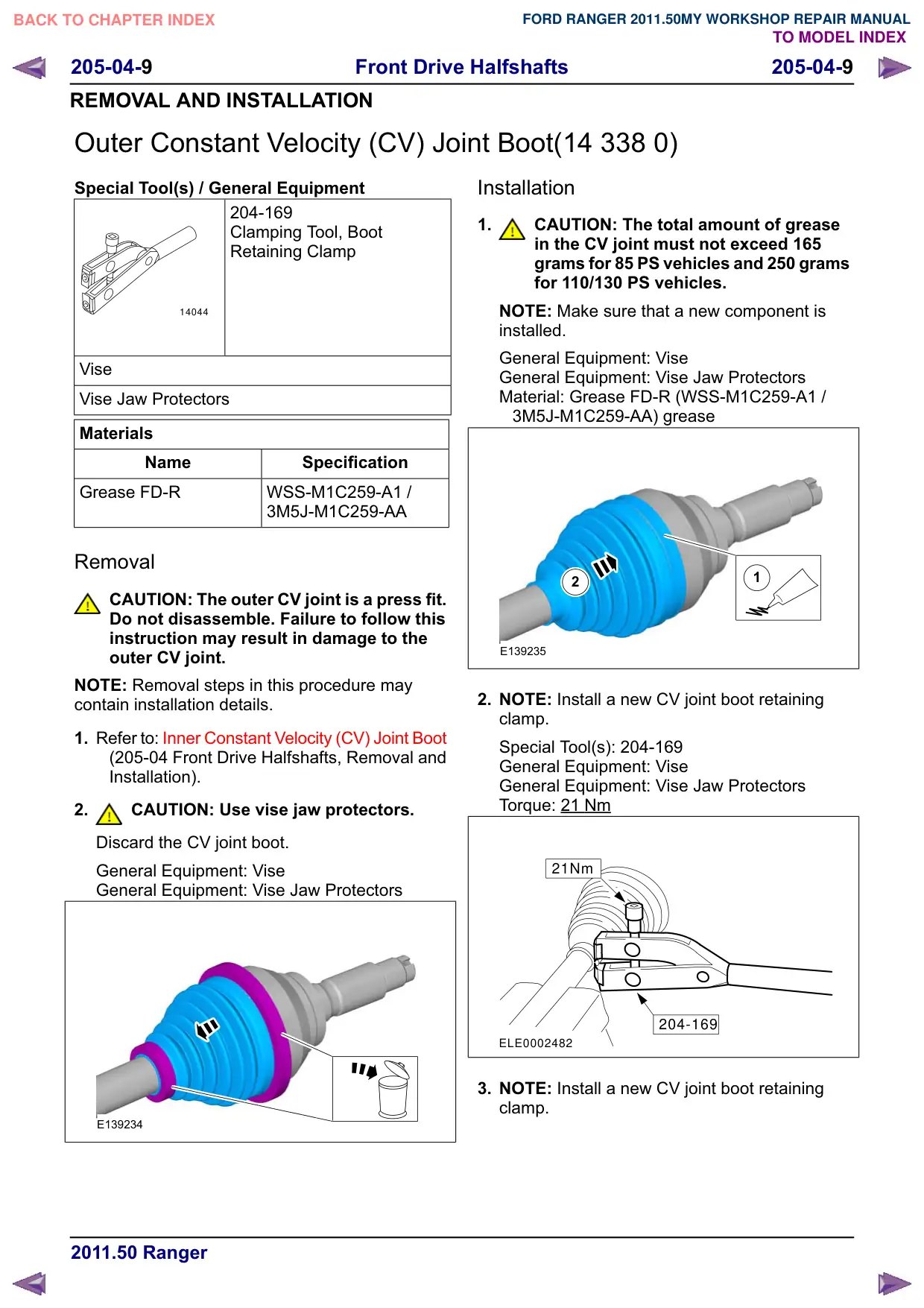

Front Drive Halfshafts 205-04- 205-04- REMOVAL AND INSTALLATION Outer Constant Velocity (CV) Joint Boot(14 338 0) Special Tool(s) / General Equipment 204-169 Clamping Tool, Boot Retaining Clamp 14044 Vise Vise Jaw Protectors Materials Name Specification Grease FD-R WSS-M1C259-A1 / 3M5J-M1C259-AA Removal CAUTION: The outer CV joint is a press fit. Do not disassemble. Failure to follow this instruction may result in damage to the outer CV joint. NOTE: Removal steps in this procedure may contain installation details. 1. Refer to: Inner Constant Velocity (CV) Joint Boot (205-04 Front Drive Halfshafts, Removal and Installation). 2. CAUTION: Use vise jaw protectors. Discard the CV joint boot. General Equipment: Vise General Equipment: Vise Jaw Protectors E139234 Installation 1. CAUTION: The total amount of grease in the CV joint must not exceed 165 grams for 85 PS vehicles and 250 grams for 110/130 PS vehicles. NOTE: Make sure that a new component is installed. General Equipment: Vise General Equipment: Vise Jaw Protectors Material: Grease FD-R (WSS-M1C259-A1 / 3M5J-M1C259-AA) grease 1 2 E139235 2. NOTE: Install a new CV joint boot retaining clamp. Special Tool(s): 204-169 General Equipment: Vise General Equipment: Vise Jaw Protectors Torque: 21 Nm 21Nm 204-169 ELE0002482 3. NOTE: Install a new CV joint boot retaining clamp.
