Conjunto da lanterna traseira

Rear Lamp Assembly

Oficina · página 1281 de 1428 · 417-01-15 · parte 1 de 2

Página 1281 do Manual de Oficina: Conjunto da lanterna traseira

Explicar no Gemini Ampliar imagem Traduzir texto

Texto da página

Link desta página: https://ranger.mbrace.com.br/oficina/1281
Imagem: https://ranger.mbrace.com.br/img/oficina/1281.webp

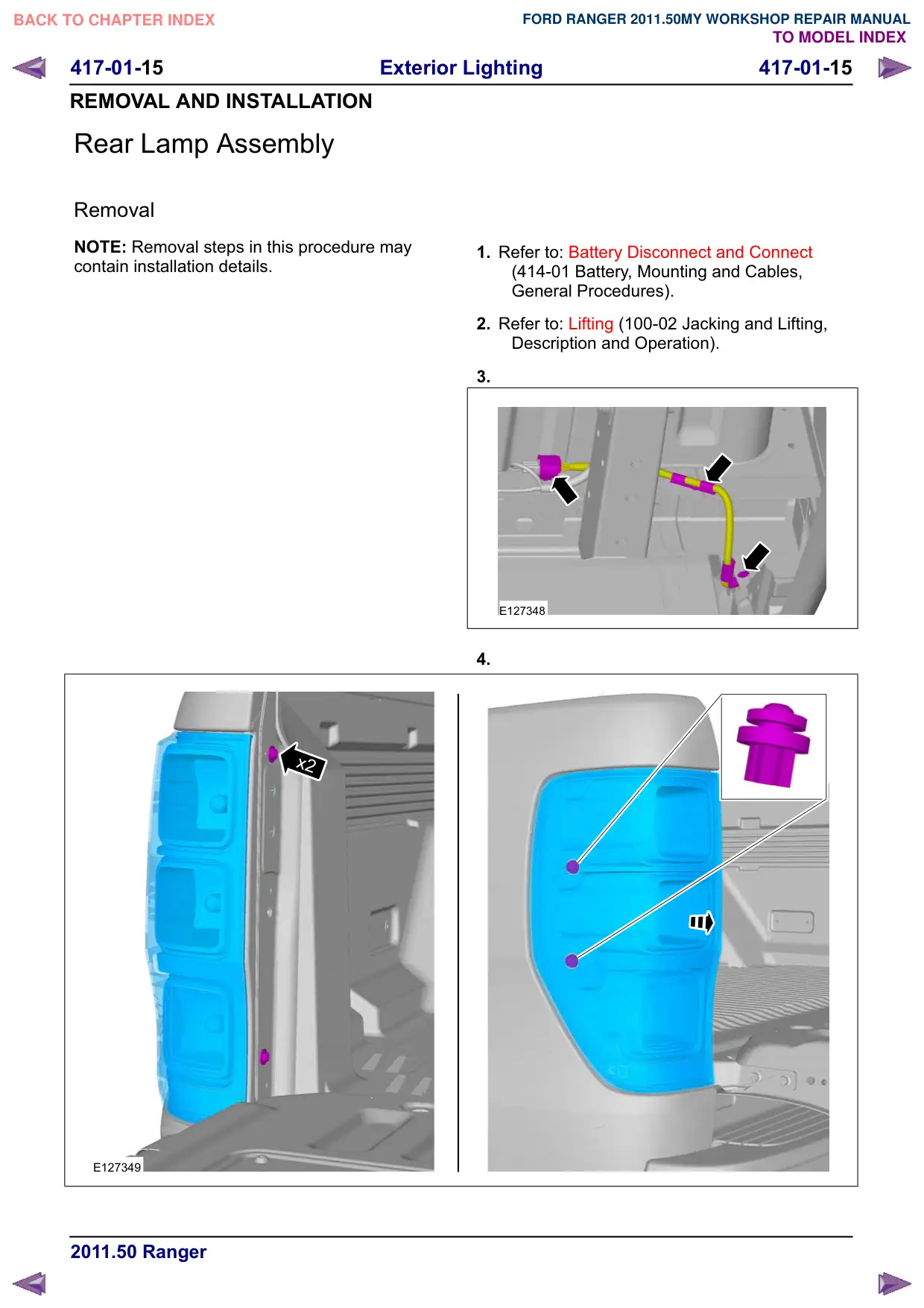

417-01-15 Exterior Lighting 417-01-15 REMOVAL AND INSTALLATION Rear Lamp Assembly Removal NOTE: Removal steps in this procedure may contain installation details. x2 E127349 1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures). 2. Refer to: Lifting (100-02 Jacking and Lifting, Description and Operation). 3. E127348 4.
