Luz de freio elevada (brake light)

High Mounted Stoplamp

Oficina · página 1280 de 1428 · 417-01-14

Página 1280 do Manual de Oficina: Luz de freio elevada (brake light)

Explicar no Gemini Ampliar imagem Traduzir texto

Texto da página

Link desta página: https://ranger.mbrace.com.br/oficina/1280
Imagem: https://ranger.mbrace.com.br/img/oficina/1280.webp

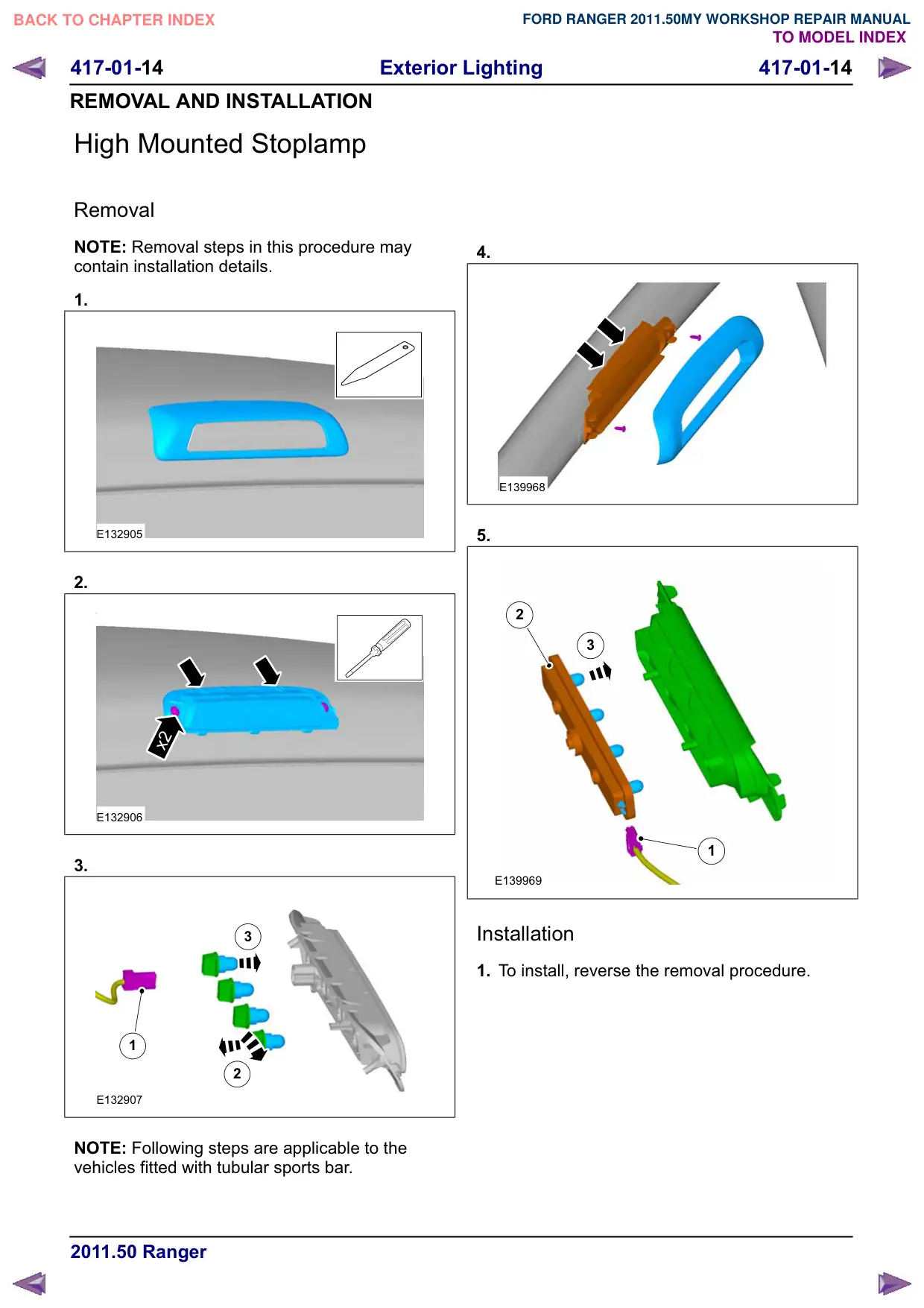

417-01-14 Exterior Lighting 417-01-14 REMOVAL AND INSTALLATION High Mounted Stoplamp Removal NOTE: Removal steps in this procedure may contain installation details. 1. E132905 2. x2 E132906 3. 3 1 2 E132907 NOTE: Following steps are applicable to the vehicles fitted with tubular sports bar. 4. E139968 5. 2 3 1 E139969 Installation 1. To install, reverse the removal procedure.
