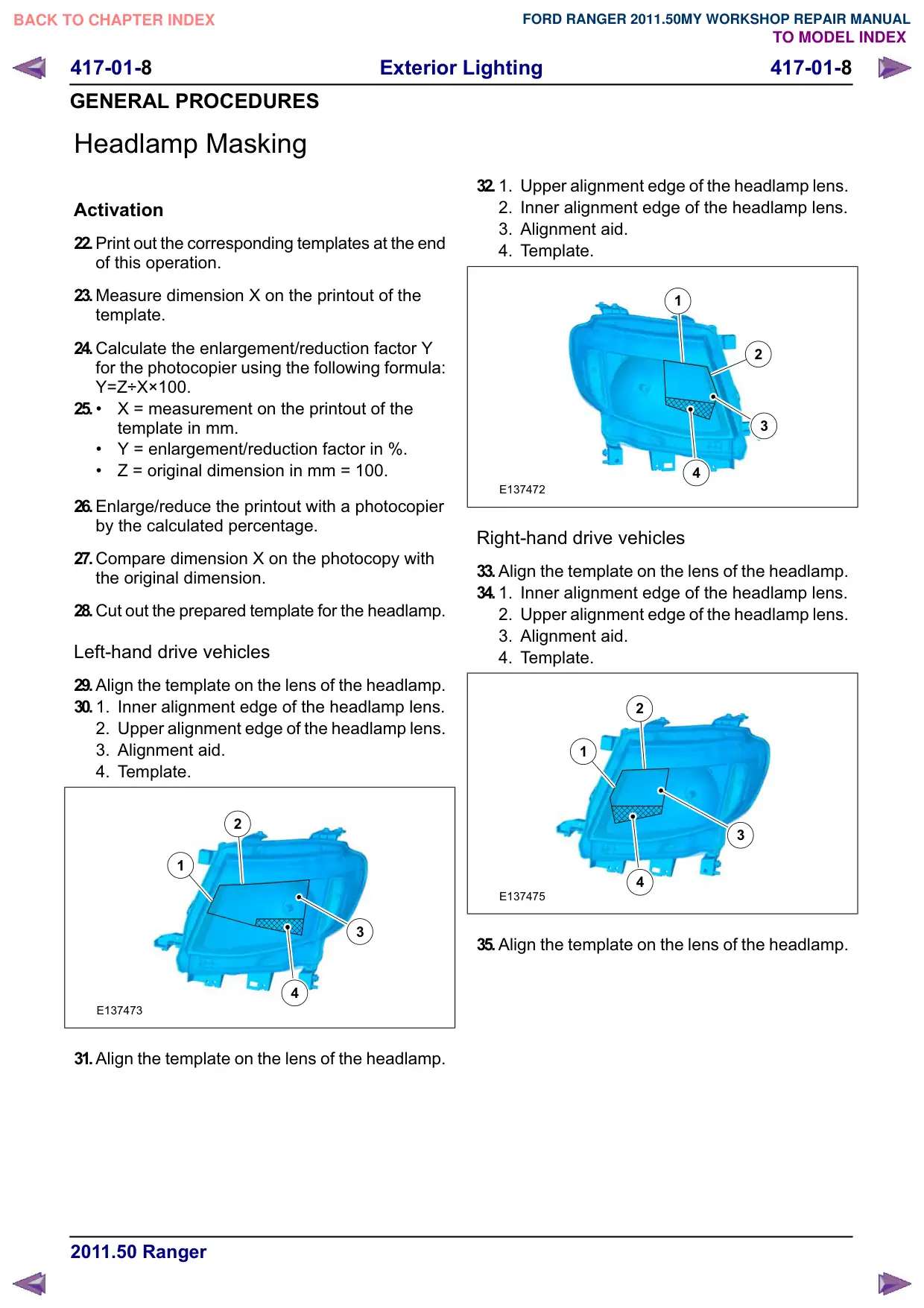

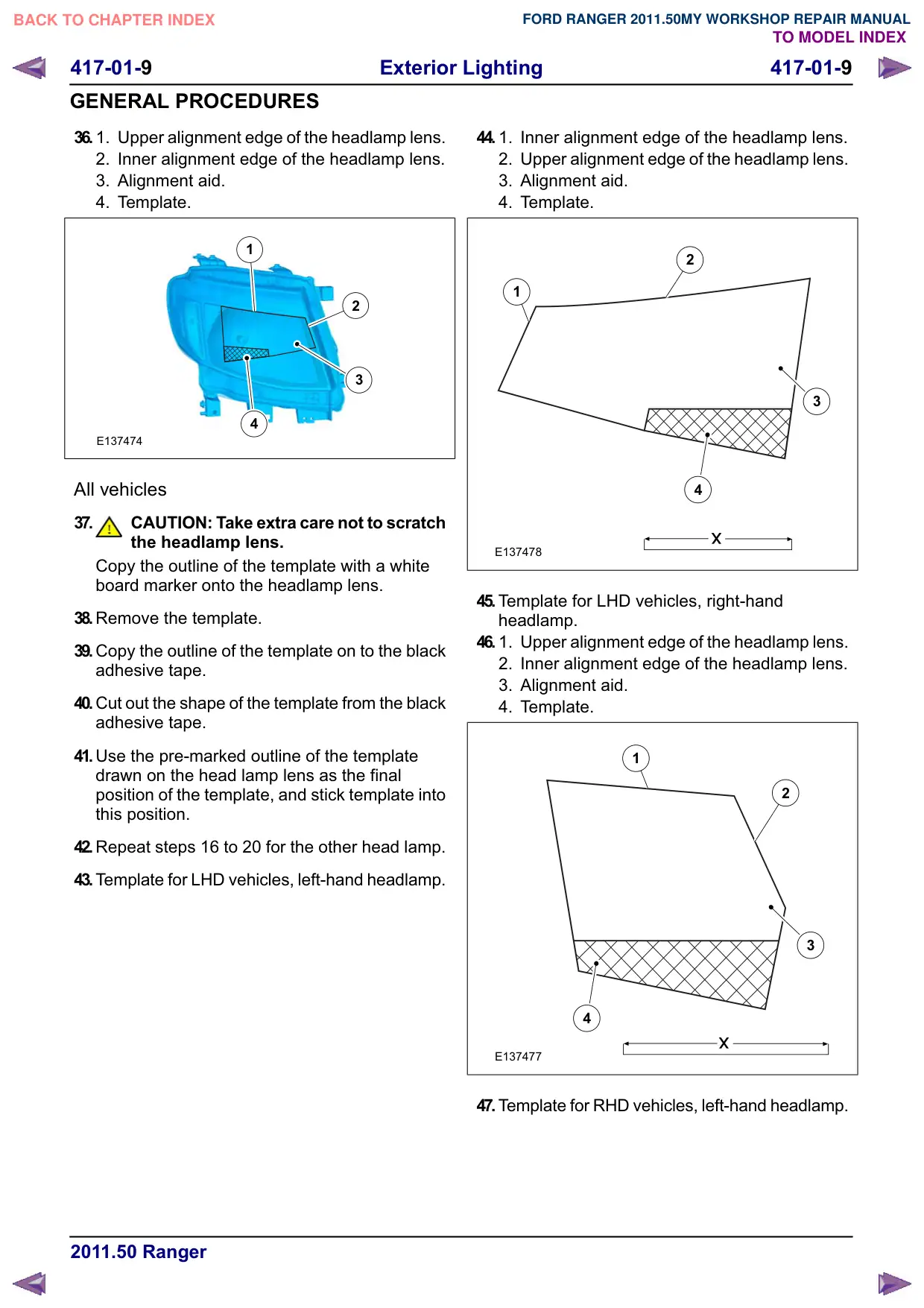

417-01-8 Exterior Lighting 417-01-8 GENERAL PROCEDURES Headlamp Masking Activation 22.Print out the corresponding templates at the end of this operation. 23.Measure dimension X on the printout of the template. 24.Calculate the enlargement/reduction factor Y for the photocopier using the following formula: Y Z’Xþ100. 25. ‡ X measurement on the printout of the template in mm. ‡ Y enlargement/reduction factor in %. ‡ Z original dimension in mm 100. 26.Enlarge/reduce the printout with a photocopier by the calculated percentage. 27.Compare dimension X on the photocopy with the original dimension. 28.Cut out the prepared template for the headlamp. Left-hand drive vehicles 29.Align the template on the lens of the headlamp. 30. 1. Inner alignment edge of the headlamp lens. 2. Upper alignment edge of the headlamp lens. 3. Alignment aid. 4. Template. 2 1 3 4 E137473 31.Align the template on the lens of the headlamp. 32. 1. Upper alignment edge of the headlamp lens. 2. Inner alignment edge of the headlamp lens. 3. Alignment aid. 4. Template. 1 2 3 4 E137472 Right-hand drive vehicles 33.Align the template on the lens of the headlamp. 34. 1. Inner alignment edge of the headlamp lens. 2. Upper alignment edge of the headlamp lens. 3. Alignment aid. 4. Template. 2 1 3 4 E137475 35.Align the template on the lens of the headlamp.
