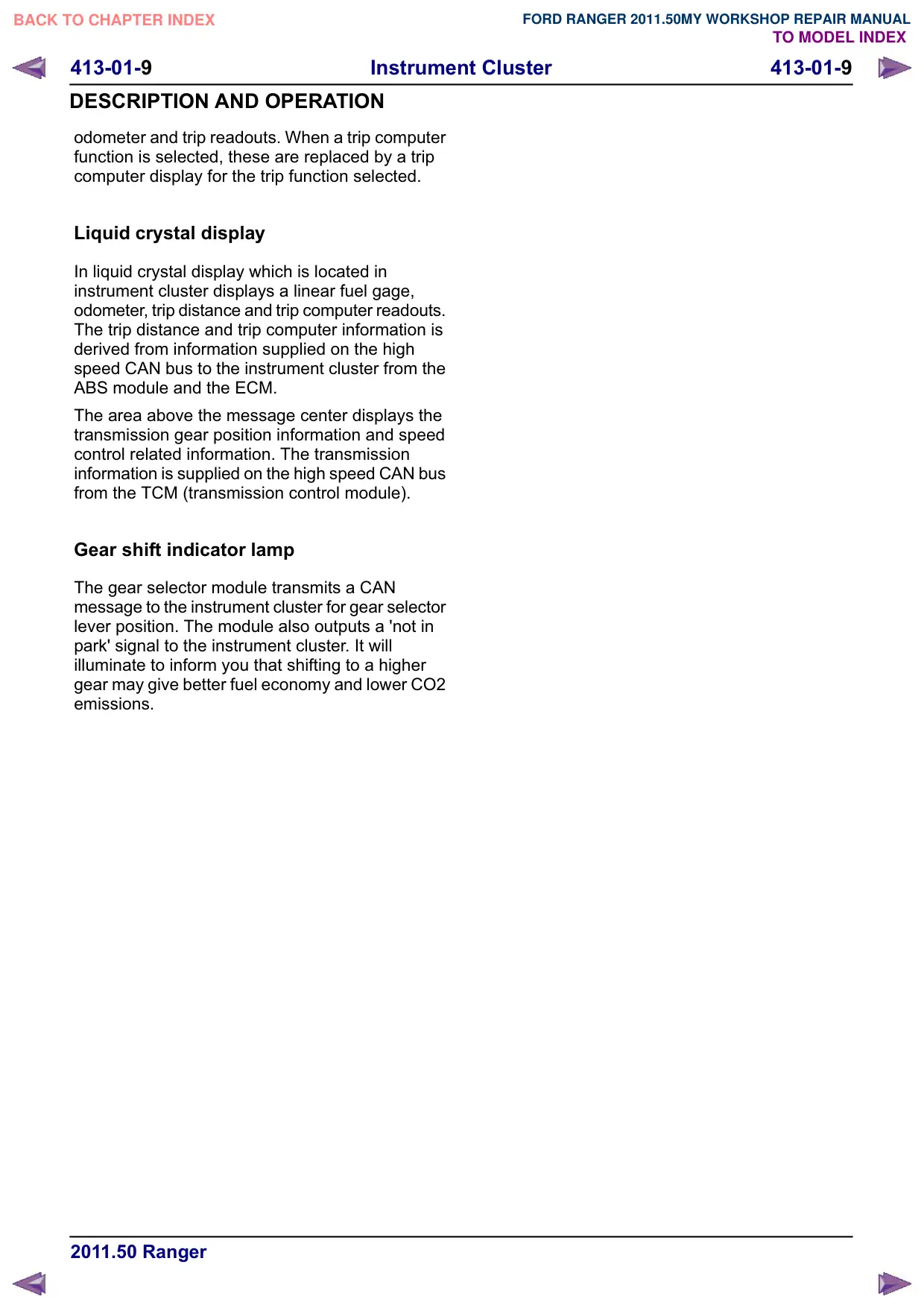

413-01- Instrument Cluster 413-01- DESCRIPTION AND OPERATION odometer and trip readouts. When a trip computer function is selected, these are replaced by a trip computer display for the trip function selected. Liquid crystal display In liquid crystal display which is located in instrument cluster displays a linear fuel gage, odometer, trip distance and trip computer readouts. The trip distance and trip computer information is derived from information supplied on the high speed CAN bus to the instrument cluster from the ABS module and the ECM. The area above the message center displays the transmission gear position information and speed control related information. The transmission information is supplied on the high speed CAN bus from the TCM (transmission control module). Gear shift indicator lamp The gear selector module transmits a CAN message to the instrument cluster for gear selector lever position. The module also outputs a 'not in park' signal to the instrument cluster. It will illuminate to inform you that shifting to a higher gear may give better fuel economy and lower CO2 emissions.
