413-01-5
Instrument Cluster
413-01-5
DESCRIPTION AND OPERATION
Instrument Cluster œ System Operation and Component
Description

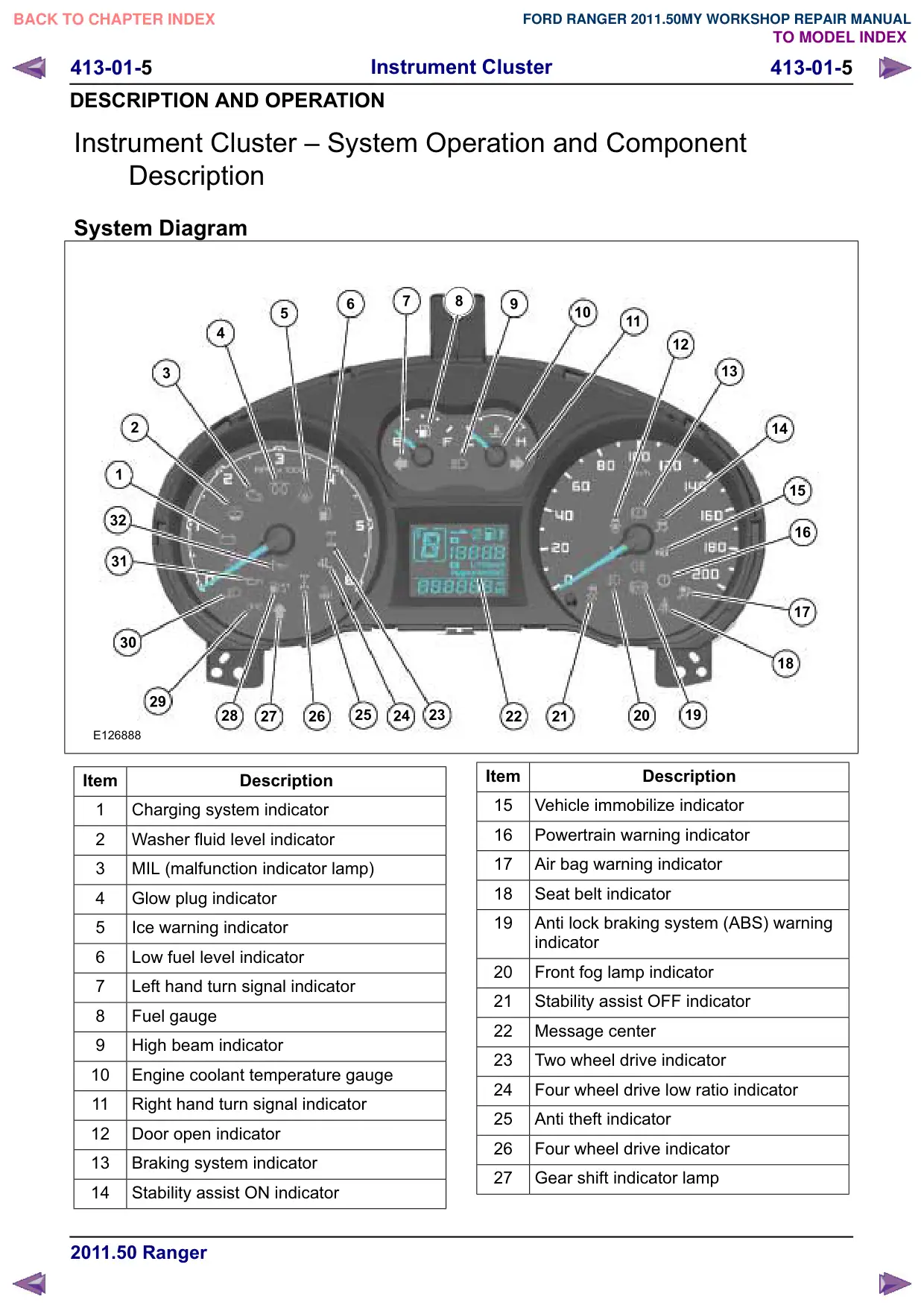

System Diagram
7
6
5
4
3
2
1
32
31
30
29
28
27
26
25
24
23
E126888
Item
Description
1
Charging system indicator
2
Washer fluid level indicator
3
MIL (malfunction indicator lamp)
4
Glow plug indicator
5
Ice warning indicator
6
Low fuel level indicator
7
Left hand turn signal indicator
8
Fuel gauge
High beam indicator
10
Engine coolant temperature gauge
11
Right hand turn signal indicator
12
Door open indicator
13
Braking system indicator
14
Stability assist ON indicator
8
10
11
12
13
14
15
16
17
18
22
21
20
19
Item
Description
15
Vehicle immobilize indicator
16
Powertrain warning indicator
17
Air bag warning indicator
18
Seat belt indicator
19
Anti lock braking system (ABS) warning
indicator
20
Front fog lamp indicator
21
Stability assist OFF indicator
22
Message center
23
Two wheel drive indicator
24
Four wheel drive low ratio indicator
25
Anti theft indicator
26
Four wheel drive indicator
27

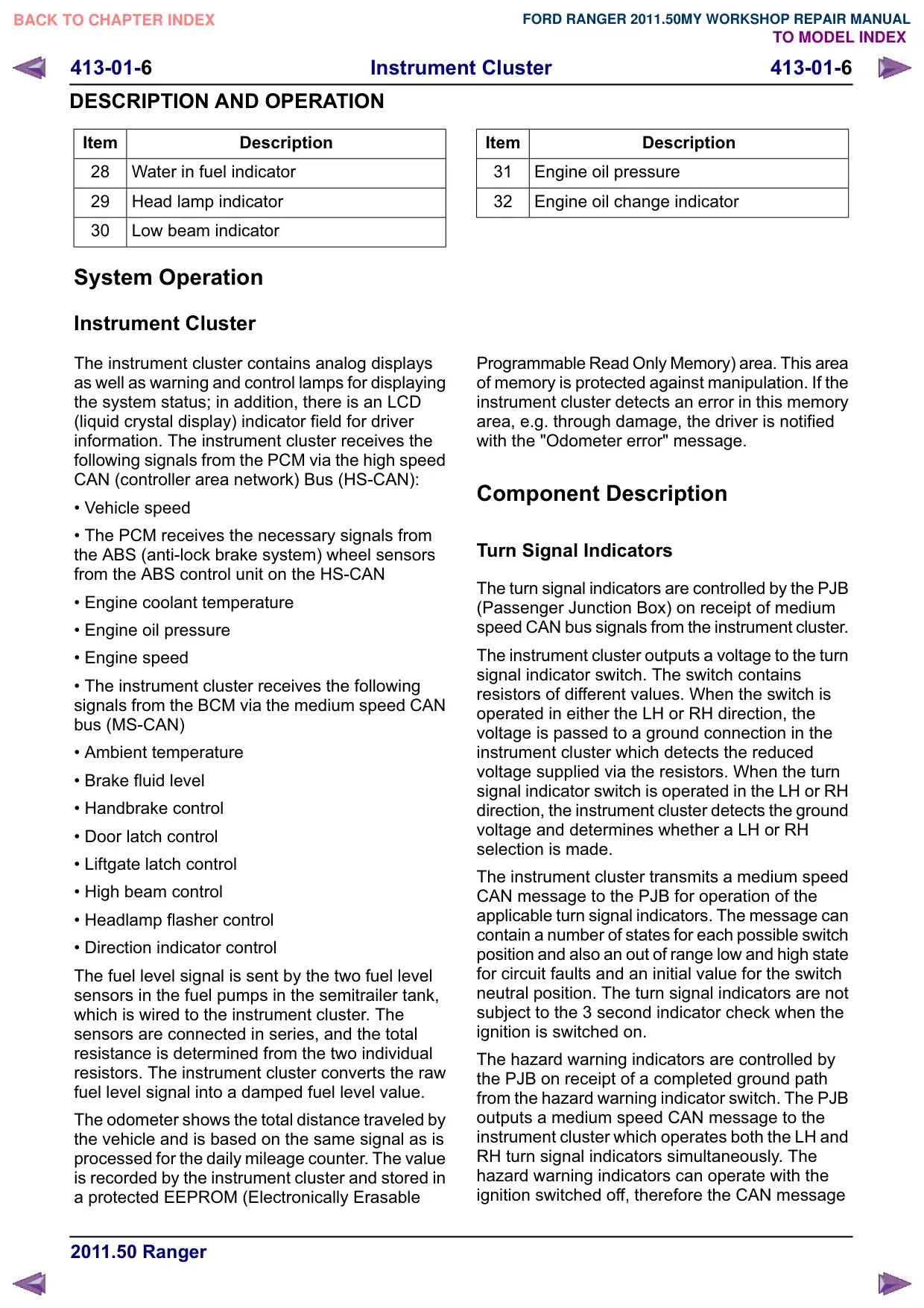

Gear shift indicator lamp
