Manga de eixo – 4WD

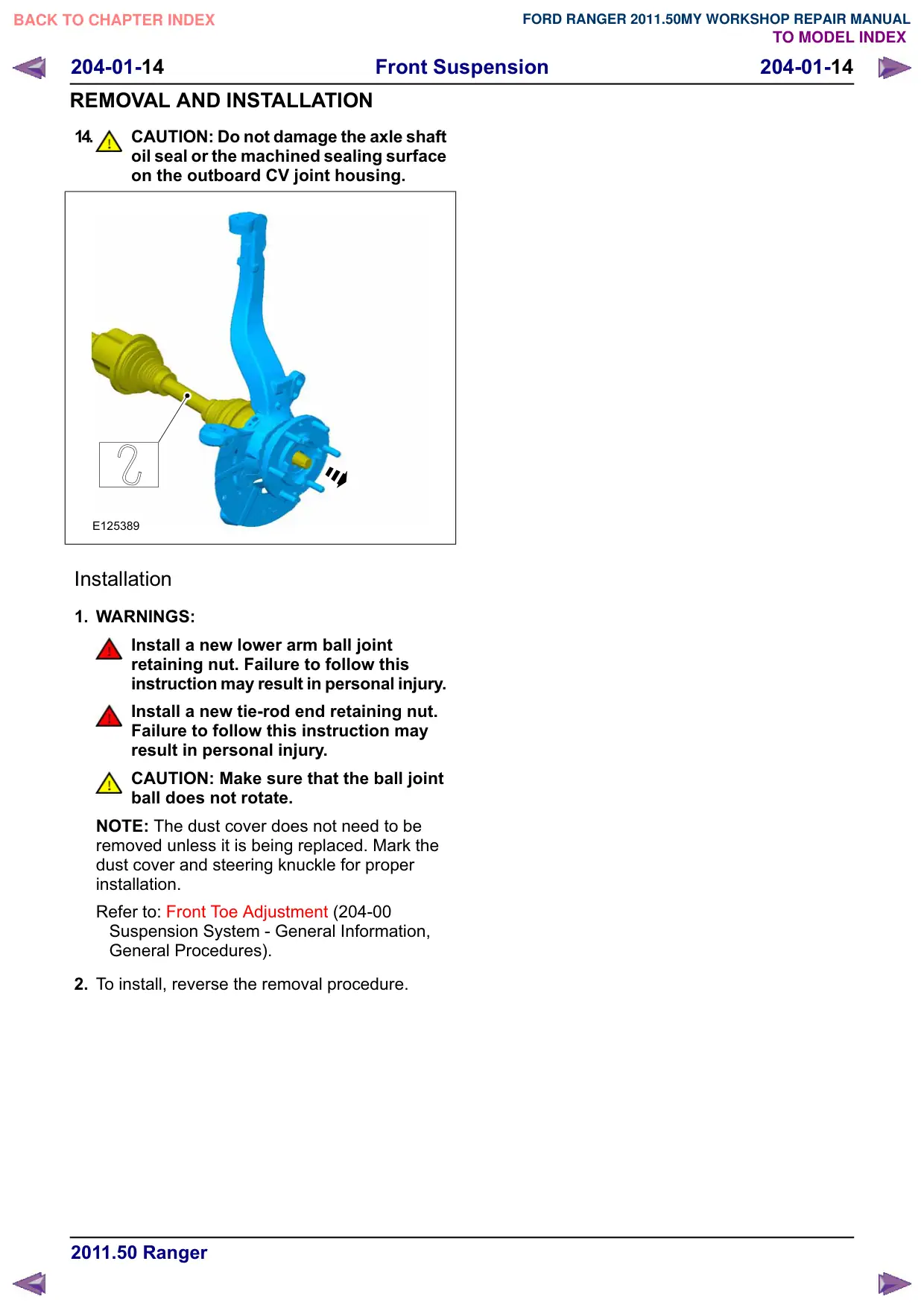

Front Suspension 204-01-14 204-01-14 REMOVAL AND INSTALLATION 14. CAUTION: Do not damage the axle shaft oil seal or the machined sealing surface on the outboard CV joint housing. E125389 Installation 1. WARNINGS: Install a new lower arm ball joint retaining nut. Failure to follow this instruction may result in personal injury. Install a new tie-rod end retaining nut. Failure to follow this instruction may result in personal injury. CAUTION: Make sure that the ball joint ball does not rotate. NOTE: The dust cover does not need to be removed unless it is being replaced. Mark the dust cover and steering knuckle for proper installation. Refer to: Front Toe Adjustment (204-00 Suspension System - General Information, General Procedures). 2. To install, reverse the removal procedure.
