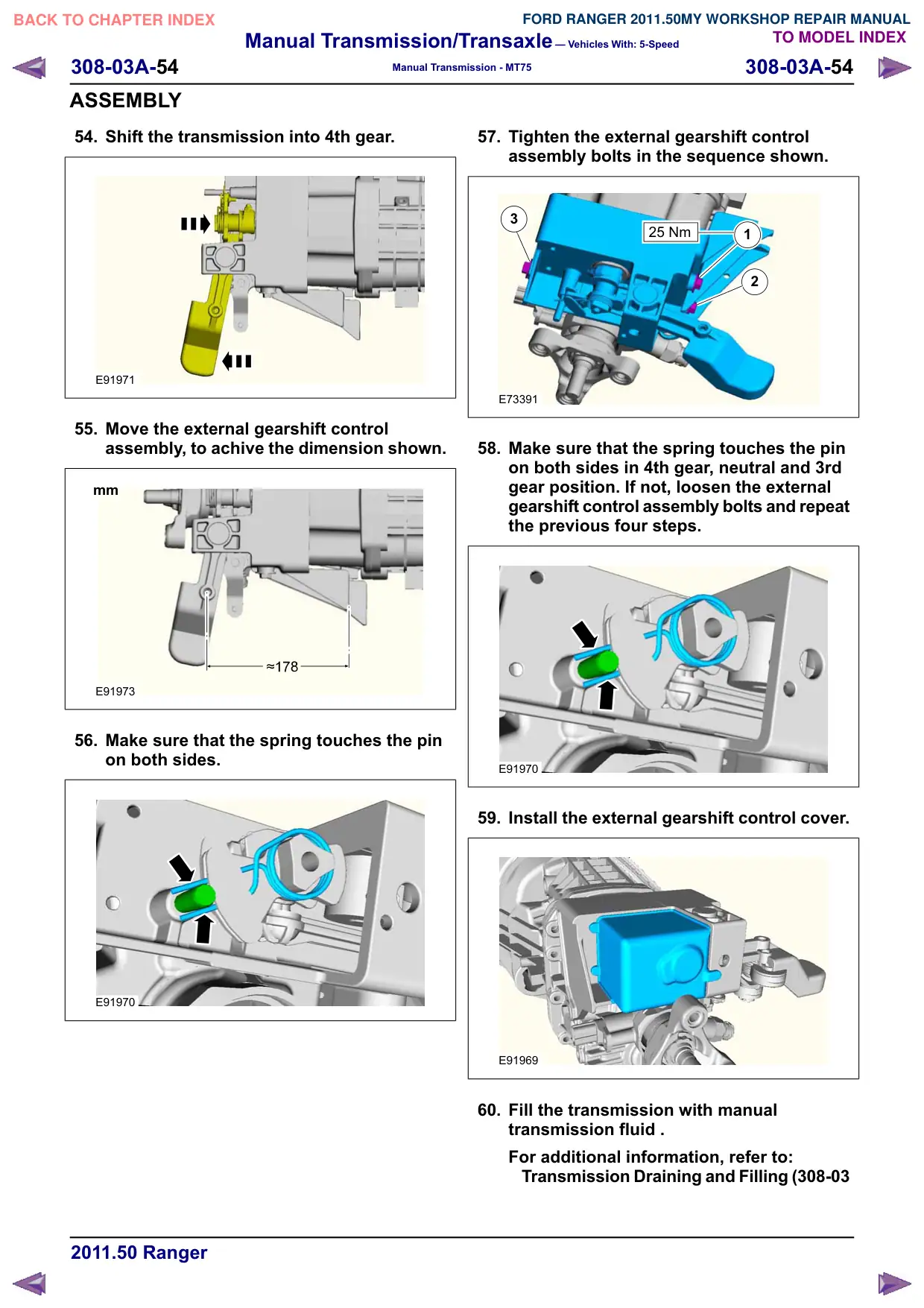

Manual Transmission/Transaxle – Vehicles With: 5-Speed 308-03A-54 308-03A-54 Manual Transmission - MT75 ASSEMBLY 54. Shift the transmission into 4th gear. E91971 55. Move the external gearshift control assembly, to achive the dimension shown. mm mm E91973 56. Make sure that the spring touches the pin on both sides. E91970 57. Tighten the external gearshift control assembly bolts in the sequence shown. 3 25 Nm 25 Nm 1 2 E73391 58. Make sure that the spring touches the pin on both sides in 4th gear, neutral and 3rd gear position. If not, loosen the external gearshift control assembly bolts and repeat the previous four steps. E91970 59. Install the external gearshift control cover. E91969 60. Fill the transmission with manual transmission fluid . For additional information, refer to: Transmission Draining and Filling (308-03
