Manual Transmission/Transaxle – Vehicles With: 5-Speed
308-03A-53
308-03A-53

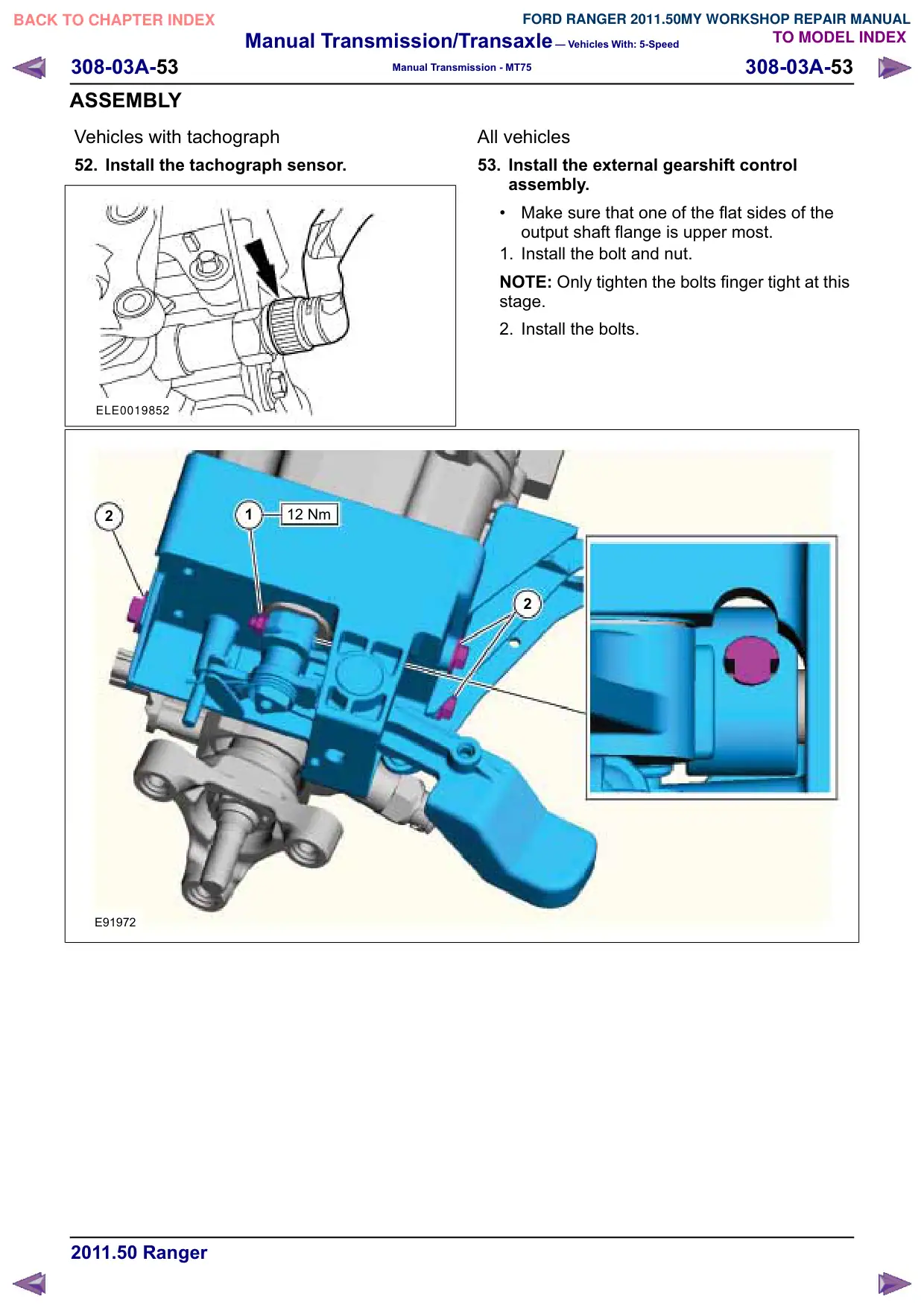

Manual Transmission - MT75
ASSEMBLY
Vehicles with tachograph
52. Install the tachograph sensor.
ELE0019852
2
1
12 Nm
E91972
All vehicles
53. Install the external gearshift control
assembly.
Make sure that one of the flat sides of the
output shaft flange is upper most.
1. Install the bolt and nut.
NOTE: Only tighten the bolts finger tight at this
stage.
2. Install the bolts.
2
