Engrenagem intermediária da ré

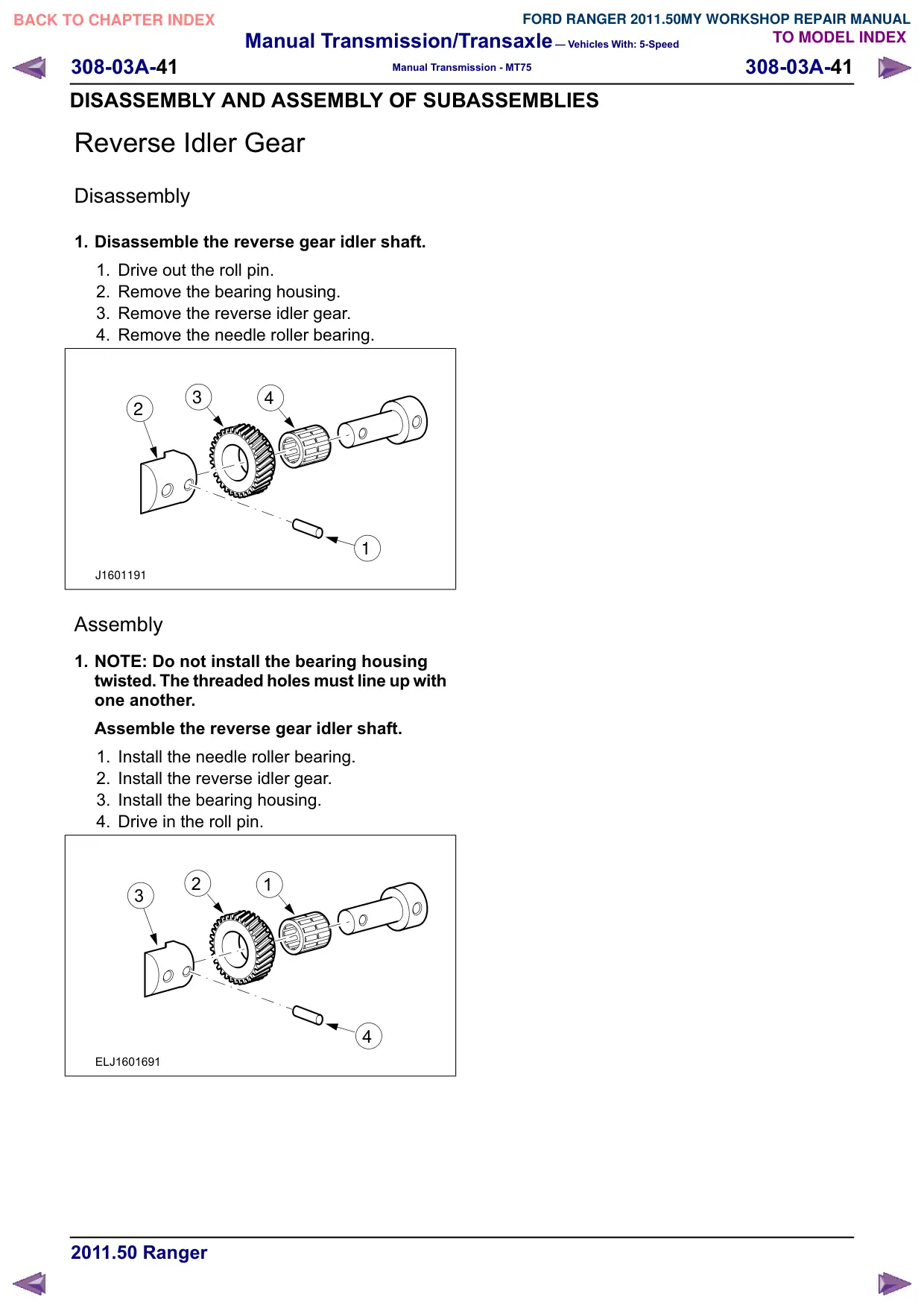

Manual Transmission/Transaxle – Vehicles With: 5-Speed 308-03A-41 308-03A-41 Manual Transmission - MT75 DISASSEMBLY AND ASSEMBLY OF SUBASSEMBLIES Reverse Idler Gear Disassembly 1. Disassemble the reverse gear idler shaft. 1. Drive out the roll pin. 2. Remove the bearing housing. 3. Remove the reverse idler gear. 4. Remove the needle roller bearing. 3 4 2 1 J1601191 Assembly 1. NOTE: Do not install the bearing housing twisted. The threaded holes must line up with one another. Assemble the reverse gear idler shaft. 1. Install the needle roller bearing. 2. Install the reverse idler gear. 3. Install the bearing housing. 4. Drive in the roll pin. 2 1 3 4 ELJ1601691
