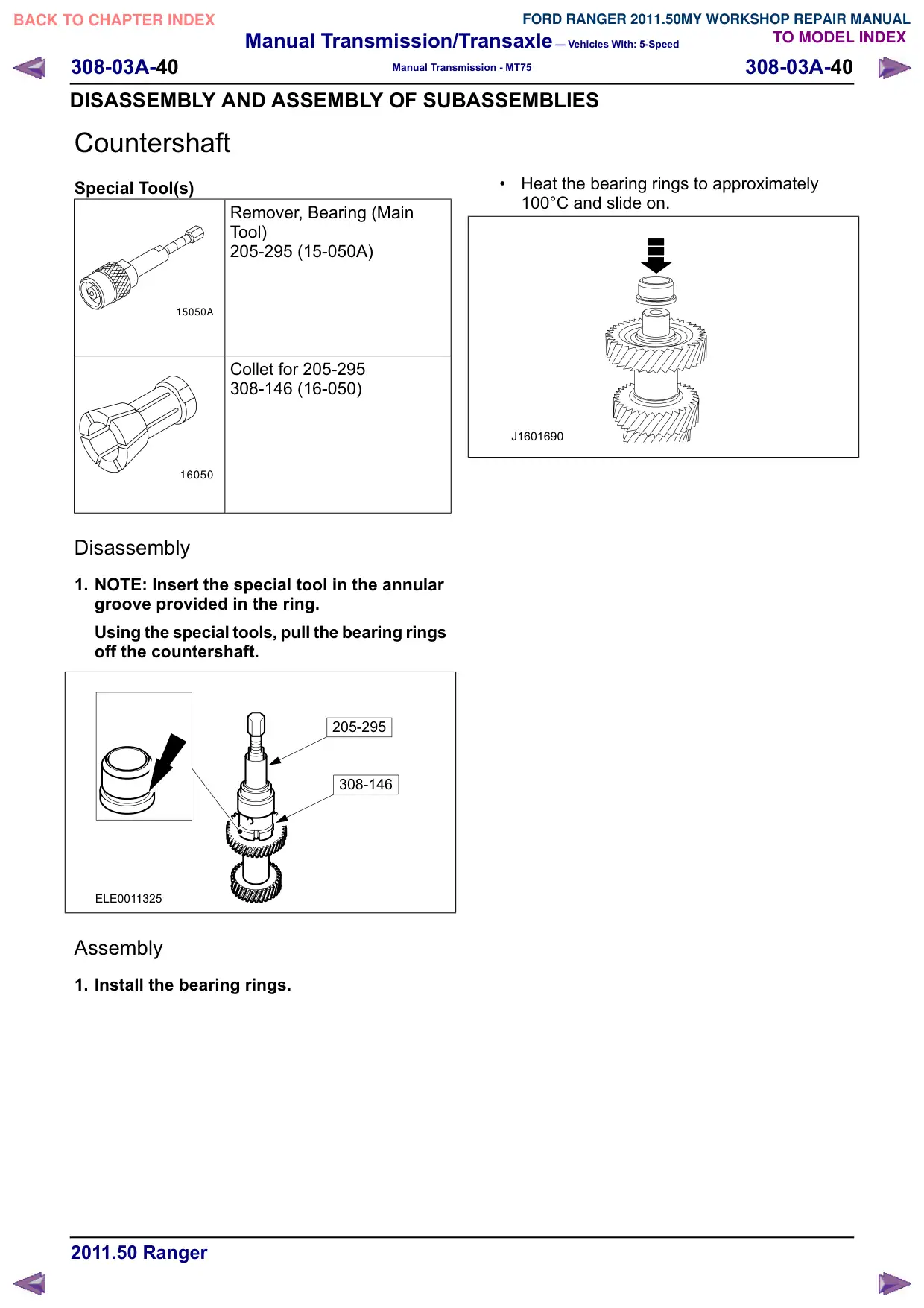

Manual Transmission/Transaxle – Vehicles With: 5-Speed
308-03A-40
308-03A-40
Manual Transmission - MT75
DISASSEMBLY AND ASSEMBLY OF SUBASSEMBLIES
Countershaft
Special Tool(s)
Remover, Bearing (Main
Tool)
205-295 (15-050A)
15050A
Collet for 205-295
308-146 (16-050)
16050
Disassembly
1. NOTE: Insert the special tool in the annular
groove provided in the ring.
Using the special tools, pull the bearing rings
off the countershaft.
205-295
308-146
ELE0011325
Assembly
1. Install the bearing rings.
Heat the bearing rings to approximately
100°C and slide on.
J1601690
