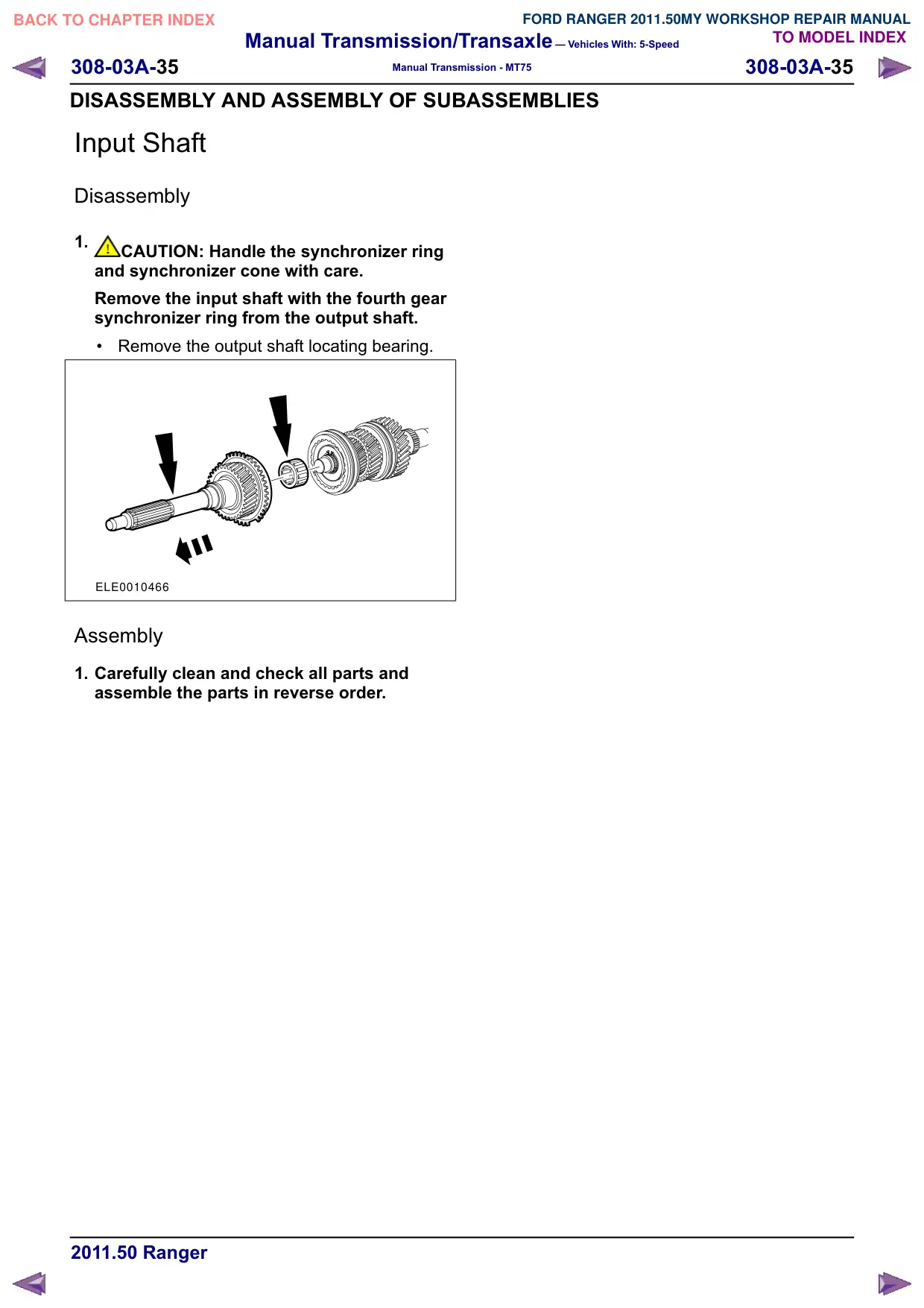

Manual Transmission/Transaxle – Vehicles With: 5-Speed
308-03A-35
308-03A-35
Manual Transmission - MT75
DISASSEMBLY AND ASSEMBLY OF SUBASSEMBLIES
Input Shaft
Disassembly
1.
CAUTION: Handle the synchronizer ring
and synchronizer cone with care.
Remove the input shaft with the fourth gear
synchronizer ring from the output shaft.
Remove the output shaft locating bearing.
ELE0010466
Assembly
1. Carefully clean and check all parts and
assemble the parts in reverse order.
