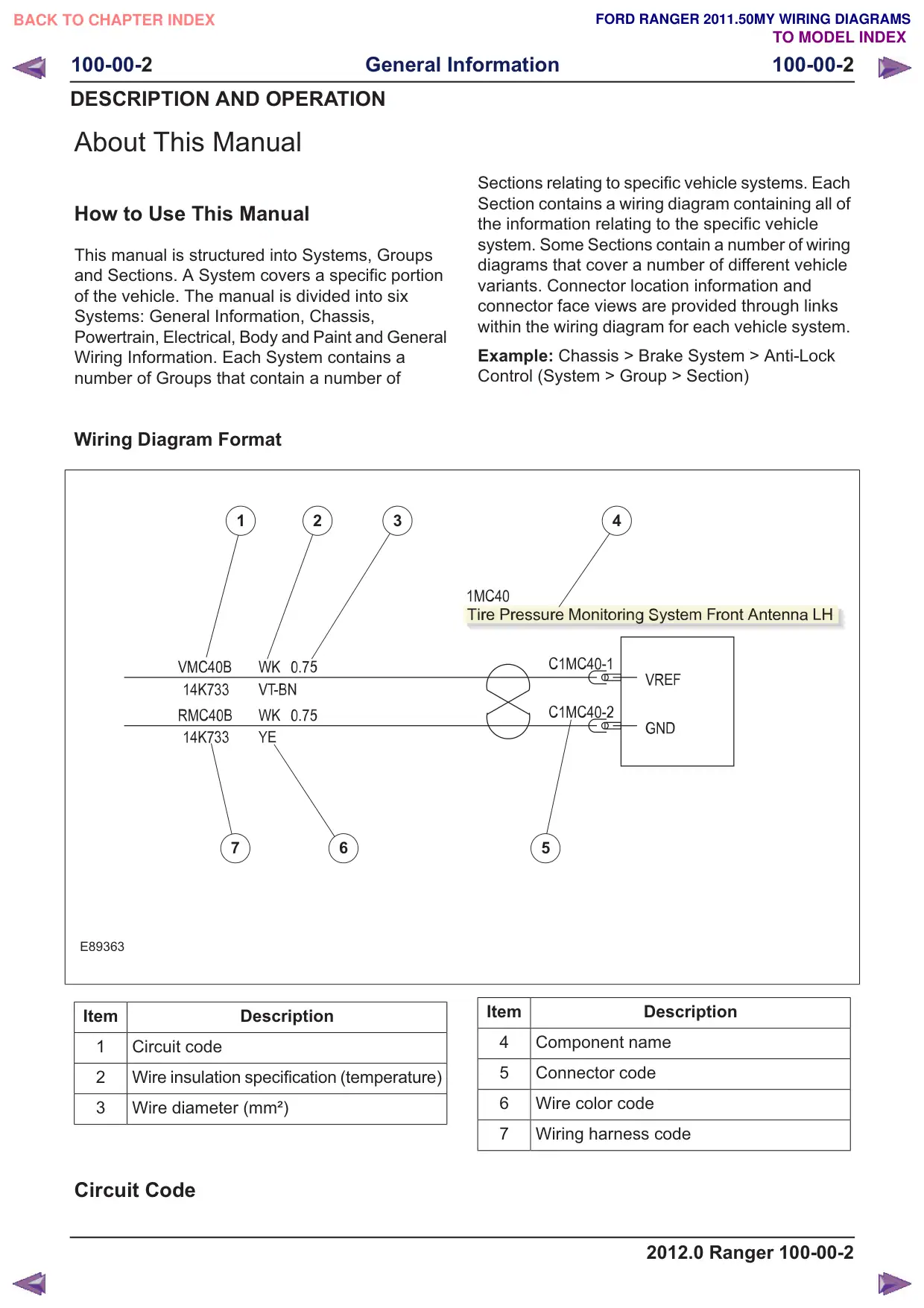

100-00-2 General Information 100-00-2 DESCRIPTION AND OPERATION About This Manual How to Use This Manual This manual is structured into Systems, Groups and Sections. A System covers a specific portion of the vehicle. The manual is divided into six Systems: General Information, Chassis, Powertrain, Electrical, Body and Paint and General Wiring Information. Each System contains a number of Groups that contain a number of Wiring Diagram Format 1 2 3 7 6 E89363 Item Description 1 Circuit code 2 Wire insulation specification (temperature) 3 Wire diameter (mm²) Circuit Code Sections relating to specific vehicle systems. Each Section contains a wiring diagram containing all of the information relating to the specific vehicle system. Some Sections contain a number of wiring diagrams that cover a number of different vehicle variants. Connector location information and connector face views are provided through links within the wiring diagram for each vehicle system. Example: Chassis > Brake System > Anti-Lock Control (System > Group > Section) 4 5 Item Description 4 Component name 5 Connector code 6 Wire color code 7 Wiring harness code 2012.0 Ranger 100-00-2
