Painel traseiro – Cabine dupla

Back Panel – Double Cab

Carroceria · página 457 de 566 · 501-30-5 · parte 1 de 3

Página 457 do Manual de Carroceria: Painel traseiro – Cabine dupla

Explicar no Gemini Ampliar imagem Traduzir texto

Texto da página

Link desta página: https://ranger.mbrace.com.br/carroceria/457
Imagem: https://ranger.mbrace.com.br/img/carroceria/457.webp

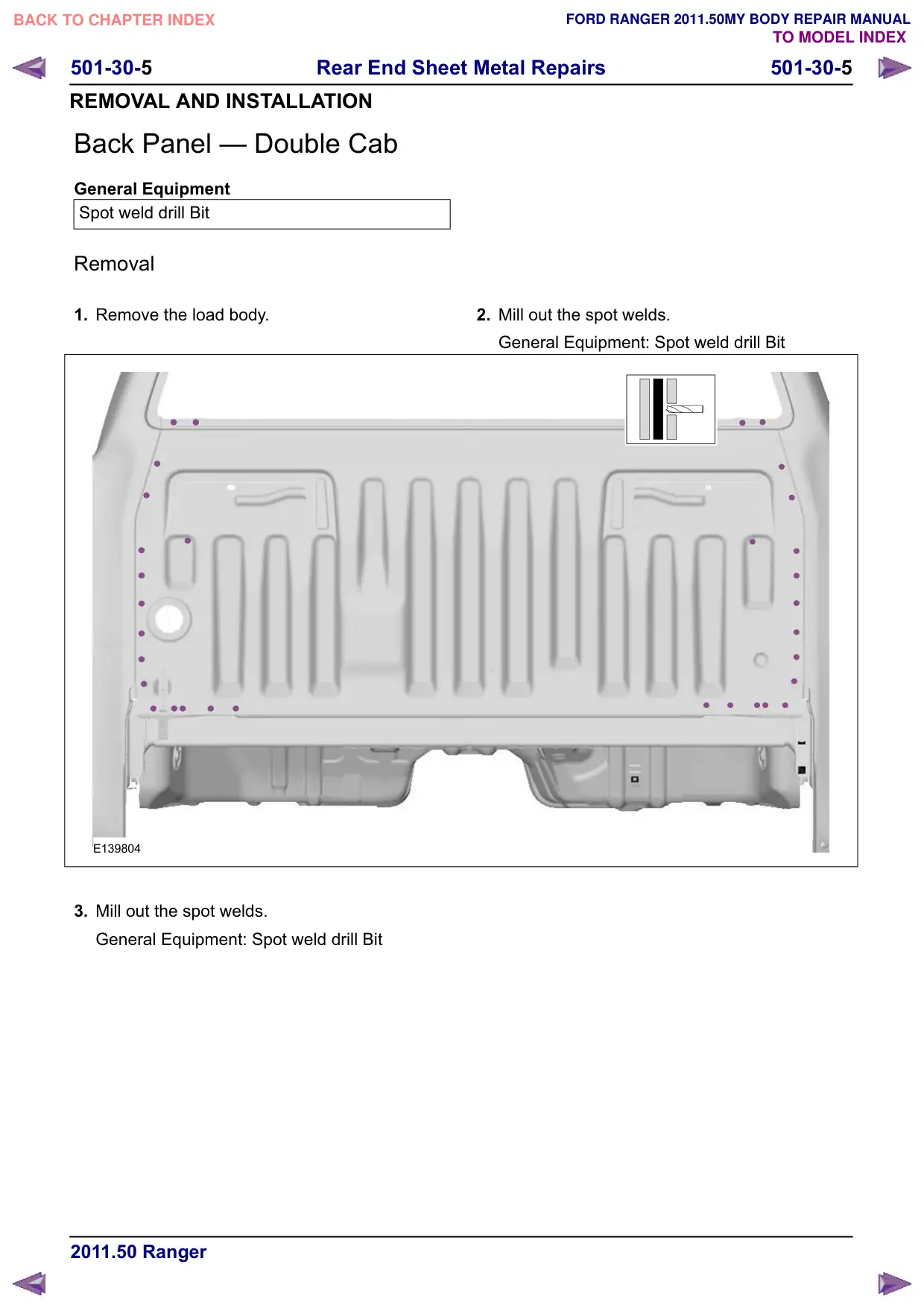

501-30-5 Rear End Sheet Metal Repairs 501-30-5 REMOVAL AND INSTALLATION Back Panel – Double Cab General Equipment Spot weld drill Bit Removal 1. Remove the load body. E139804 3. Mill out the spot welds. General Equipment: Spot weld drill Bit 2. Mill out the spot welds. General Equipment: Spot weld drill Bit
