Acabamento inferior da coluna B

B-Pillar Lower Trim Panel

Carroceria · página 43 de 566 · 501-05-4

Página 43 do Manual de Carroceria: Acabamento inferior da coluna B

Explicar no Gemini Ampliar imagem Traduzir texto

Texto da página

Link desta página: https://ranger.mbrace.com.br/carroceria/43
Imagem: https://ranger.mbrace.com.br/img/carroceria/43.webp

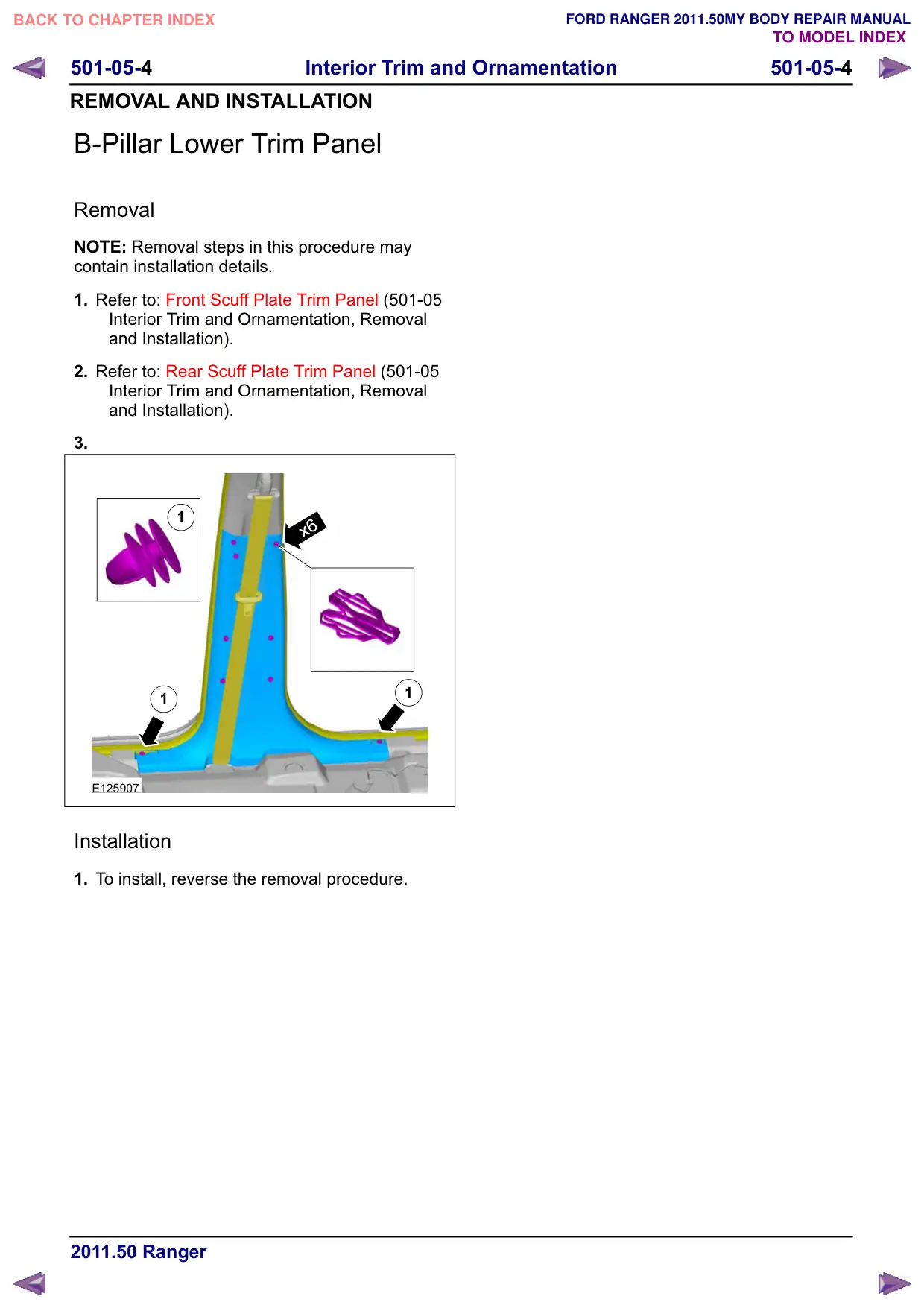

501-05-4 Interior Trim and Ornamentation 501-05-4 REMOVAL AND INSTALLATION B-Pillar Lower Trim Panel Removal NOTE: Removal steps in this procedure may contain installation details. 1. Refer to: Front Scuff Plate Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation). 2. Refer to: Rear Scuff Plate Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation). 3. 1 x6 1 1 E125907 Installation 1. To install, reverse the removal procedure.
