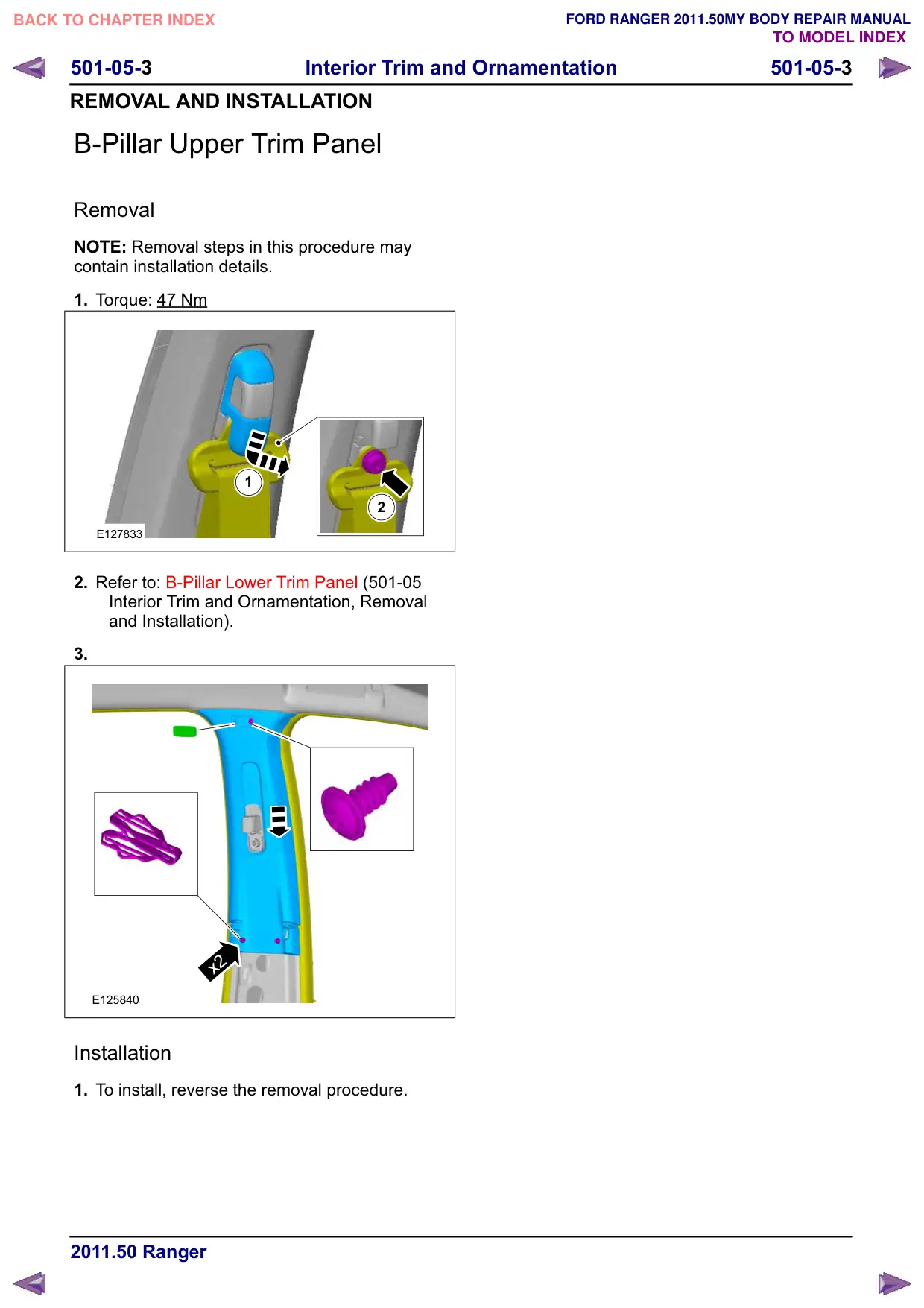

Acabamento superior da coluna B

B-Pillar Upper Trim Panel

Carroceria · página 42 de 566 · 501-05-3

Página 42 do Manual de Carroceria: Acabamento superior da coluna B

Explicar no Gemini Ampliar imagem Traduzir texto

Texto da página

Link desta página: https://ranger.mbrace.com.br/carroceria/42
Imagem: https://ranger.mbrace.com.br/img/carroceria/42.webp

501-05-3 Interior Trim and Ornamentation 501-05-3 REMOVAL AND INSTALLATION B-Pillar Upper Trim Panel Removal NOTE: Removal steps in this procedure may contain installation details. 1. Torque: 47 Nm 1 2 E127833 2. Refer to: B-Pillar Lower Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation). 3. x2 E125840 Installation 1. To install, reverse the removal procedure.
