Verificação de tolerâncias do chassi

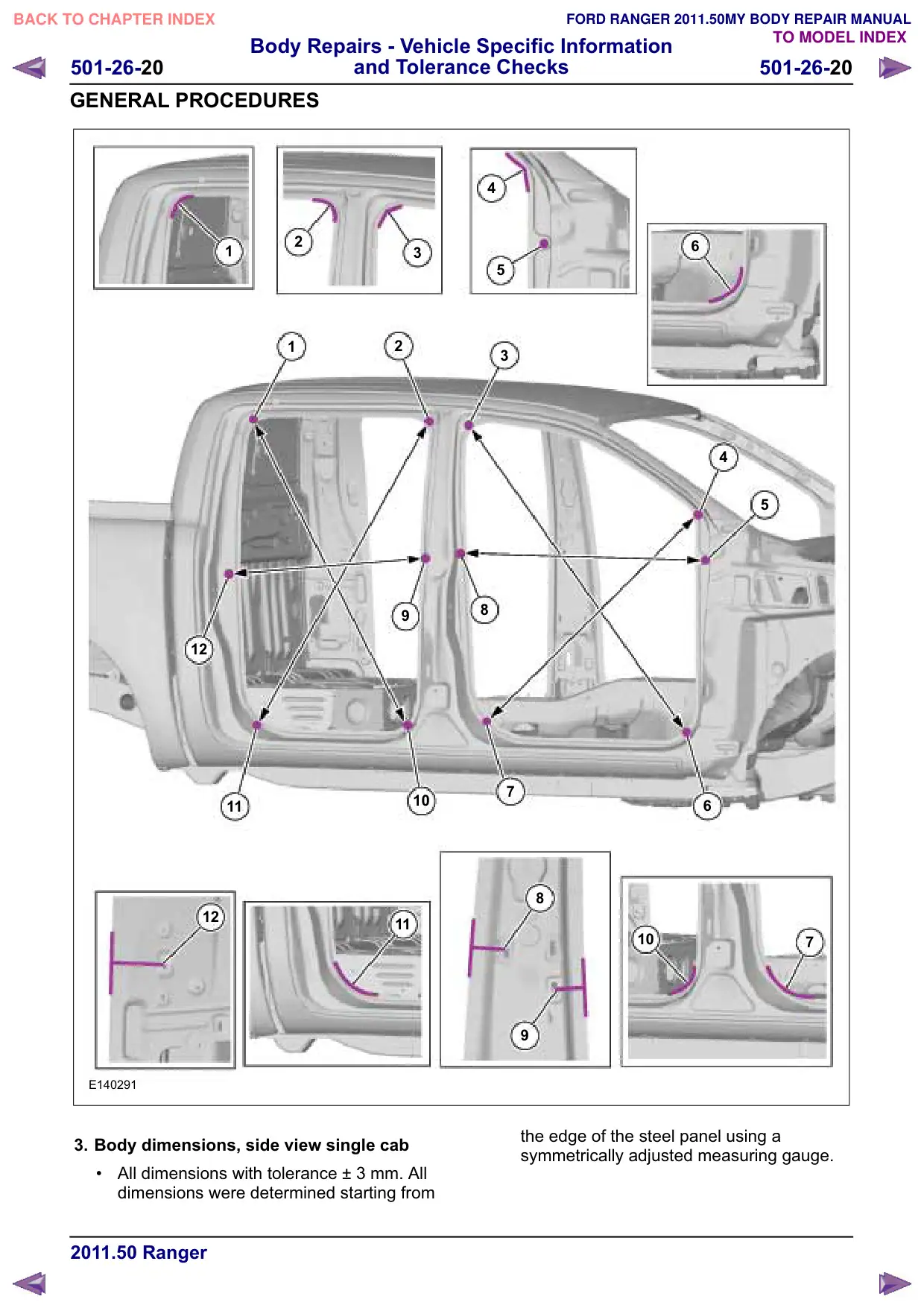

Body Repairs - Vehicle Specific Information 501-26-19 and Tolerance Checks 501-26-19 GENERAL PROCEDURES the edge of the steel panel using a symmetrically adjusted measuring gauge. ‡ Measuring points 1, 2, 3, 4, 6, 7, 10 and 11 are measured in the curve and represent the greatest distance to the measuring point opposite. ‡ The detailed views of measuring points 8, 9 and 12 are shown looking from the vehicle interior outwards. ‡ The detailed view of measuring point 5 is measured in the hole and represent the greatest distance to the measuring point opposite. Measuring points and dimensions 1 - 10 XX mm 4 - 7 XX mm 2 - 11 XX mm 5 - 8 XX mm 3 - 6 XX mm 9 - 12 XX mm
