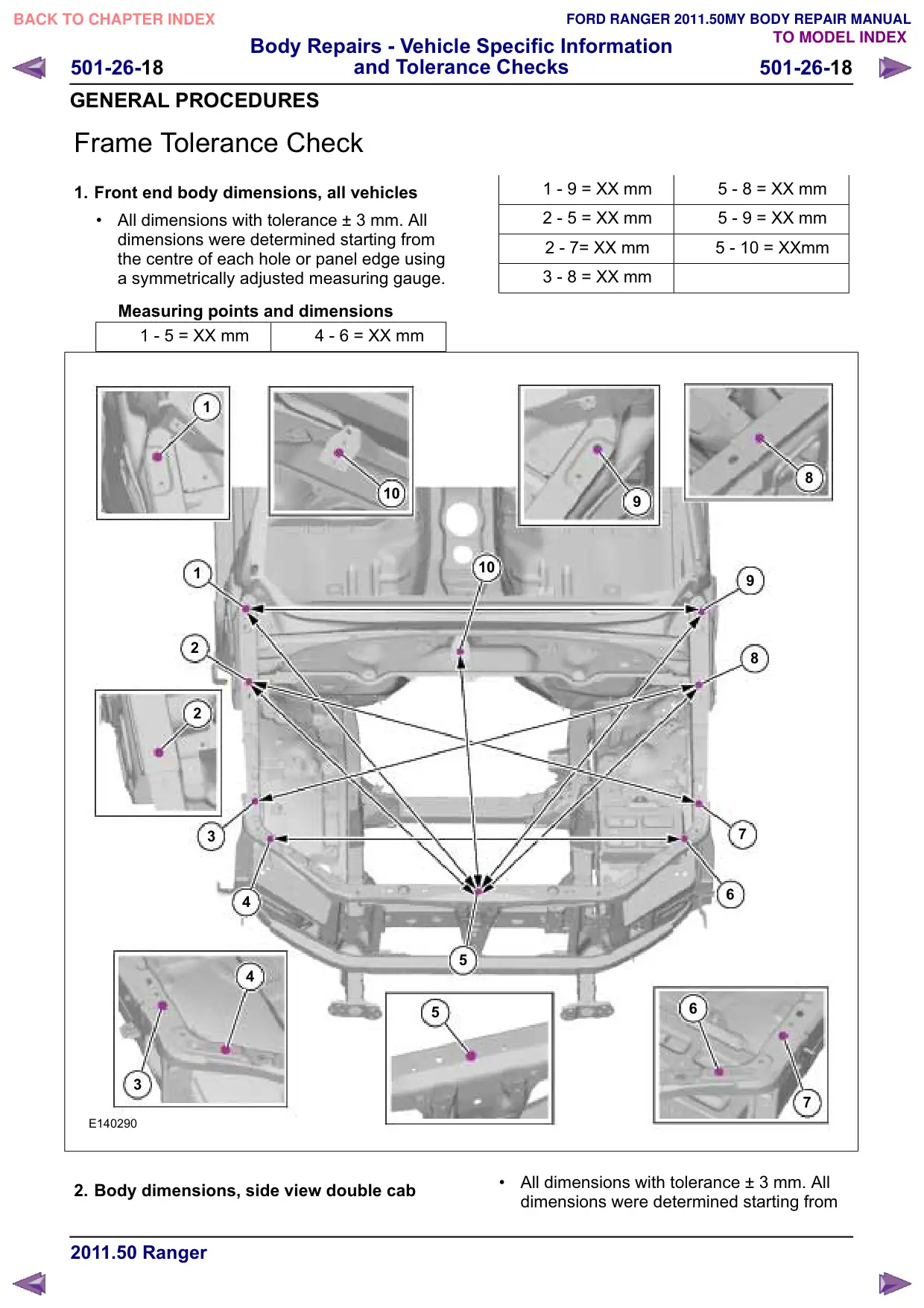

Body Repairs - Vehicle Specific Information 501-26-18 and Tolerance Checks 501-26-18 GENERAL PROCEDURES Frame Tolerance Check 1. Front end body dimensions, all vehicles ‡ All dimensions with tolerance ± 3 mm. All dimensions were determined starting from the centre of each hole or panel edge using a symmetrically adjusted measuring gauge. Measuring points and dimensions 1 - 5 XX mm 4 - 6 XX mm 1 10 1 2 2 3 4 4 3 E140290 2. Body dimensions, side view double cab 1 - 9 XX mm 5 - 8 XX mm 2 - 5 XX mm 5 - 9 XX mm 2 - 7 XX mm 5 - 10 XXmm 3 - 8 XX mm 8 10 8 7 6 5 6 5 7 ‡ All dimensions with tolerance ± 3 mm. All dimensions were determined starting from
