Inicialização do motor do vidro da porta
Door Window Motor Initialization

Texto da página
Link desta página: https://ranger.mbrace.com.br/carroceria/103
Imagem: https://ranger.mbrace.com.br/img/carroceria/103.webp
501-11-4
Glass, Frames and Mechanisms
501-11-4
GENERAL PROCEDURES

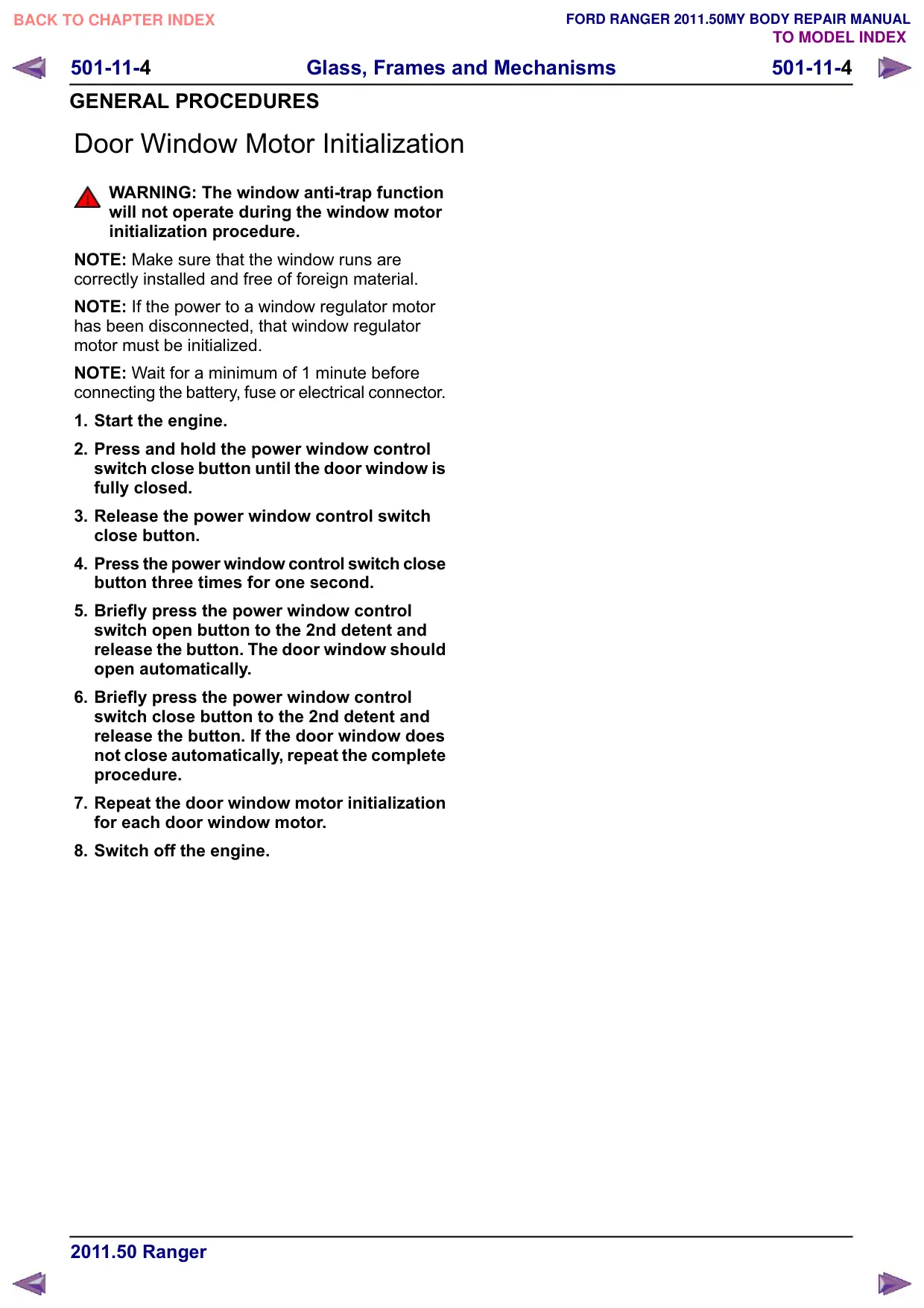

Door Window Motor Initialization
WARNING: The window anti-trap function
will not operate during the window motor
initialization procedure.
NOTE: Make sure that the window runs are
correctly installed and free of foreign material.
NOTE: If the power to a window regulator motor
has been disconnected, that window regulator
motor must be initialized.
NOTE: Wait for a minimum of 1 minute before
connecting the battery, fuse or electrical connector.
1. Start the engine.
2. Press and hold the power window control
switch close button until the door window is
fully closed.
3. Release the power window control switch
close button.
4. Press the power window control switch close
button three times for one second.
5. Briefly press the power window control
switch open button to the 2nd detent and
release the button. The door window should
open automatically.
6. Briefly press the power window control
switch close button to the 2nd detent and
release the button. If the door window does
not close automatically, repeat the complete
procedure.
7. Repeat the door window motor initialization
for each door window motor.
8. Switch off the engine.
