310-00A Combustível – informações gerais 2.5

Fuel System - General Information – 2.5L Duratec-HE 310-00A-1 310-00A-1 (122kW/165PS) - MI4 . SECTION 310-00A Fuel System - General Information – 2.5L Duratec-HE (122kW/165PS) - MI4 VEHICLE APPLICATION: 2011.50 Ranger CONTENTS GENERAL PROCEDURES Fuel System Pressure Release.......................................................................................... Fuel Tank Draining.............................................................................................................. Spring Lock Couplings........................................................................................................ PAGE 310-00A-2 310-00A-4 310-00A-7

Fuel System - General Information – 2.5L Duratec-HE 310-00A-2 310-00A-2 (122kW/165PS) - MI4 GENERAL PROCEDURES Fuel System Pressure Release Activation WARNINGS: Do not smoke, carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury. Before working on or disconnecting any of the fuel tubes or fuel system components, relieve the fuel system pressure to prevent accidental spraying of fuel. Fuel in the fuel system remains under high pressure, even when the engine is not running. Failure to follow this instruction may result in serious personal injury. Do not carry personal electronic devices such as cell phones, pagers or audio equipment of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury. When handling fuel, always observe fuel handling precautions and be prepared in the event of fuel spillage. Spilled fuel may be ignited by hot vehicle components or other ignition sources. Failure to follow these instructions may result in serious personal injury. 1. Refer to: Petrol and Petrol-Ethanol Fuel Systems Health and Safety Precautions (100-00 General Information, Description and Operation). 2. NOTE: The front passenger door frame scuff plate is retained only by internal metal clips. NOTE: The front passenger door side interior kick panel is retained only by internal metal clips. NOTE: It may be necessary to reposition the lower end of the door jam weatherstripping to remove the front passenger door side interior kick panel. Refer to: Cowl Side Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation). 3. Disconnect the Inertia Fuel Shutoff (IFS) switch electrical connector. 1 2 E131170 4. Start and run the engine at idle speed until the engine stops. 5. After the engine stalls, crank the engine for approximately 5 seconds to make sure the fuel rail pressure has been released. 6. Turn the ignition switch to the OFF position.

Fuel System - General Information – 2.5L Duratec-HE 310-00A-3 310-00A-3 (122kW/165PS) - MI4 GENERAL PROCEDURES 7. When the fuel system service is complete, reconnect the Inertia Fuel Shutoff (IFS) switch electrical connector. 1 2 E131170 8. NOTE: It may take more than one key cycle to pressurize the fuel system. Cycle the ignition key and wait 3 seconds to pressurize the fuel system. Check for leaks before starting the engine. 9. Start the vehicle and check the fuel system for leaks. 10.NOTE: The front passenger door frame scuff plate is retained only by internal metal clips. NOTE: The front passenger door side interior kick panel is retained only by internal metal clips. NOTE: It may be necessary to reposition the lower end of the door jam weatherstripping to remove the front passenger door side interior kick panel. Install the front passenger side interior kick panel and the front passenger door frame scuff plate. Refer to: Cowl Side Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

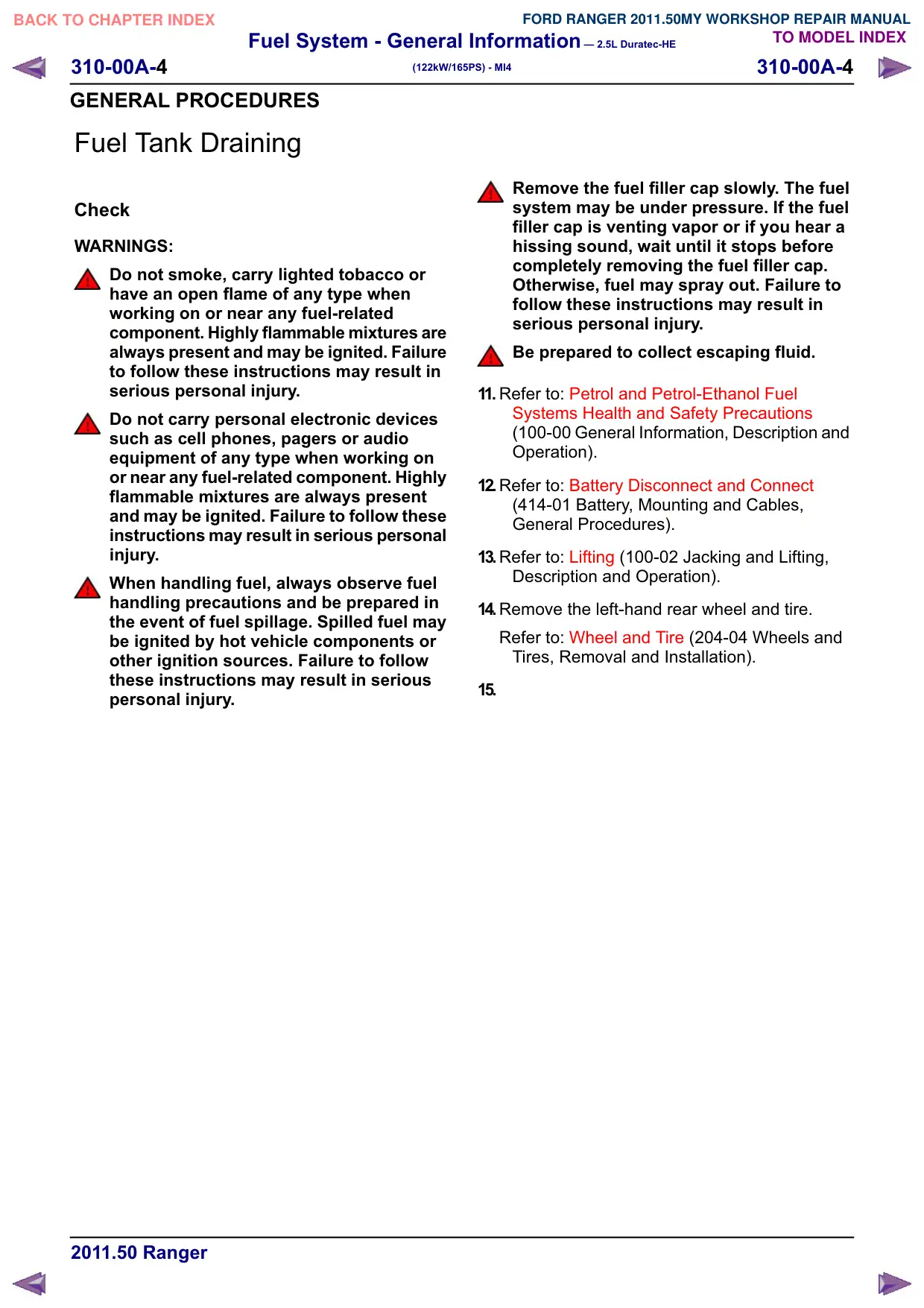

Fuel System - General Information – 2.5L Duratec-HE 310-00A-4 310-00A-4 (122kW/165PS) - MI4 GENERAL PROCEDURES Fuel Tank Draining Check WARNINGS: Do not smoke, carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury. Do not carry personal electronic devices such as cell phones, pagers or audio equipment of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury. When handling fuel, always observe fuel handling precautions and be prepared in the event of fuel spillage. Spilled fuel may be ignited by hot vehicle components or other ignition sources. Failure to follow these instructions may result in serious personal injury. Remove the fuel filler cap slowly. The fuel system may be under pressure. If the fuel filler cap is venting vapor or if you hear a hissing sound, wait until it stops before completely removing the fuel filler cap. Otherwise, fuel may spray out. Failure to follow these instructions may result in serious personal injury. Be prepared to collect escaping fluid. 11. Refer to: Petrol and Petrol-Ethanol Fuel Systems Health and Safety Precautions (100-00 General Information, Description and Operation). 12.Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures). 13.Refer to: Lifting (100-02 Jacking and Lifting, Description and Operation). 14.Remove the left-hand rear wheel and tire. Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and Installation). 15.

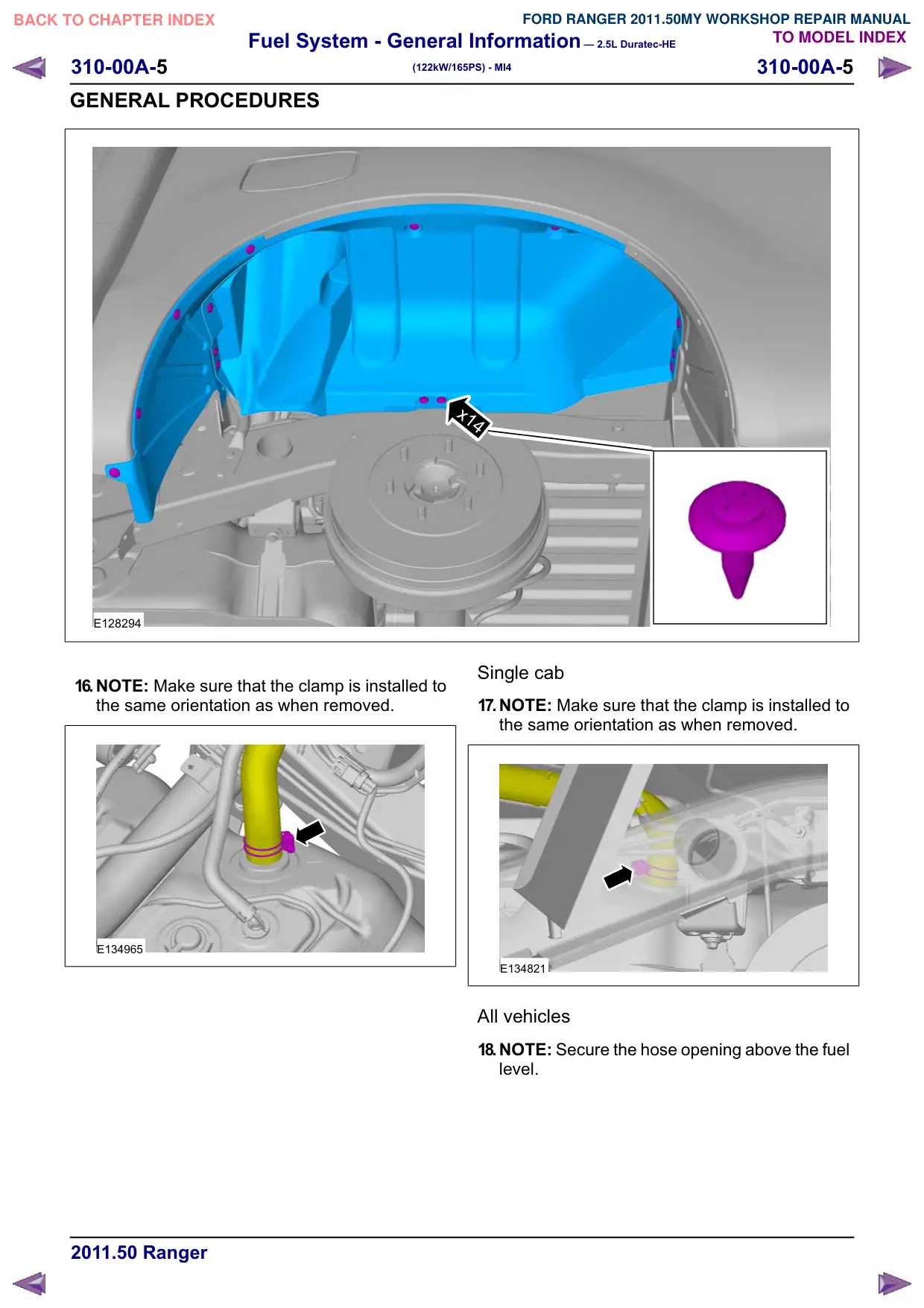

Fuel System - General Information – 2.5L Duratec-HE 310-00A-5 310-00A-5 (122kW/165PS) - MI4 GENERAL PROCEDURES E128294 16.NOTE: Make sure that the clamp is installed to the same orientation as when removed. E134965 x14 Single cab 17.NOTE: Make sure that the clamp is installed to the same orientation as when removed. E134821 All vehicles 18.NOTE: Secure the hose opening above the fuel level.

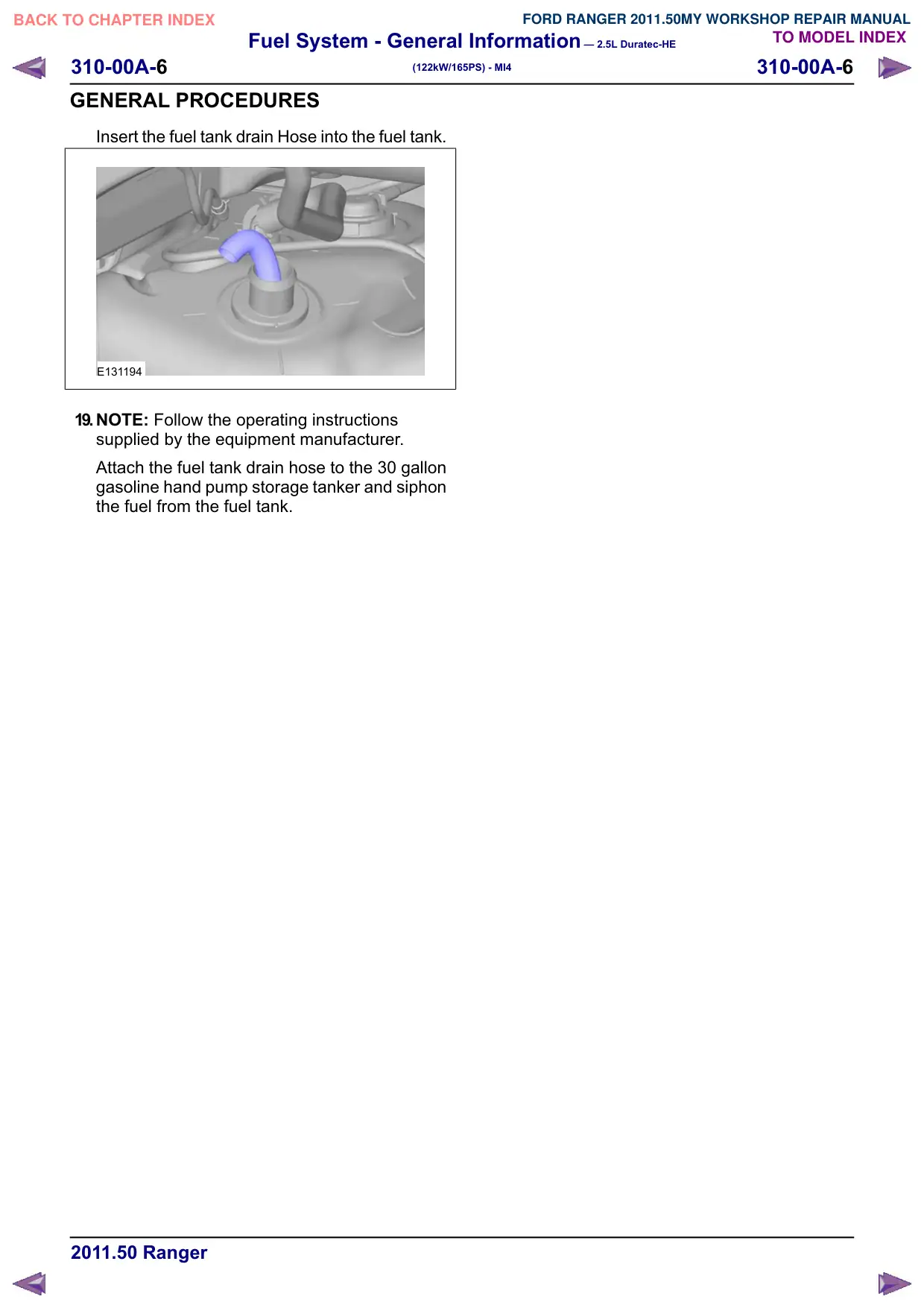

Fuel System - General Information – 2.5L Duratec-HE 310-00A-6 310-00A-6 (122kW/165PS) - MI4 GENERAL PROCEDURES Insert the fuel tank drain Hose into the fuel tank. E131194 19.NOTE: Follow the operating instructions supplied by the equipment manufacturer. Attach the fuel tank drain hose to the 30 gallon gasoline hand pump storage tanker and siphon the fuel from the fuel tank.

Fuel System - General Information – 2.5L Duratec-HE 310-00A-7 310-00A-7 (122kW/165PS) - MI4 GENERAL PROCEDURES Spring Lock Couplings Activation WARNINGS: Do not smoke, carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury. Before working on or disconnecting any of the fuel tubes or fuel system components, relieve the fuel system pressure to prevent accidental spraying of fuel. Fuel in the fuel system remains under high pressure, even when the engine is not running. Failure to follow this instruction may result in serious personal injury. Do not carry personal electronic devices such as cell phones, pagers or audio equipment of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury. When handling fuel, always observe fuel handling precautions and be prepared in the event of fuel spillage. Spilled fuel may be ignited by hot vehicle components or other ignition sources. Failure to follow these instructions may result in serious personal injury. Remove the fuel filler cap slowly. The fuel system may be under pressure. If the fuel filler cap is venting vapor or if you hear a hissing sound, wait until it stops before completely removing the fuel filler cap. Otherwise, fuel may spray out. Failure to follow these instructions may result in serious personal injury. NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes. NOTE: When reusing liquid or vapor tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur. Apply clean engine oil to the end of the tube before inserting the tube into the connector. NOTE: Fuel supply line connectors are color coded white. Fuel return line connectors are color coded red. 20.Refer to: Fuel System Pressure Release (310-00 Fuel System - General Information - 2.5L Duratec-HE (122kW/165PS) - MI4, General Procedures). 21.Refer to: Petrol and Petrol-Ethanol Fuel Systems Health and Safety Precautions (100-00 General Information, Description and Operation). 22.Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures). 23.Refer to: Lifting (100-02 Jacking and Lifting, Description and Operation). 24.If equipped, remove the fuel tube safety clip. E131223 25. E131224

Fuel System - General Information – 2.5L Duratec-HE 310-00A-8 310-00A-8 (122kW/165PS) - MI4 GENERAL PROCEDURES 26. E131225 27. E131226
