418-00-1 Module Communications Network 418-00-1 . SECTION 418-00 Module Communications Network VEHICLE APPLICATION: 2012.0 Ranger CONTENTS ELECTRICAL SCHEMATICS Diagnostics......................................................................................................................... Communications Network - High-Speed (HS) Controller Area Network (CAN) Bus — Vehicles With: 5-Speed Manual Transmission - MT75/6-Speed Manual Transmission - MT82................................................................................................................................. Communications Network - High-Speed (HS) Controller Area Network (CAN) Bus — Vehicles With: 6-Speed Automatic Transaxle - 6R80....................................................... Communications Network - Mid-Speed (MS) Controller Area Network (CAN) Bus........... Communications Network - Multimedia (MM) Controller Area Network (CAN) Bus........... Communications Network - Local Interconnect Network (LIN) Bus — 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma/3.2L Duratorq-TDCi (148kW/200PS) - Puma, LHD 4WD/LHD RWD................................................................................................................................. Communications Network - Local Interconnect Network (LIN) Bus — 2.5L Duratec-HE (122kW/165PS) - MI4, LHD 4WD/LHD RWD................................................................... Communications Network - Local Interconnect Network (LIN) Bus — 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma/3.2L Duratorq-TDCi (148kW/200PS) - Puma, RHD 4WD/RHD RWD................................................................................................................................. Communications Network - Local Interconnect Network (LIN) Bus — 2.5L Duratec-HE (122kW/165PS) - MI4, RHD 4WD/RHD RWD.................................................................. ELECTRICAL CONNECTORS Central Junction Box (CJB) — A........................................................................................ Central Junction Box (CJB) — B........................................................................................ Central Junction Box (CJB) — C........................................................................................ Central Junction Box (CJB) — D........................................................................................ Central Junction Box (CJB) — E........................................................................................ Central Junction Box (CJB) — F........................................................................................ Central Junction Box (CJB) — G........................................................................................ Central Junction Box (CJB) — H........................................................................................ Data Link Connector (DLC)................................................................................................ Engine Junction Box (EJB)................................................................................................. Engine Junction Box (EJB) — A......................................................................................... PAGE 418-00-2 418-00-4 418-00-6 418-00-8 418-00-10 418-00-12 418-00-14 418-00-16 418-00-18 418-00-20 418-00-20 418-00-21 418-00-21 418-00-21 418-00-22 418-00-22 418-00-22 418-00-23 418-00-24 418-00-24

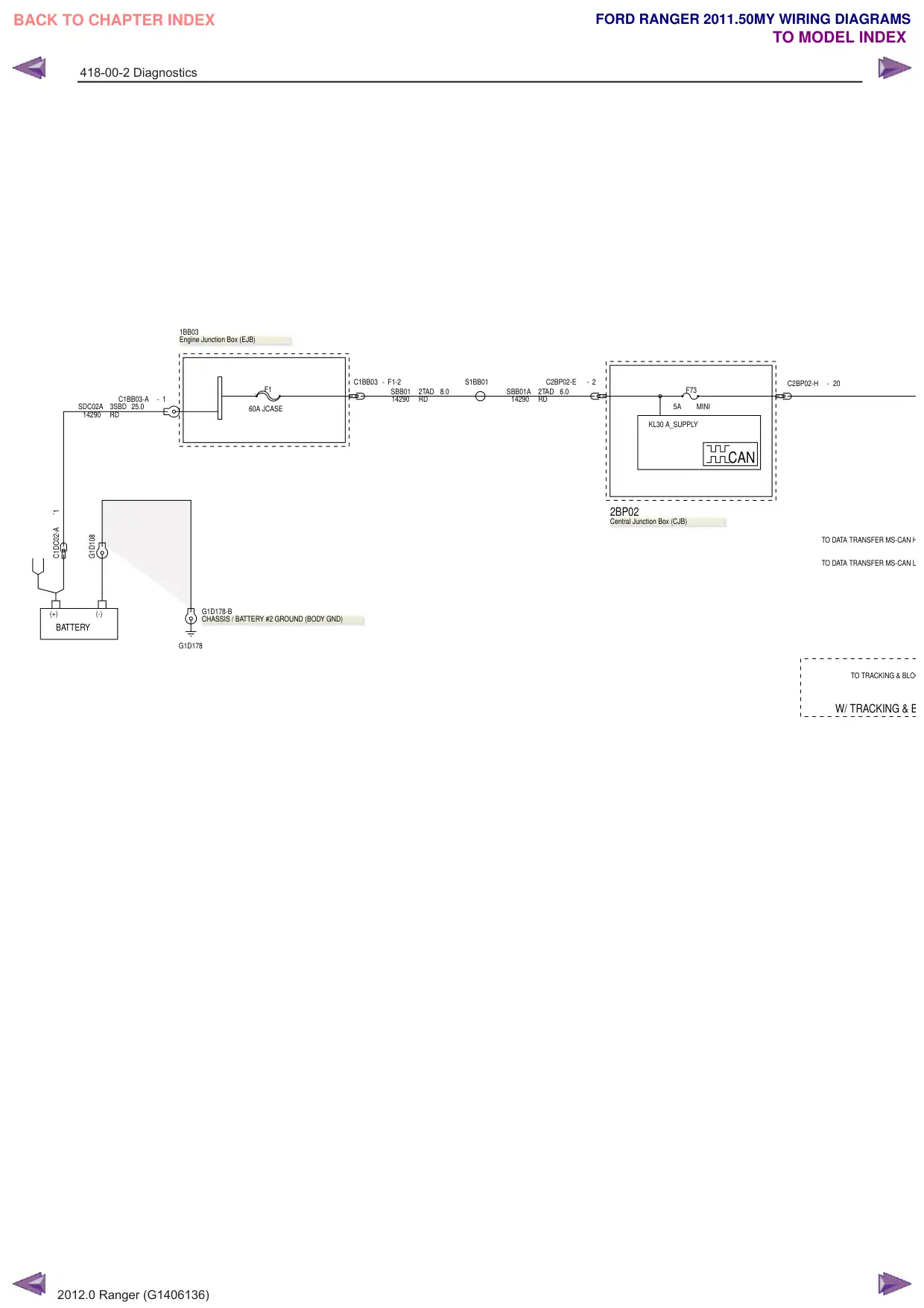

418-00-2 Diagnostics 1BB03 Engine Junction Box (EJB) C1BB03 - F1-2 F1 SBB01 2TAD + C1BB03-A - 1 14290 RD SDC02A 3SBD 25.0 60A JCASE 14290 RD 1 - C1DC02-A G1D108 (+) (-) G1D178-B CHASSIS / BATTERY #2 GROUND (BODY GND) BATTERY G1D178 2012.0 Ranger (G1406136) S1BB01 C2BP02-E - 2 C2BP02-H - 20 8.0 SBB01A 2TAD 6.0 F73 14290 RD 5A MINI KL30 A_SUPPLY CAN 2BP02 Central Junction Box (CJB) TO DATA TRANSFER MS-CAN H TO DATA TRANSFER MS-CAN L TO TRACKING & BLOC W/ TRACKING & B

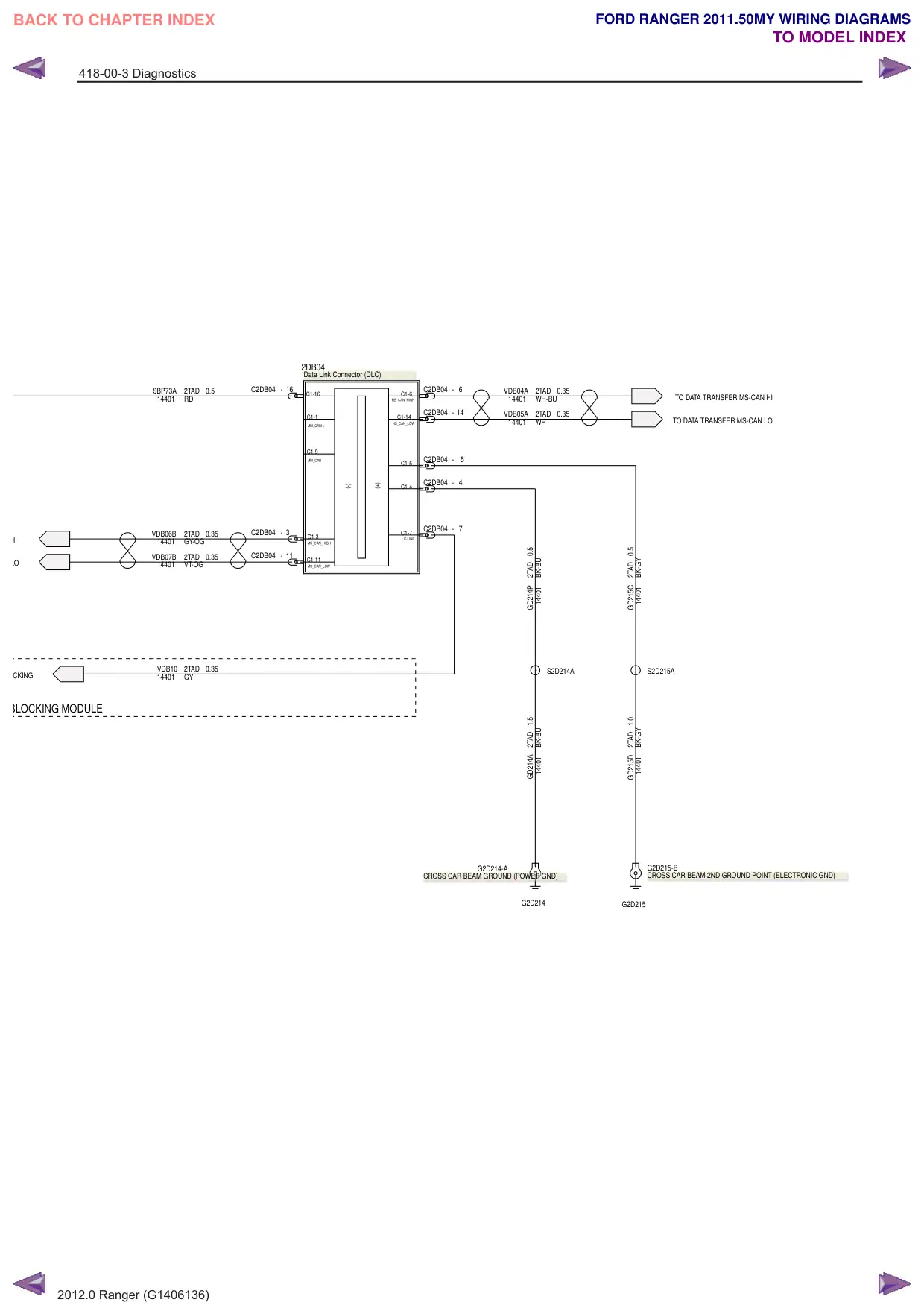

418-00-3 Diagnostics 2DB04 2DB04 Data Link Connector (DLC) SBP73A 2TAD 0.5 C2DB04 - 16 C2DB04 C1-16 C1-6 14401 RD HS_CAN_HIGH C2DB04 C1-1 C1-14 MM_CAM + HS_CAN_LOW C1-9 C2DB04 MM_CAN - C1-5 C2DB04 (-) (+) C1-4 C2DB04 VDB06B 2TAD 0.35 C2DB04 - 3 C1-7 HI 00.0 C1-3 K-LINE 14401 GY-OG MS_CAN_HIGH VDB07B 2TAD 0.35 C2DB04 - 11 LO 00.0 C1-11 14401 VT-OG MS_CAN_LOW VDB10 2TAD 0.35 CKING 00.0 14401 GY BLOCKING MODULE CROSS CAR BEAM GROUND (POWER GND) 2012.0 Ranger (G1406136) - 6 VDB04A 2TAD 0.35 14401 WH-BU 00.0 TO DATA TRANSFER MS-CAN HI - 14 VDB05A 2TAD 0.35 14401 WH 00.0 TO DATA TRANSFER MS-CAN LO - 5 - 4 - 7 0.5 0.5 BK-BU BK-GY 2TAD 2TAD GD214P 14401 GD215C 14401 S2D214A S2D215A 1.5 1.0 BK-BU BK-GY 2TAD 2TAD GD214A 14401 GD215D 14401 G2D214-A G2D215-B CROSS CAR BEAM 2ND GROUND POINT (ELECTRONIC GND) G2D214 G2D215

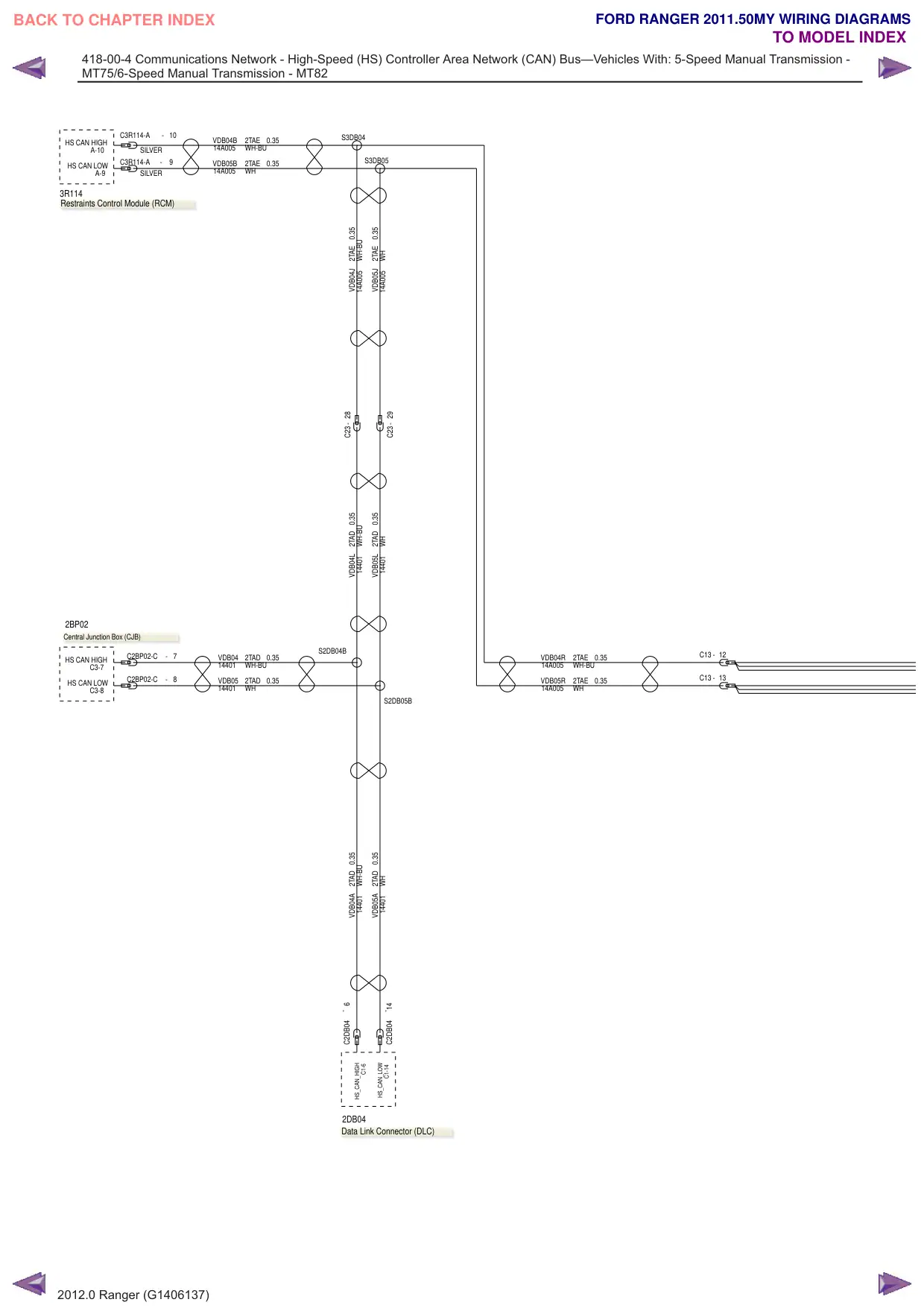

418-00-4 Communications Network - High-Speed (HS) Controller Area Network (CAN) Bus—Vehicles With: 5-Speed Manual Transmission - MT75/6-Speed Manual Transmission - MT82 C3R114-A - 10 S3DB04 HS CAN HIGH VDB04B 2TAE 0.35 14A005 WH-BU A-10 SILVER C3R114-A - 9 VDB05B 2TAE 0.35 S3DB05 HS CAN LOW 14A005 WH A-9 SILVER 3R114 Restraints Control Module (RCM) 0.35 0.35 WH-BU 2TAE 2TAE WH VDB04J 14A005 VDB05J 14A005 28 29 C23 - C23 - 0.35 0.35 WH-BU 2TAD 2TAD WH VDB04L 14401 VDB05L 14401 2BP02 Central Junction Box (CJB) S2DB04B C2BP02-C - 7 HS CAN HIGH VDB04 2TAD 0.35 14401 WH-BU C3-7 C2BP02-C - 8 VDB05 2TAD 0.35 HS CAN LOW 14401 WH C3-8 S2DB05B 0.35 0.35 WH-BU 2TAD 2TAD WH VDB04A 14401 VDB05A 14401 6 14 - - C2DB04 C2DB04 HS_CAN_HIGH C1-6 HS_CAN_LOW C1-14 2DB04 Data Link Connector (DLC) 2012.0 Ranger (G1406137) C13 - 12 VDB04R 2TAE 0.35 14A005 WH-BU VDB05R 2TAE 0.35 C13 - 13 14A005 WH

418-00-5 Communications Network - High-Speed (HS) Controller Area Network (CAN) Bus—Vehicles With: 5-Speed Manual Transmission - MT75/6-Speed Manual Transmission - MT82 1CA01 Anti-Lock Brake System (ABS) Module HS_CAN_LOW HS_CAN_HIGH 14 26 14 26 - - C1CA01 C1CA01 0.5 0.5 WH-BU 3TBD 3TBD WH VDB05F 14290 VDB04F 14290 S1DB04 VDB04K 3TBD 0.5 VDB04G 3TBD 14290 WH-BU 14290 WH-BU VDB05K 3TBD 0.5 VDB05G 3TBD 0.5 14290 WH 14290 WH S1DB05 MANUAL TRANSMISSION WITH ABS/ESP VDB04E 3TBD 14290 WH-BU MANUAL TRANSMISSION VDB05E 3TBD 0.5 14290 WH WITHOUT ABS/ESP VDB04M 3TBD 0.5 14290 WH-BU VDB05M 3TBD 0.5 14290 WH VDB04N 3TBD 0.5 14290 WH-BU VDB05N 3TBD 0.5 14290 WH 2012.0 Ranger (G1406137) CAN 1E104 C1E104-B - H2 0.5 HS_CAN+ Powertrain Control Module (PCM) B2-H2 C1E104-B - G2 HS_CAN- B2-G2 PETROL C1E108-A - 10 1E108 0.5 CAN HIGH Powertrain Control Module (PCM) A1_10 C1E108-A - 11 CAN LOW A1_11 DIESEL

418-00-6 Communications Network - High-Speed (HS) Controller Area Network (CAN) Bus—Vehicles With: 6-Speed Automati Transaxle - 6R80 C3R114-A - 10 S3DB04 HS CAN HIGH VDB04B 2TAE 0.35 14A005 WH-BU A-10 SILVER C3R114-A - 9 VDB05B 2TAE 0.35 S3DB05 HS CAN LOW 14A005 WH A-9 SILVER 3R114 Restraints Control Module (RCM) 0.35 0.35 WH-BU 2TAE 2TAE WH VDB04J 14A005 VDB05J 14A005 28 29 C23 - C23 - 0.35 0.35 WH-BU 2TAD 2TAD WH VDB04L 14401 VDB05L 14401 2BP02 Central Junction Box (CJB) S2DB04B C2BP02-C - 7 HS CAN HIGH VDB04 2TAD 0.35 14401 WH-BU C3-7 C2BP02-C - 8 VDB05 2TAD 0.35 HS CAN LOW 14401 WH C3-8 S2DB05B 0.35 0.35 WH-BU 2TAD 2TAD WH VDB04A 14401 VDB05A 14401 6 14 - - C2DB04 C2DB04 HS_CAN_HIGH C1-6 HS_CAN_LOW C1-14 2DB04 Data Link Connector (DLC) 2012.0 Ranger (G1406138) 1ET02 Transmissio CAN-L CAN-H 48 48 47 - - C1ET02 C1ET02 0.5 0.5 2TAD 2TAD WH VDB05H 14290 VDB04H VDB04D 3TBD 0.5 14290 WH-BU VDB05D 3TBD 0.5 14290 WH S2DB05H C13 - 12 VDB04R 2TAE 0.35 14A005 WH-BU VDB05R 2TAE 0.35 C13 - 13 14A005 WH

418-00-7 Communications Network - High-Speed (HS) Controller Area Network (CAN) Bus—Vehicles With: 6-Speed Automatic Transaxle - 6R80 1CA01 Anti-Lock Brake System (ABS) Module on Control Module (TCM) HS_CAN_LOW HS_CAN_HIGH CAN H 47 14 26 14 26 - - C1CA01 C1CA01 0.5 0.5 WH-BU WH-BU 3TBD 3TBD WH 14290 VDB05F 14290 VDB04F 14290 WITH ABS/ESP S2DB04H VDB04C 3TBD 0.5 14290 WH-BU VDB05C 3TBD 0.5 14290 WH S1DB04 VDB04G 3TBD 14290 WH-BU VDB05G 3TBD 0.5 14290 WH S1DB05 VDB04E 3TBD 14290 WH-BU VDB05E 3TBD 0.5 14290 WH VDB04P 3TBD 0.5 14290 WH-BU VDB05P 3TBD 0.5 14290 WH AUTO TRANSMISSION WITHOUT ABS/ESP 2012.0 Ranger (G1406138) CAN 1E104 C1E104-B - H2 0.5 HS_CAN+ Powertrain Control Module (PCM) B2-H2 C1E104-B - G2 HS_CAN- B2-G2 PETROL C1E108-A - 10 1E108 0.5 CAN HIGH Powertrain Control Module (PCM) A1_10 C1E108-A - 11 CAN LOW A1_11 DIESEL

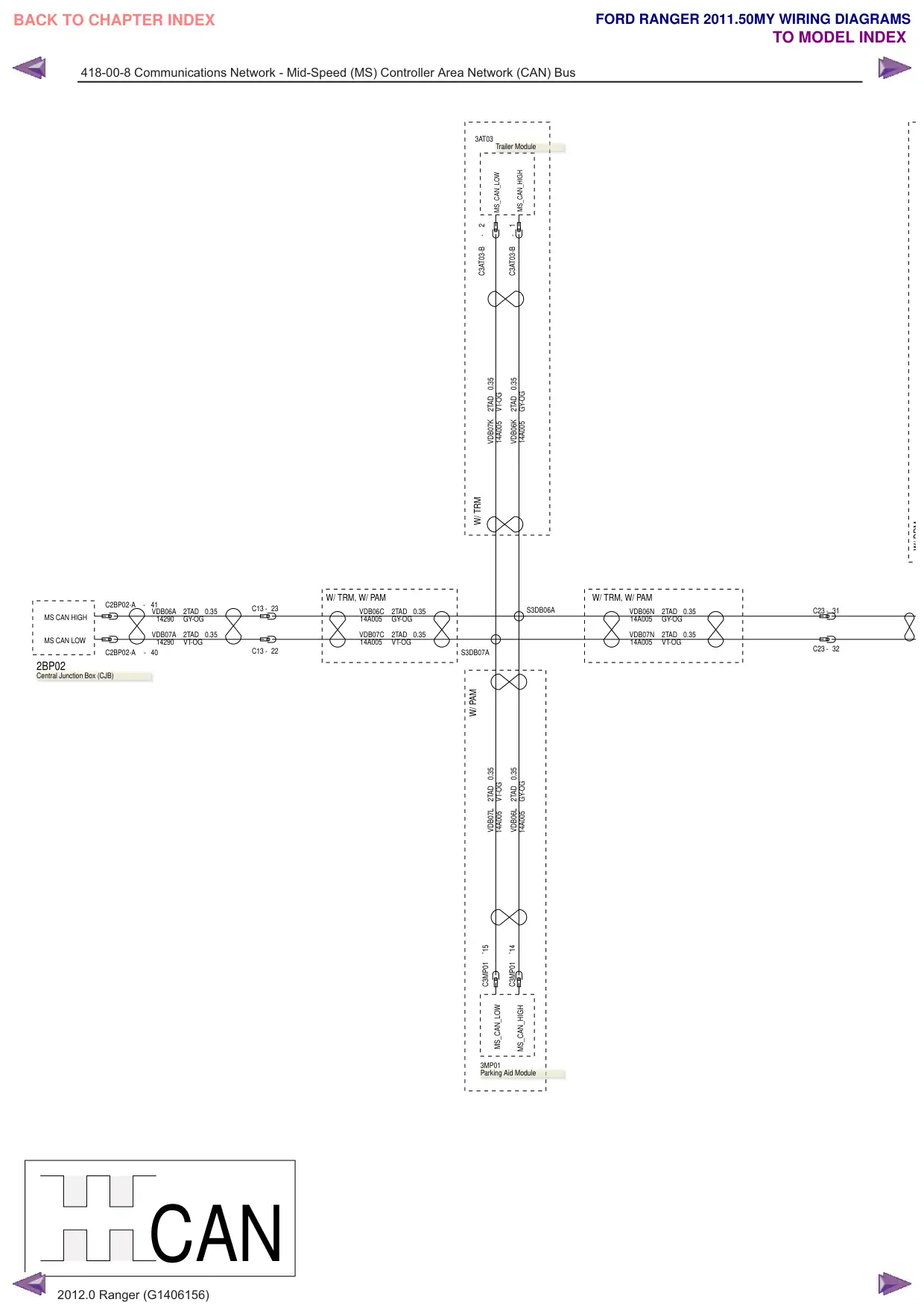

418-00-8 Communications Network - Mid-Speed (MS) Controller Area Network (CAN) Bus W/ TRM, W/ PAM C2BP02-A - 41 C13 - 23 VDB06A 2TAD 0.35 VDB06C 2TAD 0.35 MS CAN HIGH 14290 GY-OG 14A005 GY-OG VDB07A 2TAD 0.35 VDB07C 2TAD 0.35 MS CAN LOW 14290 VT-OG 14A005 VT-OG C2BP02-A - 40 C13 - 22 2BP02 Central Junction Box (CJB) CAN 2012.0 Ranger (G1406156) 3AT03 Trailer Module MS_CAN_HIGH MS_CAN_LOW 2 1 - - C3AT03-B C3AT03-B 0.35 0.35 VT-OG GY-OG 2TAD 2TAD VDB07K 14A005 VDB06K 14A005 W/ TRM W/ DDM W/ TRM, W/ PAM S3DB06A C23 - 31 VDB06N 2TAD 0.35 14A005 GY-OG VDB07N 2TAD 0.35 14A005 VT-OG S3DB07A C23 - 32 W/ PAM 0.35 0.35 VT-OG GY-OG 2TAD 2TAD VDB07L VDB06L 14A005 14A005 15 14 - - C3MP01 C3MP01 MS_CAN_LOW MS_CAN_HIGH 3MP01 Parking Aid Module

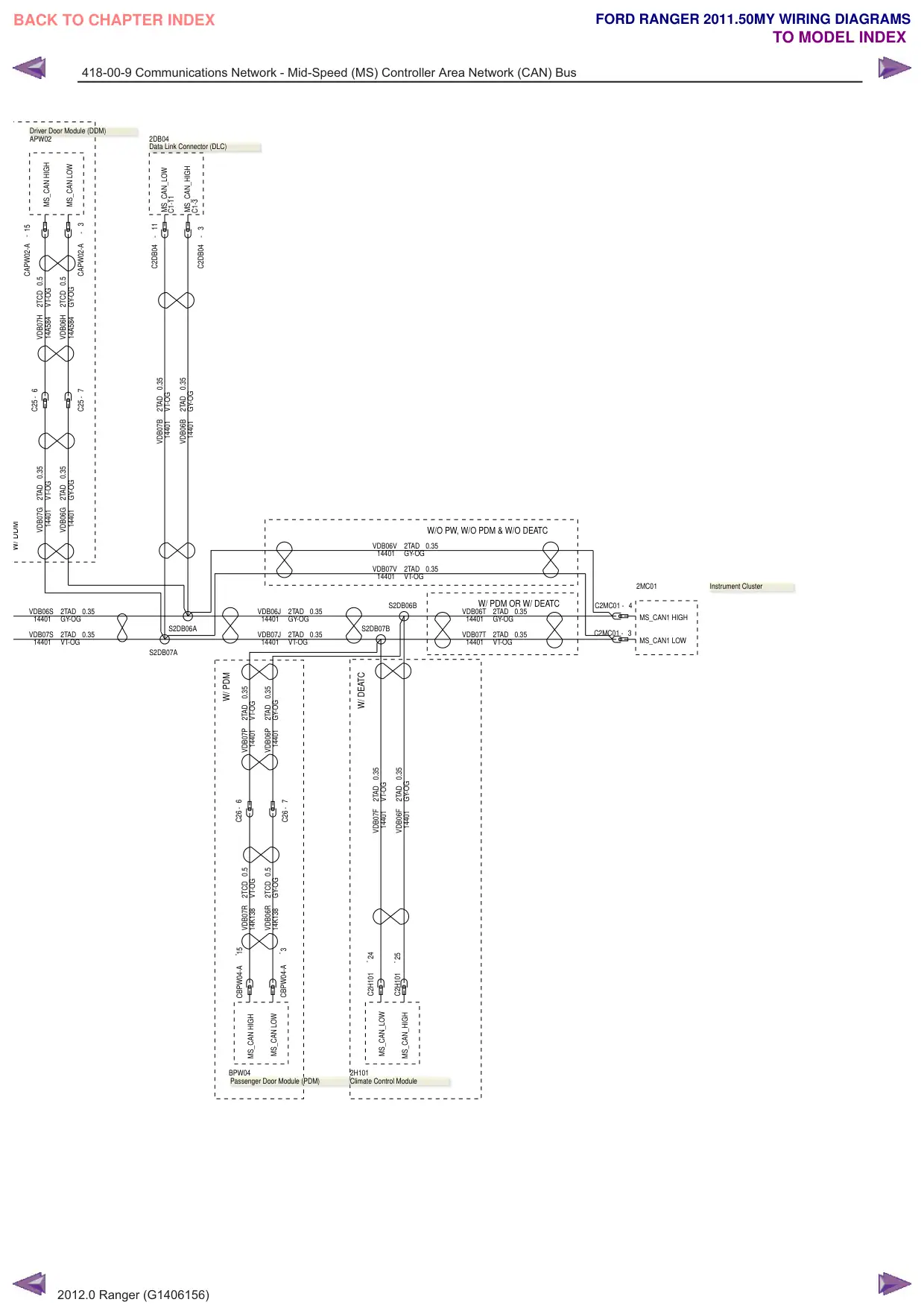

418-00-9 Communications Network - Mid-Speed (MS) Controller Area Network (CAN) Bus Driver Door Module (DDM) APW02 APW02 APW02 APW02 2DB04 Data Link Connector (DLC) MS_CAN HIGH MS_CAN LOW MS_CAN_LOW MS_CAN_HIGH C1-11 C1-3 - 15 - 3 11 3 - - CAPW02-A CAPW02-A C2DB04 C2DB04 2TCD 0.5 0.5 VT-OG 2TCD GY-OG VDB07H 14A584 VDB06H 14A584 0.35 0.35 - 6 7 VT-OG GY-OG - 2TAD 2TAD C25 C25 VDB07B 14401 VDB06B 14401 0.35 0.35 VT-OG GY-OG 2TAD 2TAD VDB07G 14401 VDB06G 14401 W/ DDM W/O PW, W/O PDM & W/O DEATC VDB06V 2TAD 0.35 14401 GY-OG VDB07V 2TAD 0.35 14401 VT-OG S2DB06B VDB06S 2TAD 0.35 VDB06J 2TAD 0.35 14401 GY-OG 14401 GY-OG S2DB06A S2DB07B VDB07S 2TAD 0.35 VDB07J 2TAD 0.35 14401 VT-OG 14401 VT-OG S2DB07A W/ PDM W/ DEATC 0.35 0.35 VT-OG GY-OG 2TAD 2TAD VDB07P VDB06P 14401 14401 0.35 0.35 VT-OG GY-OG 2TAD 2TAD - 6 - 7 C26 C26 VDB07F 14401 VDB06F 14401 0.5 0.5 GY-OG 2TCD VT-OG 2TCD VDB07R VDB06R 14K138 14K138 15 3 - 24 25 - - - CBPW04-A CBPW04-A C2H101 C2H101 MS_CAN LOW MS_CAN_LOW MS_CAN_HIGH MS_CAN HIGH BPW04 2H101 Passenger Door Module (PDM) Climate Control Module C 2012.0 Ranger (G1406156) 2MC01 Instrument Cluster W/ PDM OR W/ DEATC C2MC01 - 4 VDB06T 2TAD 0.35 14401 GY-OG MS_CAN1 HIGH C2MC01 - 3 VDB07T 2TAD 0.35 14401 VT-OG MS_CAN1 LOW

418-00-10 Communications Network - Multimedia (MM) Controller Area Network (CAN) Bus TERMINATION 2MC01 Instrument Cluster C2MC01 - 2 VDB13F 2TAD 0.35 MM_CAN2 + 14401 BU-GY C2MC01 - 1 VDB14F 2TAD 0.35 MM_CAN2 - 14401 VT-GY C2MC01 - 13 VDB13E 2TAD 0.35 MM_CAN TERM + 14401 BU-GY C2MC01 - 14 VDB14E 2TAD 0.35 MM_CAN TERM - 14401 VT-GY WITHOUT AUDIO 2012.0 Ranger (G1406157) 2MC02 2DB04 Message Center Module Data Link Connector (DLC) MM_CAN (+) MM_CAN (-) MM_CAM + MM_CAN - C1-1 C1-9 - 4 - 5 1 9 - - C2MC02 C2MC02 C2DB04 C2DB04 0.35 0.35 0.35 0.35 BU-GY VT-GY BU-GY VT-GY 2TAD 2TAD 2TAD 2TAD VDB13J 14401 VDB14J 14401 VDB13D 14401 VDB14D 14401 S2DB13A VDB13K 2TAD 0.35 VDB13A 2TAD 0 14401 BU-GY 14401 BU-GY S2DB13C S2DB14A S2DB14C VDB14K 2TAD 0.35 VDB14A 2TAD 0 14401 VT-GY 14401 VT-GY

418-00-11 Communications Network - Multimedia (MM) Controller Area Network (CAN) Bus 2MM01 Communications Module MM_CAN_+ MM_CAN_- 14 15 14 15 - - C2MM01-A C2MM01-A 0.35 0.35 BU-GY VT-GY 2TAD 2TAD VDB13C 14401 VDB14C 14401 WITH BVC MODULE 0.35 VDB13B 2TAD 0.35 14401 BU-GY S2DB13B 0.35 VDB14B 2TAD 0.35 14401 VT-GY S2DB14B WITHOUT BVC MODULE VDB13H 2TAD 0.35 14401 BU-GY VDB14H 2TAD 0.35 14401 VT-GY 2012.0 Ranger (G1406157) CAN TERMINATION 2ME04 Information and Entertainment Unit C2ME04 - 14 MM CAN H 14 C2ME04 - 15 MM CAN L 15 2ME04 Information and Entertainment Unit C2ME04 - 14 MM CAN H 14 C2ME04 - 15 MM CAN L 15

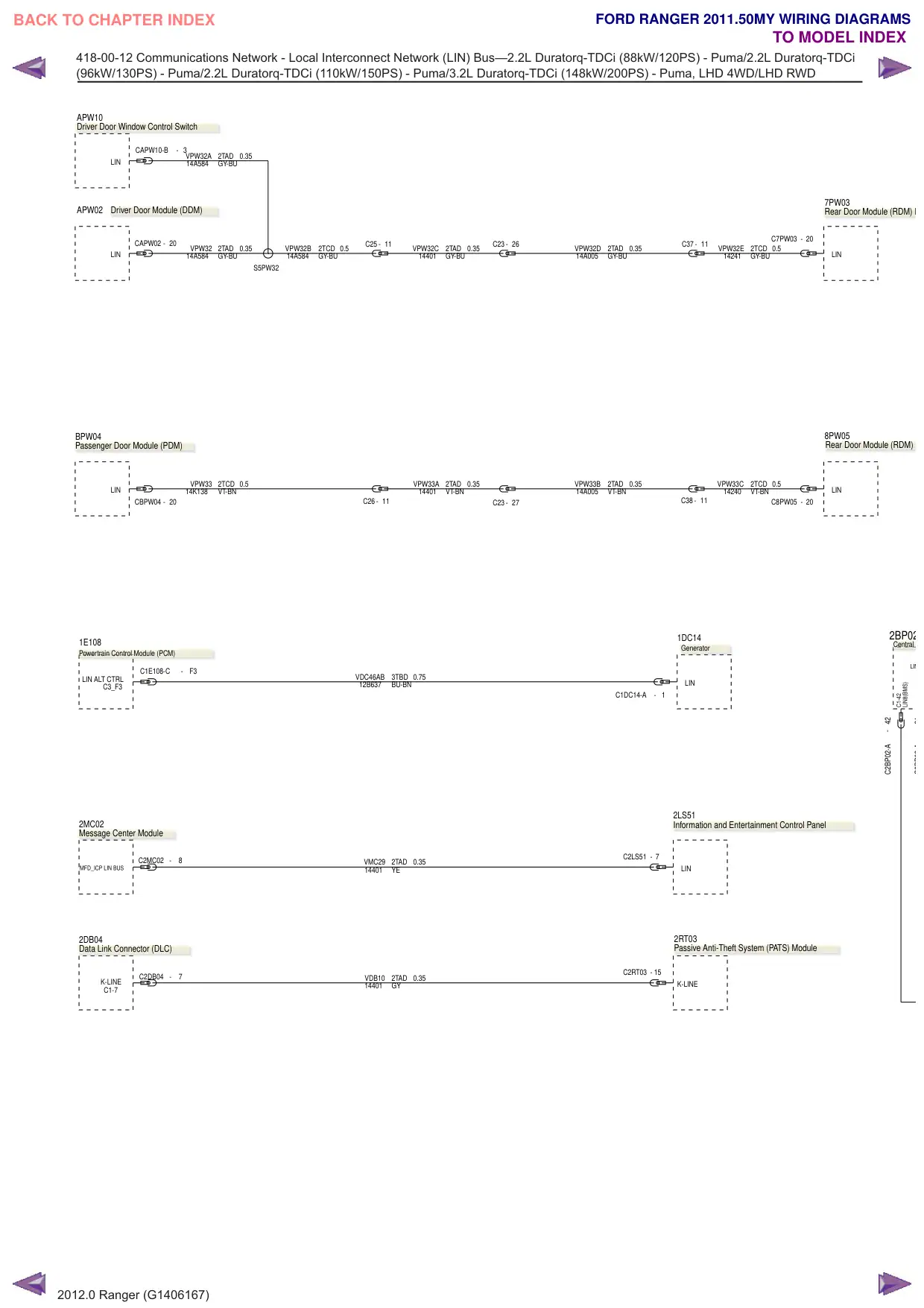

418-00-12 Communications Network - Local Interconnect Network (LIN) Bus—2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma/3.2L Duratorq-TDCi (148kW/200PS) - Puma, LHD 4WD/LHD RWD APW10 Driver Door Window Control Switch CAPW10-B - 3 VPW32A 2TAD 0.35 LIN 14A584 GY-BU APW02 Driver Door Module (DDM) CAPW02 - 20 C25 - 11 VPW32 2TAD 0.35 VPW32B 2TCD 0.5 VPW32C LIN 14A584 GY-BU 14A584 GY-BU 14401 S5PW32 BPW04 Passenger Door Module (PDM) VPW33 2TCD 0.5 VPW33A LIN 14K138 VT-BN 14401 CBPW04 - 20 C26 - 11 1E108 Powertrain Control Module (PCM) C1E108-C - F3 LIN ALT CTRL VDC46AB 3TBD 0.75 12B637 BU-BN C3_F3 2MC02 Message Center Module C2MC02 - 8 VMC29 2TAD 0.35 MFD_ICP LIN BUS 14401 YE 2DB04 Data Link Connector (DLC) C2DB04 - 7 VDB10 2TAD 0.35 K-LINE 14401 GY C1-7 2012.0 Ranger (G1406167) 7PW03 Rear Door Module (RDM) L C7PW03 - 20 C23 - 26 C37 - 11 2TAD 0.35 VPW32D 2TAD 0.35 VPW32E 2TCD 0.5 GY-BU 14A005 GY-BU 14241 GY-BU LIN 8PW05 Rear Door Module (RDM) 2TAD 0.35 VPW33B 2TAD 0.35 VPW33C 2TCD 0.5 VT-BN 14A005 VT-BN 14240 VT-BN LIN C23 - 27 C38 - 11 C8PW05 - 20 2BP02 1DC14 Central Generator LIN LIN LIN8(BMS) C1DC14-A - 1 C1-42 - 42 21 C2BP02-A C2BP02 A 2LS51 Information and Entertainment Control Panel C2LS51 - 7 LIN 2RT03 Passive Anti-Theft System (PATS) Module C2RT03 - 15 K-LINE

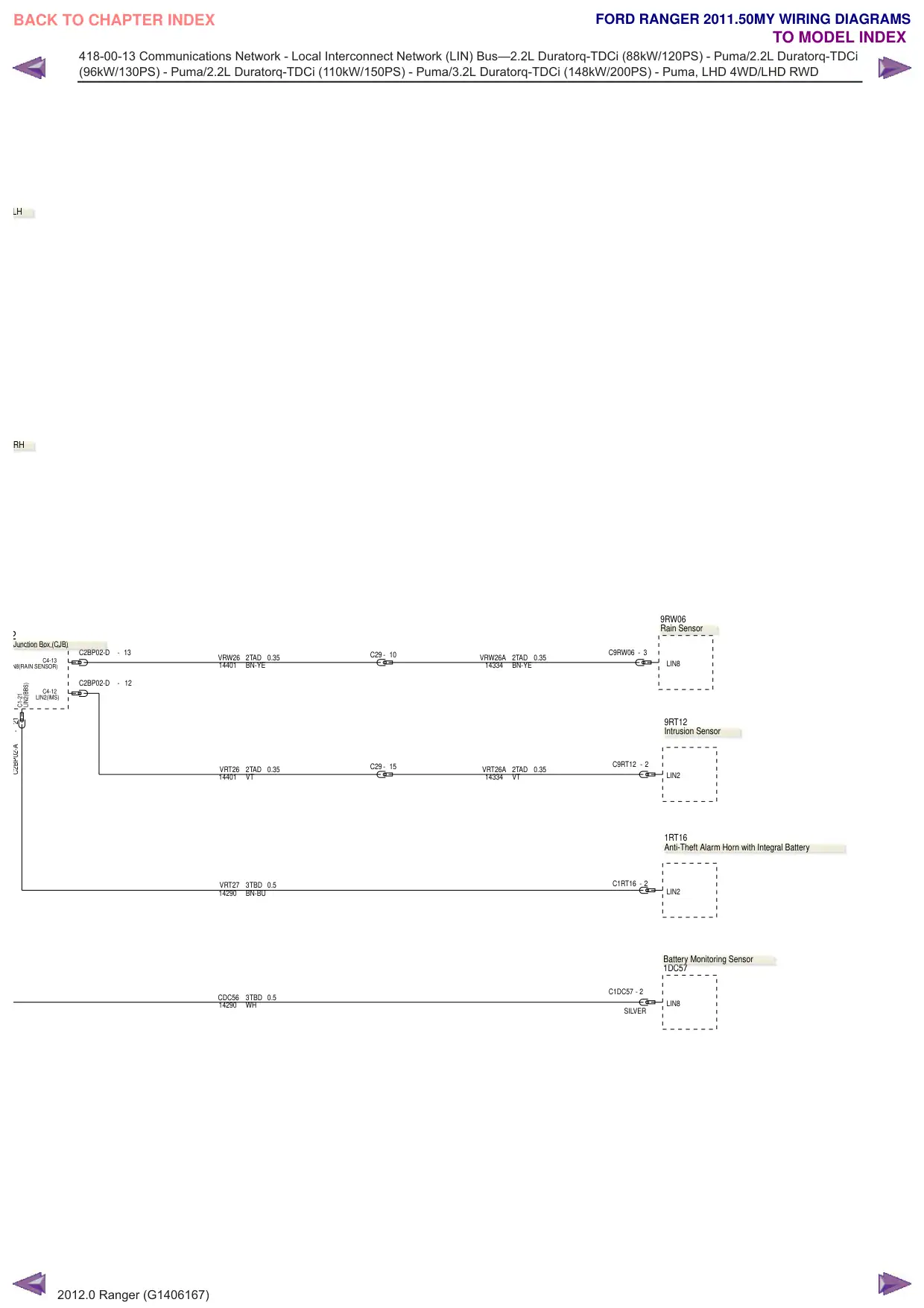

418-00-13 Communications Network - Local Interconnect Network (LIN) Bus—2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma/3.2L Duratorq-TDCi (148kW/200PS) - Puma, LHD 4WD/LHD RWD LH RH 2 Junction Box (CJB) C2BP02 D C2BP02 D C2BP02 D C2BP02-D - 13 C29 - 10 C4-13 VRW26 2TAD 0.35 14401 BN-YE N8(RAIN SENSOR) C2BP02-D - 12 LIN2(BBS) C4-12 C1-21 LIN2(IMS) - 21 C2BP02-A C29 - 15 VRT26 2TAD 0.35 14401 VT VRT27 3TBD 0.5 14290 BN-BU CDC56 3TBD 0.5 14290 WH 2012.0 Ranger (G1406167) 9RW06 Rain Sensor C9RW06 - 3 VRW26A 2TAD 0.35 14334 BN-YE LIN8 9RT12 Intrusion Sensor C9RT12 - 2 VRT26A 2TAD 0.35 14334 VT LIN2 1RT16 Anti-Theft Alarm Horn with Integral Battery C1RT16 - 2 LIN2 Battery Monitoring Sensor 1DC57 1DC57 1DC57 1DC57 C1DC57 - 2 LIN8 SILVER

418-00-14 Communications Network - Local Interconnect Network (LIN) Bus—2.5L Duratec-HE (122kW/165PS) - MI4, LHD 4WD/LHD RWD APW10 Driver Door Window Control Switch CAPW10-B - 3 VPW32A 2TAD 0.35 LIN 14A584 GY-BU APW02 Driver Door Module (DDM) CAPW02 - 20 C25 - 11 VPW32 2TAD 0.35 VPW32B 2TCD 0.5 VPW32C LIN 14A584 GY-BU 14A584 GY-BU 14401 S5PW32 BPW04 Passenger Door Module (PDM) VPW33 2TCD 0.5 VPW33A LIN 14K138 VT-BN 14401 CBPW04 - 20 C26 - 11 1E104 Powertrain Control Module (PCM) C1E104-C - C4 LIN ALT VDC46CA 12B637 C3-C4 2MC02 Message Center Module C2MC02 - 8 VMC29 MFD_ICP LIN BUS 14401 2DB04 Data Link Connector (DLC) C2DB04 - 7 VDB10 K-LINE 14401 C1-7 2012.0 Ranger (G1406168) 7PW03 Rear Door Module (RDM) L C7PW03 - 20 C23 - 26 C37 - 11 2TAD 0.35 VPW32D 2TAD 0.35 VPW32E 2TCD 0.5 GY-BU 14A005 GY-BU 14241 GY-BU LIN 8PW05 Rear Door Module (RDM) 2TAD 0.35 VPW33B 2TAD 0.35 VPW33C 2TCD 0.5 VT-BN 14A005 VT-BN 14240 VT-BN LIN C23 - 27 C38 - 11 C8PW05 - 20 1DC14 Generator 3TBD 0.75 BU-BN LIN C1DC14-A - 1 2LS51 Information and Entertainment Control Panel C2LS51 - 7 2TAD 0.35 YE LIN 2RT03 Passive Anti-Theft System (PATS) Module C2RT03 - 15 2TAD 0.35 K-LINE GY

418-00-15 Communications Network - Local Interconnect Network (LIN) Bus—2.5L Duratec-HE (122kW/165PS) - MI4, LHD 4WD/LHD RWD LH RH 2BP02 Central Junction Box (CJB) C2BP02-D - 13 C29 VRW26 2TAD 0.35 C4-13 LIN8(RAIN SENSOR) 14401 BN-YE C2BP02-D - 12 LIN8(BMS) LIN2(BBS) C4-12 C1-42 C1-21 LIN2(IMS) - 42 - 21 C2BP02-A C2BP02-A C29 VRT26 2TAD 0.35 14401 VT VRT27 3TBD 0.5 14290 BN-BU CDC56 3TBD 0.5 14290 WH 2012.0 Ranger (G1406168) 9RW06 Rain Sensor - 10 C9RW06 - 3 VRW26A 2TAD 0.35 LIN8 14334 BN-YE 9RT12 Intrusion Sensor - 15 C9RT12 - 2 VRT26A 2TAD 0.35 LIN2 14334 VT 1RT16 Anti-Theft Alarm Horn with Integral Battery C1RT16 - 2 LIN2 Battery Monitoring Sensor 1DC57 1DC57 1DC57 1DC57 C1DC57 - 2 LIN8 SILVER

418-00-16 Communications Network - Local Interconnect Network (LIN) Bus—2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma/3.2L Duratorq-TDCi (148kW/200PS) - Puma, RHD 4WD/RHD RWD APW10 Driver Door Window Control Switch CAPW10-B - 3 VPW32A 2TAD 0.35 LIN 14A584 GY-BU APW02 Driver Door Module (DDM) CAPW02 - 20 C25 - 11 VPW32 2TAD 0.35 VPW32B 2TCD 0.5 VPW32C LIN 14A584 GY-BU 14A584 GY-BU 14401 S5PW32 BPW04 Passenger Door Module (PDM) VPW33 2TCD 0.5 VPW33A LIN 14K138 VT-BN 14401 CBPW04 - 20 C26 - 11 1E108 1E108 Powertrain Control Module (PCM) C1E108-C - F3 LIN ALT CTRL VDC46AB 3TBD 0.75 C3_F3 12B637 BU-BN 2MC02 Message Center Module C2MC02 - 8 VMC29 2TAD 0.35 MFD_ICP LIN BUS 14401 YE 2DB04 Data Link Connector (DLC) C2DB04 - 7 K-LINE VDB10 2TAD 0.35 14401 GY C1-7 2012.0 Ranger (G1406169) 7PW03 Rear Door Module (RDM) L C7PW03 - 20 C23 - 26 C37 - 11 2TAD 0.35 VPW32E 2TCD 0.5 GY-BU 14241 GY-BU LIN VPW32F 2TAD 0.35 14A005 GY-BU VPW33D 2TAD 0.35 14A005 VT-BN 8PW05 Rear Door Module (RDM) 2TAD 0.35 VPW33C 2TCD 0.5 VT-BN 14240 VT-BN LIN C23 - 27 C38 - 11 C8PW05 - 20 1DC14 Generator LIN C1DC14-A - 1 - 42 C2BP02-A 2LS51 Information and Entertainment Control Panel C2LS51 - 7 LIN 2RT03 Passive Anti-Theft System (PATS) Module C2RT03 - 15 K-LINE

418-00-17 Communications Network - Local Interconnect Network (LIN) Bus—2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma/3.2L Duratorq-TDCi (148kW/200PS) - Puma, RHD 4WD/RHD RWD LH RH 2BP02 Central Junction Box (CJB) C2BP02-D - 13 VRW26 2TAD 0.35 C29 - 10 C4-13 LIN8(RAIN SENSOR) 14401 BN-YE LIN8(BMS) LIN2(BBS) C2BP02-D - 12 C1-42 C1-21 C4-12 LIN2(IMS) 42 - 21 C2BP02 A C2BP02-A VRT26 2TAD 0.35 C29 - 15 14401 VT VRT27 3TBD 0.5 14290 BN-BU CDC56 3TBD 0.5 14290 WH 2012.0 Ranger (G1406169) 9RW06 Rain Sensor C9RW06 - 3 VRW26A 2TAD 0.35 14334 BN-YE LIN8 9RT12 Intrusion Sensor C9RT12 - 2 VRT26A 2TAD 0.35 14334 VT LIN2 1RT16 Anti-Theft Alarm Horn with Integral Battery C1RT16 - 2 LIN2 Battery Monitoring Sensor 1DC57 1DC57 1DC57 1DC57 C1DC57 - 2 LIN8 SILVER

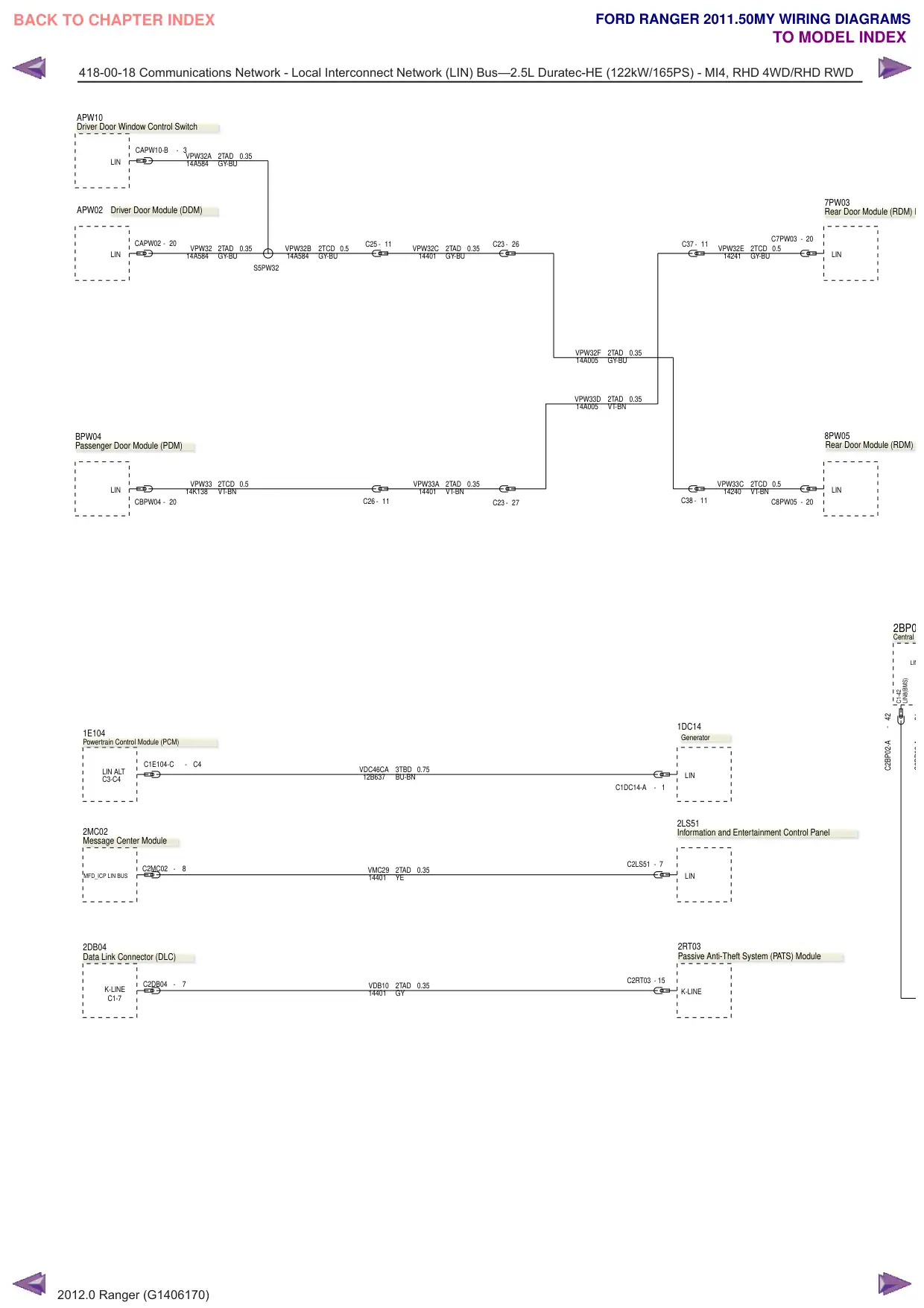

418-00-18 Communications Network - Local Interconnect Network (LIN) Bus—2.5L Duratec-HE (122kW/165PS) - MI4, RHD 4WD/RHD RWD APW10 Driver Door Window Control Switch CAPW10-B - 3 VPW32A 2TAD 0.35 LIN 14A584 GY-BU APW02 Driver Door Module (DDM) CAPW02 - 20 C25 - 11 VPW32 2TAD 0.35 VPW32B 2TCD 0.5 VPW32C LIN 14A584 GY-BU 14A584 GY-BU 14401 S5PW32 BPW04 Passenger Door Module (PDM) VPW33 2TCD 0.5 VPW33A LIN 14K138 VT-BN 14401 CBPW04 - 20 C26 - 11 1E104 Powertrain Control Module (PCM) C1E104-C - C4 LIN ALT VDC46CA 3TBD 0.75 12B637 BU-BN C3-C4 2MC02 Message Center Module C2MC02 - 8 VMC29 2TAD 0.35 MFD_ICP LIN BUS 14401 YE 2DB04 Data Link Connector (DLC) C2DB04 - 7 VDB10 2TAD 0.35 K-LINE 14401 GY C1-7 2012.0 Ranger (G1406170) 7PW03 Rear Door Module (RDM) L C7PW03 - 20 C23 - 26 C37 - 11 2TAD 0.35 VPW32E 2TCD 0.5 GY-BU 14241 GY-BU LIN VPW32F 2TAD 0.35 14A005 GY-BU VPW33D 2TAD 0.35 14A005 VT-BN 8PW05 Rear Door Module (RDM) 2TAD 0.35 VPW33C 2TCD 0.5 VT-BN 14240 VT-BN LIN C23 - 27 C38 - 11 C8PW05 - 20 2BP0 Central LIN LIN8(BMS) C1-42 - 42 21 1DC14 Generator C2BP02-A C2BP02 A LIN C1DC14-A - 1 2LS51 Information and Entertainment Control Panel C2LS51 - 7 LIN 2RT03 Passive Anti-Theft System (PATS) Module C2RT03 - 15 K-LINE

418-00-19 Communications Network - Local Interconnect Network (LIN) Bus—2.5L Duratec-HE (122kW/165PS) - MI4, RHD 4WD/RHD RWD LH RH 02 Junction Box (CJB) C2BP02-D - 13 C29 - 10 C4-13 VRW26 2TAD 0.35 14401 BN-YE N8(RAIN SENSOR) C2BP02-D - 12 LIN2(BBS) C4-12 C1-21 LIN2(IMS) - 21 C2BP02-A C29 - 15 VRT26 2TAD 0.35 14401 VT VRT27 3TBD 0.5 14290 BN-BU CDC56 3TBD 0.5 14290 WH 2012.0 Ranger (G1406170) 9RW06 Rain Sensor C9RW06 - 3 VRW26A 2TAD 0.35 14334 BN-YE LIN8 9RT12 Intrusion Sensor C9RT12 - 2 VRT26A 2TAD 0.35 14334 VT LIN2 1RT16 Anti-Theft Alarm Horn with Integral Battery C1RT16 - 2 LIN2 Battery Monitoring Sensor 1DC57 1DC57 1DC57 1DC57 C1DC57 - 2 LIN8 SILVER

418-00-20 Central Junction Box (CJB)—A (G1404549) PIN 32 => CDC30A BU-GY 0.5 3TBD CDC56 WH 3TBD 0.5 42 VDB06A GY-OG 2TAD 0.35 41 VDB07A VT-OG 2TAD 0.35 40 39 38 37 36 35 CPS01 GN-BU 2TAD 0.5 34 33 CDC30B BU-GY 3TBD 0.5 32 CRH04 VT-GN 2TAD 0.5 31 CRD01 VT-OG 3TBD 0.5 30 CRW01 WH 3TBD 0.5 29 CH123 VT-GN 2TAD 0.5 28 CRW03A VT-WH 3TBD 0.5 27 CLS07A BN-YE 3TBD 0.5 + CLS07 BN-YE 3TBD 0.5 26 25 CLS55F GN-BU 3TBD 0.75 24 23 CLS54L BU-OG 3TBD 0.75 22 AV6N-14488-GA C2BP02-A TO CEM1 HARNESS 14290 Central Junction Box (CJB)—B (G1404550) PIN 15 => CLS17A YE-GY 0.5 2TAD PIN 15 => CLS17F YE-GY 0.5 2TAD 31 32 33 34 35 36 37 38 CHP01A BU-GN 2TAD 0.35 39 40 41 42 CET53 BU-OG 2TAD 0.35 43 CPL36A GN 2TAD 0.35 + CPL36C GN 2TAD 0.35 44 45 46 47 48 49 50 51 VMC11B YE-VT 2TAD 0.5 52 VMC11 YE-VT 2TAD 0.5 + VMC11D YE-VT 2TAD 0.35 53 54 55 56 57 58 59 60 AV6N-14488-EA C2BP02-B TO CEM2 HARNESS 14A005 2012.0 Ranger 21 VRT27 BN-BU 3TBD 0.5 20 CH227 VT-GN 3TBD 0.5 19 18 RRW24 GN-VT 3TBD 0.5 17 CMC19 GY-VT 2TAD 0.5 + CMC19A GY-VT 2TAD 0.5 16 CCB08D VT-WH 3TBD 0.35 15 CPL25 BU-OG 3TBD 0.5 14 13 CMC20 VT 3TBD 0.5 12 11 10 9 CLF61 GY-BU 3TBD 0.5 8 7 CLF62 VT-WH 3TBD 0.5 6 5 4 CRT05 WH-BN 3TBD 0.5 3 2 1 CLS06A GN-OG 3TBD 0.5 + CLS06 GN-OG 3TBD 0.5 1 CLS08 VT-GN 2TAD 0.5 + CLS08B VT-GN 2TAD 0.5 2 3 CLS54B BU-OG 2TAD 0.5 + CLS54C BU-OG 2TAD 0.5 60 40 20 4 CR115 BN 2TAD 0.35 5 59 39 19 6 CLS55B GN-BU 2TAD 0.5 + CLS55C GN-BU 2TAD 0.5 58 38 18 7 57 37 17 8 56 36 16 9 CLS44B VT-BN 2TAD 0.75 + CLS44E VT-BN 2TAD 0.75 10 CLS45B BN-GN 2TAD 0.5 55 35 15 11 54 34 14 12 CLS44D VT-BN 2TAD 0.75 + CLS44G VT-BN 2TAD 0.75 53 33 13 13 CLS09 WH-OG 2TAD 0.5 + CLS09B WH-OG 2TAD 0.5 52 32 12 14 15 CLS17E YE-GY 2TAD 0.5 + CLS17G YE-GY 2TAD 0.5 51 31 11 16 50 30 10 17 49 29 9 18 CLN17 BN 2TAD 0.35 48 28 8 19 20 CLS44 VT-BN 2TAD 0.35 47 27 7 21 CLS04 YE-VT 2TAD 0.5 46 26 6 22 45 25 5 23 44 24 4 24 25 CPL39A YE 2TAD 0.35 + CPL39C YE 2TAD 0.35 43 23 3 26 CMC25 WH-VT 2TAD 0.5 42 22 2 27 41 21 1 28 RMC32B GN-BU 2TAD 0.5 29 RMC32 GN-BU 2TAD 0.5 + RMC32D GN-BU 2TAD 0.35 30

418-00-21 Central Junction Box (CJB)—C (G1404551) PIN 13 => CPL77B BU-GN 0.35 2TAD PIN 22 => CPK14B BN 0.35 2TAD PIN 34 => VRT23A VT-GY 0.35 2TAD PIN 54 => VRT24A YE-OG 0.35 2TAD BU-GN 0.35 31 CRD03A 2TAD 32 GN-BN 0.35 33 CHP03 2TAD VT-GY 0.35 34 VRT23B 2TAD YE-OG 0.35 35 VH417 2TAD GN-VT 0.35 GN-VT 0.35 36 CRW17A 2TAD + CRW17 2TAD BN-VT 0.35 BN-VT 0.35 RRW30A 2TAD + RRW30 2TAD 37 38 39 WH 0.35 VES10 2TAD 40 41 CR116 GN-WH 2TAD 0.35 42 43 CDC33A VT-GN 2TAD 0.35 44 CDC32C BN-YE 2TAD 0.35 + CDC32A BN-YE 2TAD 0.35 45 CRD09A BU-GY 2TAD 0.35 46 CDC30C BU-GY 2TAD 0.35 47 CLF27 GN-BN 2TAD 0.35 + CLF27A GN-BN 2TAD 0.35 48 CRD08A GN-OG 2TAD 0.35 49 VRW11A GN-BN 2TAD 0.35 + VRW11 GN-BN 2TAD 0.35 50 CRH03 BN 2TAD 0.35 BK-GY 51 GD284A 2TAD 0.75 52 GN-BU GN-BU 53 CLS46 2TAD 0.35 + CLS46A 2TAD 0.35 YE-OG VRT24B 2TAD 0.35 54 GN-BN RES08 2TAD 0.35 55 BU-WH BU-WH CLF18 2TAD 0.35 + CLF18A 2TAD 0.35 56 GY-BN GY-BN CRW07A 2TAD 0.35 + CRW07 2TAD 0.35 57 GY-VT GY-VT CLF21A 2TAD 0.35 + CLF21 2TAD 0.35 58 BN-YE CLF57 2TAD 0.35 59 GY GY 60 CLS34 2TAD 0.35 + CLS34A 2TAD 0.35 AV6N-14488-CA C2BP02-C TO CEM3 HARNESS 14401 Central Junction Box (CJB)—D (G1404552) 20 20 10 10 19 19 9 9 18 SBP81 RD 2TAD 0.35 18 8 8 CRW32 BN 2TAD 0.35 17 17 7 7 16 16 6 6 15 15 5 5 14 14 4 4 VRW26 BN-YE 2TAD 0.35 13 13 3 3 VRT26 VT 2TAD 0.35 12 12 2 2 CLN27 WH-BN 2TAD 0.35 11 11 1 1 AV6N-14488-AA C2BP02-D TO CEM4 HARNESS 14401 Central Junction Box (CJB)—E (G1404553) 1 SBB02A 1 2 2 SBB01A AV6N-14489-RA C2BP02-E TO CEM5 HARNESS 14290 1 RLN34C WH-VT 2TAD 0.5 2 CRD04A BN-GN 2TAD 0.35 3 CLS49A BN-GN 2TAD 0.35 + CLS49 BN-GN 2TAD 0.35 60 40 20 4 CPL51A BU-GN 2TAD 0.35 5 59 39 19 CLF17 WH-OG 2TAD 0.35 + CLF17A WH-OG 2TAD 0.35 58 38 18 6 CRW10A BU-GN 2TAD 0.35 + CRW10 BU-GN 2TAD 0.35 7 VDB04 WH-BU 2TAD 0.35 57 37 17 8 VDB05 WH 2TAD 0.35 56 36 16 9 CH424 WH-BU 2TAD 0.35 55 35 15 10 CH425 GN-BU 2TAD 0.35 54 34 14 11 CPL28A VT-BN 2TAD 0.35 12 53 33 13 13 CPL77 BU-GN 2TAD 0.35 + CPL77A BU-GN 2TAD 0.35 52 32 12 14 CLN17A BN 2TAD 0.5 51 31 11 15 RME24 BU-WH 2TAD 0.35 50 30 10 16 17 VH415 GY-YE 2TAD 0.35 49 29 9 18 VH416 VT-GY 2TAD 0.35 48 28 8 19 47 27 7 20 46 26 6 21 CLN31 VT-GN 2TAD 0.35 22 CPK14 BN 2TAD 0.35 + CPK14A BN 2TAD 0.35 45 25 5 23 CPL29A YE-GY 2TAD 0.35 44 24 4 24 CRW08A VT-OG 2TAD 0.35 + CRW08 VT-OG 2TAD 0.35 43 23 3 25 CPL26A GN-VT 2TAD 0.35 + CPL26D GN-VT 2TAD 0.35 42 22 2 26 CPL31A WH 2TAD 0.35 + CPL31D WH 2TAD 0.35 27 CLS32A BN-YE 2TAD 0.35 + CLS32 BN-YE 2TAD 0.35 41 21 1 28 CPL66 BU-BN 2TAD 0.35 29 RH105 GN 2TAD 0.35 30 RRT25A VT-WH 2TAD 0.35 YE-RD 2TAD 6.0 RD 2TAD 6.0

418-00-22 Central Junction Box (CJB)—F (G1404554) CRW14 BU-WH 3TBD 0.5 20 9 CBB35 YE-GY CLF29 BN 2TAD 1.0 19 8 CLF29A BN 2TAD 1.0 18 7 17 6 16 5 15 CDC21 GY-BN 2TAD 0.5 14 4 13 3 12 2 CLF04 BN-BU CLF02 GY-BN 3TBD 1.0 11 1 CLF05 BU-GN CLF03 VT-OG 3TBD 1.0 10 AV6N-14488-NA C2BP02-F TO CEM6 HARNESS 14290 Central Junction Box (CJB)—G (G1404555) PIN 2 => GD343A BK-VT 2.5 2TAD PIN 17 => CBP85N YE 0.35 2TAD PIN 17 => CBP85P YE 0.35 2TAD PIN 18 => CBP60 YE-VT 0.5 2TAD + CBP60AE YE-VT 0.5 2TAD CLS10A GN-BN 2TAD 0.75 + CLS10C GN-BN 2TAD 0.75 20 CLS11A GY-VT 2TAD 0.75 + CLS11C GY-VT 2TAD 0.75 19 CBP60AF YE-VT 2TAD 0.35 + CBP60 YE-VT 2TAD 0.5 18 CBP85M YE 2TAD 0.35 + CBP85E YE 2TAD 0.35 17 16 15 14 13 12 CPL12 VT-OG 2TAD 1.5 11 CPL02 VT-GN 2TAD 1.5 10 AV6N-14488-LA C2BP02-G TO CEM7 HARNESS 14A005 2TAD 1.5 3TBD 1.0 3TBD 1.0 20 9 9 CE515D YE-GY 2TAD 2.5 + CE515B YE-GY 2TAD 2.5 19 8 CPL13 BN-GN 2TAD 2.5 18 8 7 17 7 16 6 SBP67 BU-RD 2TAD 0.35 6 15 5 5 14 4 4 13 3 3 12 2 GD345A BK-BU 2TAD 2.5 2 11 1 CPL11 GY-BN 2TAD 2.5 1 10

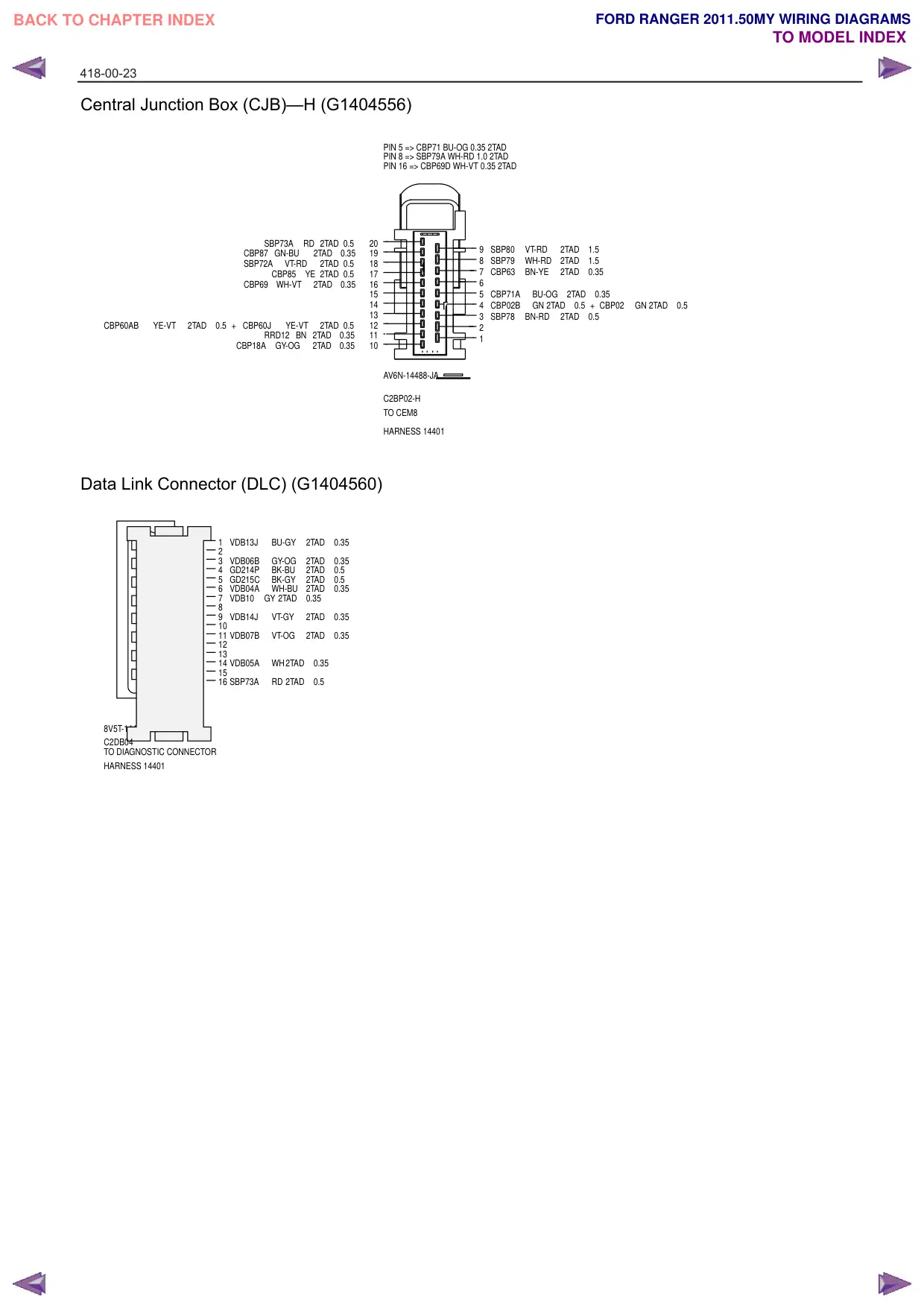

418-00-23 Central Junction Box (CJB)—H (G1404556) PIN 5 => CBP71 BU-OG 0.35 2TAD PIN 8 => SBP79A WH-RD 1.0 2TAD PIN 16 => CBP69D WH-VT 0.35 2TAD SBP73A RD 2TAD 0.5 20 CBP87 GN-BU 2TAD 0.35 19 SBP72A VT-RD 2TAD 0.5 18 CBP85 YE 2TAD 0.5 17 CBP69 WH-VT 2TAD 0.35 16 15 14 13 CBP60AB YE-VT 2TAD 0.5 + CBP60J YE-VT 2TAD 0.5 12 RRD12 BN 2TAD 0.35 11 CBP18A GY-OG 2TAD 0.35 10 AV6N-14488-JA C2BP02-H TO CEM8 HARNESS 14401 Data Link Connector (DLC) (G1404560) 8 16 1 VDB13J BU-GY 2TAD 0.35 2 7 15 3 VDB06B GY-OG 2TAD 0.35 4 GD214P BK-BU 2TAD 0.5 6 14 5 GD215C BK-GY 2TAD 0.5 6 VDB04A WH-BU 2TAD 0.35 5 13 7 VDB10 GY 2TAD 0.35 8 4 12 9 VDB14J VT-GY 2TAD 0.35 10 3 11 11 VDB07B VT-OG 2TAD 0.35 12 2 10 13 14 VDB05A WH2TAD 0.35 1 9 15 16 SBP73A RD 2TAD 0.5 8V5T-14489-APA C2DB04 TO DIAGNOSTIC CONNECTOR HARNESS 14401 9 SBP80 VT-RD 2TAD 1.5 8 SBP79 WH-RD 2TAD 1.5 7 CBP63 BN-YE 2TAD 0.35 6 5 CBP71A BU-OG 2TAD 0.35 4 CBP02B GN 2TAD 0.5 + CBP02 GN 2TAD 0.5 3 SBP78 BN-RD 2TAD 0.5 2 1

418-00-24 Engine Junction Box (EJB) (G1404561) Thumbnail F1-1 F1-2 SBB01 RD 2TAD 8.0 F2-1 SBB02 YE-RD 2TAD 8.0 F2-2 F3-1 1 5 3 SBB03A BU-RD 3TBD 8.0 F3-2 F4-1 5 F4-2 4 SBB04 GN-RD 3TBD 4.0 F5-1 CBB05 YE 3TBD 2.0 F5-2 2 2 4 1 2 CBB06 WH-BU 3TBD 2.5 F6-1 R4 GD121J BK-YE 3TBD 2.5 F6-2 F7-1 F7-2 5 3 F8-1 1 3 F8-2 R17 F9-1 4 SBB09 RD 3TBD 1.5 F9-2 F10-2 F10-1 3 5 2 2 R3 SBB10 YE-RD 3TBD 2.5 F11-1 SBB11 BU-RD 3TBD 4.0 F11-2 4 F12-1 R15 SBB12 GN-RD 3TBD 2.5 F12-2 F13-1 R1 1 5 3 F13-2 R2 SBB13 GY-RD 3TBD 2.5 F14-1 SBB14 BN-RD 3TBD 1.5 F14-2 3 F15-1 2 4 1 2 SBB15A WH-RD 3TBD 0.75 F15-2 F16-2 F16-1 3 SBB16 VT-RD 3TBD 0.5 F17-1 5 SBB17 RD 3TBD 2.5 F17-2 1 4 2 F18-1 SBB18 YE-RD 3TBD 1.5 F18-2 2 R11 1 CBB19 BN-WH 3TBD 0.75 F19-1 F19-2 GD121AE BK-YE 3TBD 0.75 F20-1 SBB20 GN-RD 3TBD 1.5 F20-2 5 F21-1 2 2 2 2 2 SBB21A GY-RD 3TBD 1.0 F21-2 F45 F46 F22-2 F22-1 1 1 1 1 1 CBB22 GN-OG 3TBD 1.0 + CBB22A GN-OG 3TBD 1.0 F23-1 SBB23 WH-RD 3TBD 0.75 F23-2 F14 F17 F51 F24-1 SBB24B VT-RD 3TBD 1.5 + SBB24 VT-RD 3TBD 1.5 F24-2 F25-1 F25-2 F11 F12 F13 F47 CBB25 WH-OG 3TBD 1.0 F26-1 SBB26 YE-RD 3TBD 0.5 F26-2 1 1 1 1 F27-1 1 1 1 SBB27 BU-RD 3TBD 0.5 F27-2 2 2 2 2 F27 F30 F28-2 F28-1 2 2 2 CBB28A GY-VT 3TBD 1.5 F29-1 CBB29B WH-VT 3TBD 1.0 + CBB29A WH-VT 3TBD 1.0 F29-2 F30-1 SBB30 BN-RD 3TBD 1.0 F30-2 F31-1 F31-2 2 2 2 2 2 2 2 SBB31 WH-RD 3TBD 1.5 F32-1 F21 F23 F24 F26 CBB32 GN-VT 3TBD 0.5 F32-2 F33-1 1 1 1 1 1 1 1 CBB33 WH-BN 3TBD 0.5 F33-2 F4 F9 F10 F34-1 F34-2 CBB34 VT-BN 3TBD 0.5 F35-1 F35-2 CBB35 YE-GY 2TAD 1.5 F36-1 F1 F2 F3 CBB36 BU-BN 3TBD 0.5 F36-2 1 1 1 F37-2 F37-1 1 1 1 1 CBB37 WH 3TBD 0.5 F38-1 F15 F16 F18 F20 CBB38 GY-BU 3TBD 1.0 F38-2 2 2 2 F39-1 2 2 2 2 CBB39 VT-WH 3TBD 0.5 F39-2 F40-2 F40-1 CBB40A YE-GN 3TBD 0.75 F41-1 CBB14B CBB41 VT-OG BU 3TBD 0.5 3TBD 1.5 F41-2 F42-1 SBB42 YE-RD 3TBD 0.75 F42-2 CRD05A GY-OG 3TBD 2.5 F43-1 F43-2 CBB43 GY 3TBD 2.5 F44-1 CRD05B GY-OG 3TBD 2.5 F44-2 CBB44 VT 3TBD 2.5 F45-1 PIN F25-2 => CBB25F WH-OG 1.0 3TBD PIN F15-2 => SBB15 WH-RD 0.75 3TBD SBB45 GY-RD 3TBD 2.5 F45-2 PIN F29-2 => CBB29C WH-VT 1.5 3TBD F46-1 PIN F3-2 => SBB03 BU-RD 8.0 3TBD SBB46 BN-RD 3TBD 1.5 F46-2 F47-1 PIN F51-2 => SBB51M BU-RD 2.5 3TBD F47-2 PIN R9-1 => CBB28J GY-VT 0.5 3TBD PIN R26-5 => CBB11A BN 4.0 3TBD + CBB11F BN 4.0 3TBD SBB47 WH-RD 3TBD 4.0 F48-1 PIN R9-2 => CE156B WH-VT 0.5 3TBD F48-2 PIN R9-3 => SBB15 WH-RD 0.75 3TBD F49-1 PIN R9-5 => CBB15AA BN-BU 0.75 3TBD F49-2 F50-1 F50-2 SBB50A YE-RD 3TBD 0.5 F51-1 SBB51 BU-RD 3TBD 2.5 F51-2 PIN F51-2 => SBB51F PK 2.5 2TAD PIN F51-2 => SBB51G PK 2.5 2TAD PIN F51-2 => SBB51J GN-RD 2.5 2TAD PIN F51-2 => SBB51K GN-RD 2.5 2TAD 5B0K90107 Part 3 of 3 Engine Junction Box (EJB)—A (G1404562) 1 1 SDC02A RD 3SBD 25.0 5M5T-14463-GLA C1BB03-A TO ENGINE JUNCTION BOX HARNESS 14290 R1-1 CDC30E R1-2 BU-GY 3TBD 0.5 CBP78A GD121AD R1-3 GY-BU BK-YE 3TBD 3TBD 0.5 0.5 1 5 3 R1-4 CDC41E R1-5 WH-BN 3TBD 0.5 5 SBB18B R2-1 R2-2 YE-RD 3TBD 0.5 4 5 5 5 CRW03A R2-3 VT-WH 3TBD 0.5 CBB19 CRW03 R2-4 BN-WH VT-WH 3TBD 3TBD 0.75 1.5 4 1 2 R23 SBB18A R2-5 YE-RD 3TBD 1.5 R7 R8 R12 SBB21C R3-1 GY-RD 3TBD 0.5 2 1 2 1 2 1 CRH04 R3-3 R3-2 VT-GN 2TAD 0.5 1 5 3 SBB21B R3-4 GY-RD 3TBD 1.0 3 R3-5 R19 4 CBB28G CBB21 R4-1 BU-GY GY-VT 3TBD 3TBD 1.0 + CBB21A 0.5 BU-GY 3TBD 1.0 3 3 3 CEC02B R4-2 GN-BU 3TBD 0.5 + CEC02A GN-BU 3TBD 0.5 SBB16 R4-3 VT-RD 3TBD 0.5 2 R22 R4-5 R4-4 CBB16 R5-1 BU-GN 3TBD 0.75 + CBB16C BU-GN 3TBD 0.75 CCF31 CBB28T R5-2 BN-VT GY-VT 3TBD 3TBD 0.5 + CCF31B 0.5 BN-VT 3TBD 0.5 R16 1 5 3 SBB23 R5-3 WH-RD 3TBD 0.75 3 5 5 5 R5-5 R5-4 4 CBB23 R6-1 BN-YE 3TBD 0.75 SBB18C R6-2 YE-RD 3TBD 0.5 2 2 4 1 2 4 1 2 4 1 CRW03 CRW01 R6-3 VT-WH WH3TBD 3TBD 0.5 1.5 4 1 R21 CRW16 R6-4 GY-BN 3TBD 1.5 CRW15 R6-5 BN-WH 3TBD 1.5 5 3 CBB28F R7-2 R7-1 GY-VT 3TBD 0.5 5 1 3 3 3 CEC02 R7-3 GN-BU 3TBD 0.5 R10 R26 R27 SBB03B CEC08A R7-5 BU-RD GN-WH 3TBD 3TBD 6.0 6.0 SILVER SILVER 4 CBB28E R8-1 GY-VT 3TBD 0.5 CEC01 R8-2 WH-BU 3TBD 0.5 2 SBB03C R8-3 R8-5 BU-RD 3TBD 6.0 SILVER 2 R20 5 3 5 3 CEC07A R9-1 BN 3TBD 6.0 SILVER F19 1 1 3 CBB28S VMC04 R9-2 GY-BN GY-VT 3TBD 3TBD 0.5 0.5 2 SBB15A R9-3 WH-RD 3TBD 0.75 F50 1 4 4 R18 R9-4 1 CBB15 R9-5 R10-1 BN-BU 3TBD 0.75 2 R5 R6 2 R9 5 SBB50B R10-2 YE-RD 3TBD 0.5 CH227 SBB14 R10-3 VT-GN BN-RD 3TBD 3TBD 0.5 1.5 2 R10-4 CBB14D R10-5 VT-OG 3TBD 1.5 5 SBB50D R11-1 R11-2 YE-RD 3TBD 0.5 3 1 4 2 CRD01 R11-3 VT-OG 3TBD 0.5 4 1 1 1 1 1 1 1 1 CRD05 R11-5 GY-OG 3TBD 4.0 SILVER 1 R12-1 F31 F42 F32 F33 F34 F35 F36 F37 F38 F39 R12-2 2 2 2 2 2 2 2 2 2 R12-3 R12-5 R13-1 R14 1 2 1 CE237A R13-2 BN-WH 3TBD 0.5 + CE237 BN-WH 3TBD 0.5 R13-3 F5 R13-5 SBB50 R14-1 R14-2 YE-RD 3TBD 0.5 1 1 1 1 1 CDC21 R14-3 GY-BN 2TAD 0.5 R14-4 F41 F48 F7 F8 2 2 1 R14-5 3 2 2 2 2 CBB28K R15-1 GY-VT 3TBD 0.5 F6 4 4 CCF08A R15-2 R15-3 GY-OG 3TBD 0.5 + CCF08B GY-OG 3TBD 0.5 2 1 2 1 F44 CCF27 R15-4 GY 3TBD 2.5 CBB06B R15-5 WH-BU 3TBD 2.5 1 2 CBB28M CBB12B R16-1 GY-VT GN-WH 3TBD 3TBD 0.5 2.5 2 2 2 2 2 2 CCF07A R16-2 BN-GN 3TBD 0.5 + CCF07 BN-GN 3TBD 0.5 R13 F22 F25 F28 F29 F40 F49 5 5 2 1 CCF28 R16-3 R16-4 VT-GY 3TBD 2.5 R24 R25 CBB06A R16-5 WH-BU 3TBD 2.5 5 1 1 1 1 1 1 F43 CBB28R CBB12C R17-1 GY-VT GN-WH 3TBD 3TBD 0.5 2.5 3 3 GD121H R17-2 BK-YE 3TBD 0.5 SBB12 R17-3 GN-RD 3TBD 2.5 R17-4 R17-5 CBB12A R18-1 GN-WH 3TBD 2.5 SBB42A CRT05 R18-2 WH-BN YE-RD 3TBD 3TBD 0.5 0.5 SBB42B R18-3 YE-RD 3TBD 0.75 R18-4 CRT02 R18-5 R19-1 GY-VT 3TBD 0.75 CDC12A R19-2 YE 3TBD 0.5 + CDC12 YE 3TBD 0.5 C1BB03 CDC35C R19-3 BU-WH 3TBD 0.5 SBB13 R19-4 GY-RD 3TBD 2.5 TO ENGINE JUNCTION BOX CBB13 R19-5 GY-BN 3TBD 2.5 + CBB13A GY-BN 3TBD 2.5 HARNESS 14290 R20-1 R20-2 R20-3 R20-4 R20-5 R21-1 R21-2 R21-3 R21-4 R21-5 R22-1 R22-2 R22-3 R22-4 R22-5 R23-1 R23-2 R23-3 R23-4 R23-5 R24-1 R24-2 R24-3 R24-4 R24-5 R25-1 R25-2 R25-3 R25-4 R25-5 SBB50C YE-RD 3TBD 0.5 R26-1 CH123 VT-GN 2TAD 0.5 R26-2 R26-3 SBB11 BU-RD 3TBD 4.0 R26-4 CBB11D BN 3TBD 4.0 + CBB11E BN 3TBD 4.0 R26-5 SBB50E YE-RD 3TBD 0.5 R27-1 CPS01 GN-BU 2TAD 0.5 R27-2 SBB09 RD 3TBD 1.5 R27-3 R27-4 R27-5 CBX01 GN-RD 3TBD 1.5
