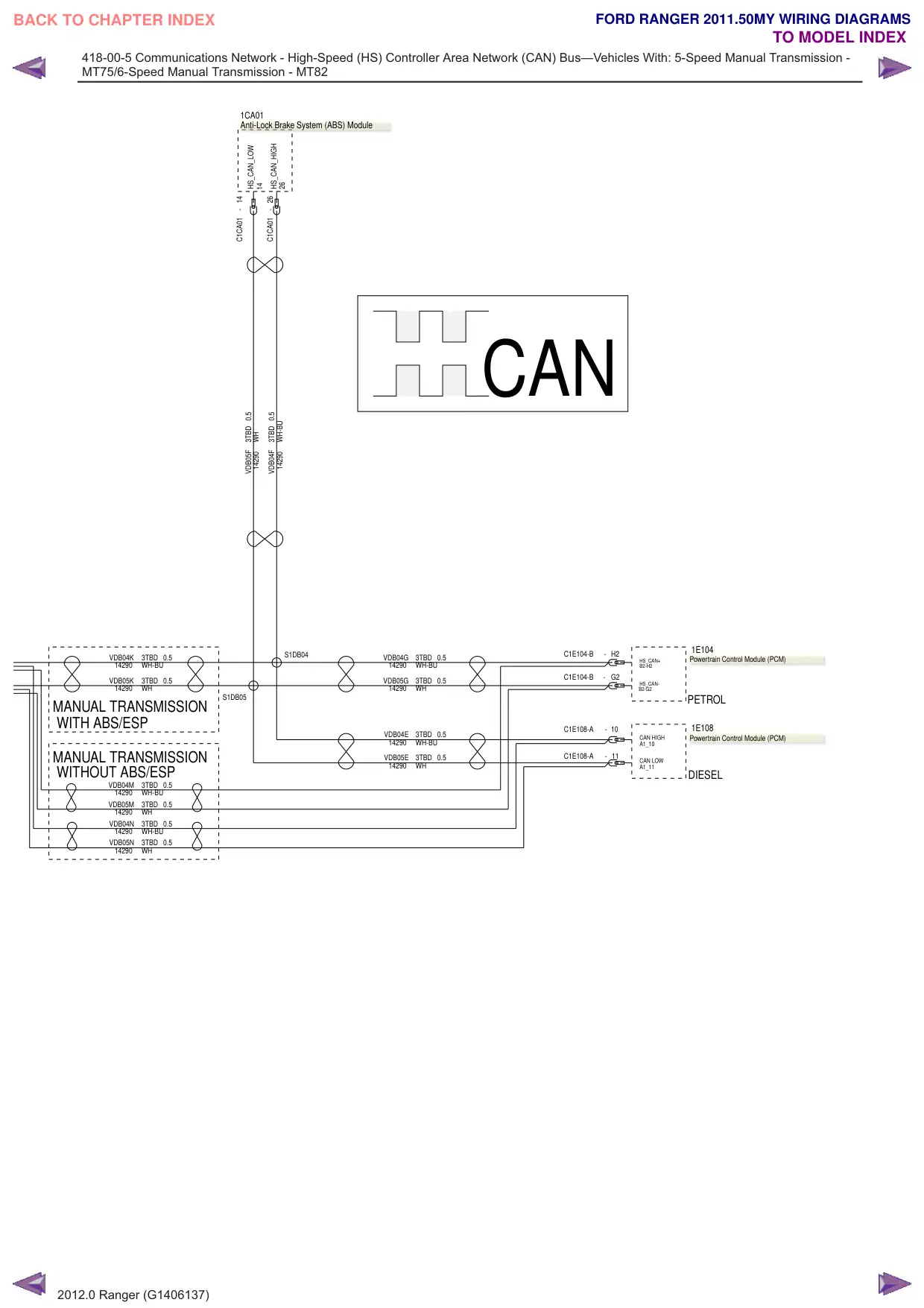

418-00-5 Communications Network - High-Speed (HS) Controller Area Network (CAN) Bus—Vehicles With: 5-Speed Manual Transmission -
MT75/6-Speed Manual Transmission - MT82
1CA01
Anti-Lock Brake System (ABS) Module
HS_CAN_LOW
HS_CAN_HIGH
14
26
14
26
-
-
C1CA01
C1CA01
0.5
0.5
WH-BU
3TBD
3TBD
WH
VDB05F
14290
VDB04F
14290
S1DB04
VDB04K
3TBD 0.5
VDB04G
3TBD
14290
WH-BU
14290
WH-BU
VDB05K
3TBD
0.5
VDB05G
3TBD 0.5
14290
WH
14290
WH
S1DB05
MANUAL TRANSMISSION
WITH ABS/ESP
VDB04E
3TBD
14290
WH-BU
MANUAL TRANSMISSION
VDB05E
3TBD 0.5
14290
WH
WITHOUT ABS/ESP
VDB04M
3TBD
0.5
14290
WH-BU
VDB05M
3TBD
0.5
14290
WH
VDB04N
3TBD
0.5
14290
WH-BU
VDB05N
3TBD
0.5
14290
WH
2012.0 Ranger (G1406137)
CAN
1E104
C1E104-B
-
H2
0.5
HS_CAN+
Powertrain Control Module (PCM)
B2-H2
C1E104-B
-
G2
HS_CAN-
B2-G2
PETROL
C1E108-A
-
10
1E108
0.5
CAN HIGH
Powertrain Control Module (PCM)
A1_10
C1E108-A
-
11
CAN LOW
A1_11
DIESEL
