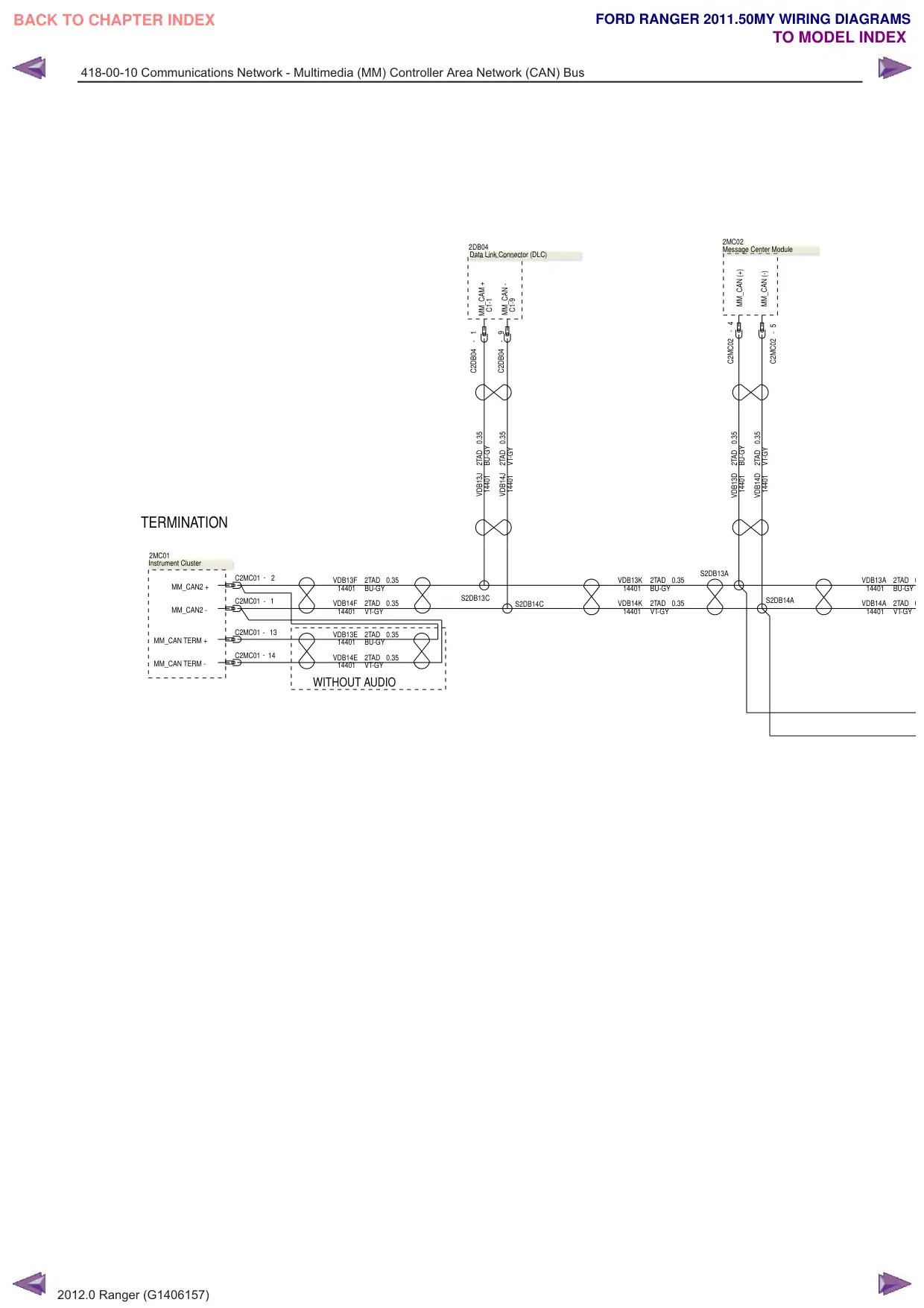

Rede de comunicação - Barramento CAN (Controller Area Network) multimídia (MM)

418-00-10 Communications Network - Multimedia (MM) Controller Area Network (CAN) Bus TERMINATION 2MC01 Instrument Cluster C2MC01 - 2 VDB13F 2TAD 0.35 MM_CAN2 + 14401 BU-GY C2MC01 - 1 VDB14F 2TAD 0.35 MM_CAN2 - 14401 VT-GY C2MC01 - 13 VDB13E 2TAD 0.35 MM_CAN TERM + 14401 BU-GY C2MC01 - 14 VDB14E 2TAD 0.35 MM_CAN TERM - 14401 VT-GY WITHOUT AUDIO 2012.0 Ranger (G1406157) 2MC02 2DB04 Message Center Module Data Link Connector (DLC) MM_CAN (+) MM_CAN (-) MM_CAM + MM_CAN - C1-1 C1-9 - 4 - 5 1 9 - - C2MC02 C2MC02 C2DB04 C2DB04 0.35 0.35 0.35 0.35 BU-GY VT-GY BU-GY VT-GY 2TAD 2TAD 2TAD 2TAD VDB13J 14401 VDB14J 14401 VDB13D 14401 VDB14D 14401 S2DB13A VDB13K 2TAD 0.35 VDB13A 2TAD 0 14401 BU-GY 14401 BU-GY S2DB13C S2DB14A S2DB14C VDB14K 2TAD 0.35 VDB14A 2TAD 0 14401 VT-GY 14401 VT-GY
