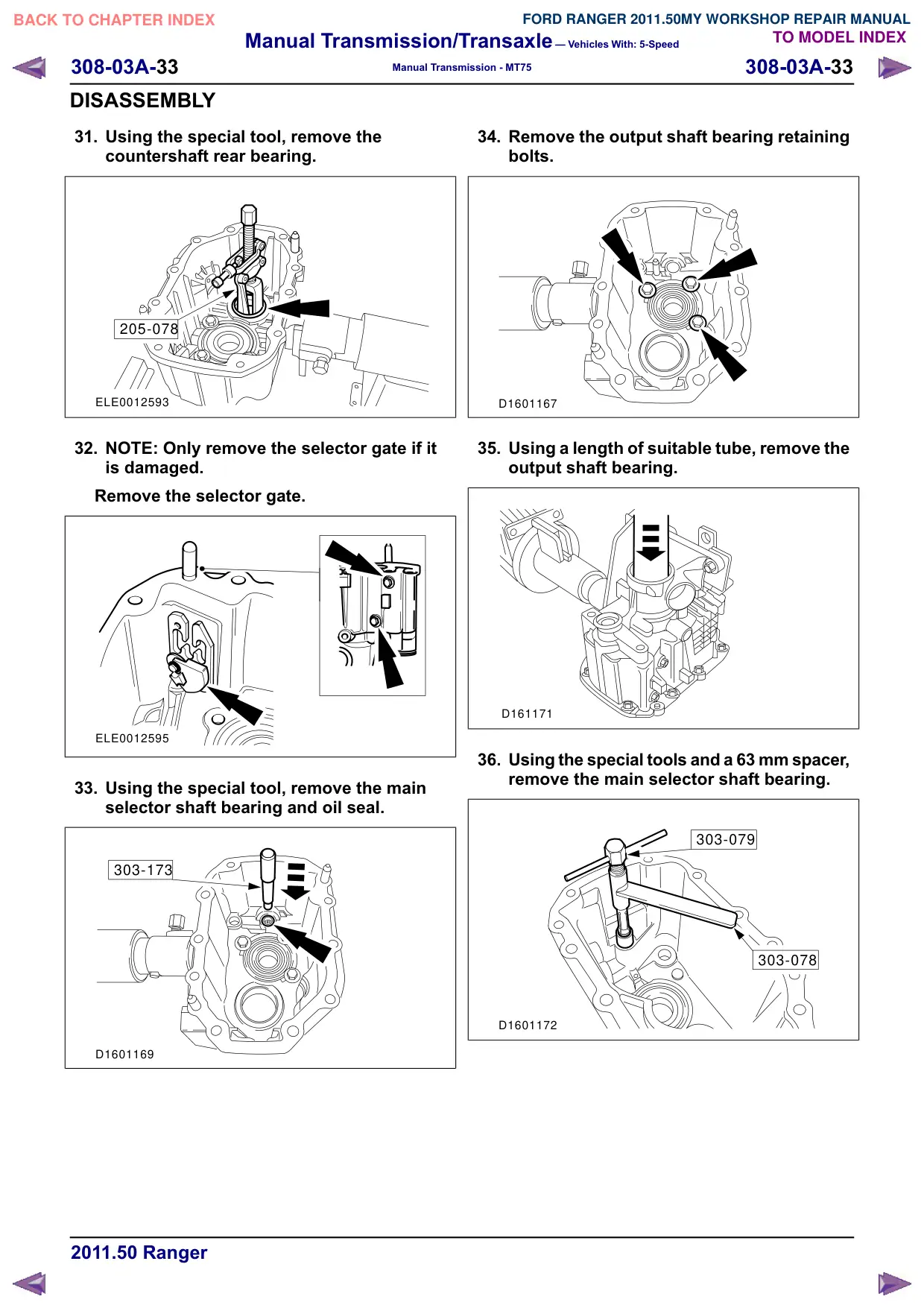

Manual Transmission/Transaxle – Vehicles With: 5-Speed
308-03A-33
308-03A-33
Manual Transmission - MT75
DISASSEMBLY
31. Using the special tool, remove the
countershaft rear bearing.
205-078
ELE0012593
32. NOTE: Only remove the selector gate if it
is damaged.
Remove the selector gate.
ELE0012595
33. Using the special tool, remove the main
selector shaft bearing and oil seal.
303-173
D1601169
34. Remove the output shaft bearing retaining
bolts.
D1601167
35. Using a length of suitable tube, remove the
output shaft bearing.
D161171
36. Using the special tools and a 63 mm spacer,
remove the main selector shaft bearing.
303-079
303-078
D1601172
