Transmissão – 4WD

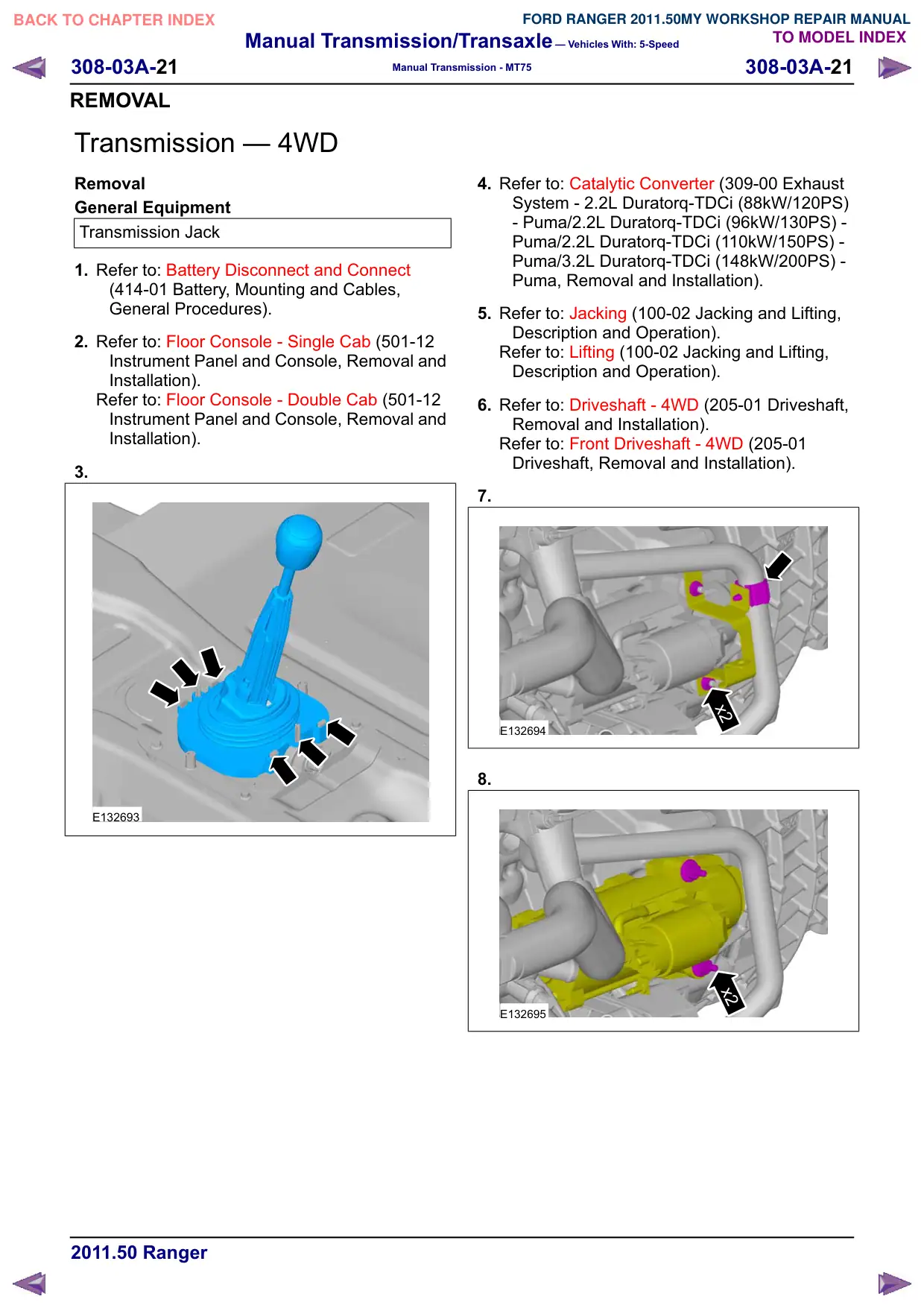

Manual Transmission/Transaxle – Vehicles With: 5-Speed 308-03A-21 308-03A-21 Manual Transmission - MT75 REMOVAL Transmission – 4WD Removal General Equipment Transmission Jack 1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures). 2. Refer to: Floor Console - Single Cab (501-12 Instrument Panel and Console, Removal and Installation). Refer to: Floor Console - Double Cab (501-12 Instrument Panel and Console, Removal and Installation). 3. E132693 4. Refer to: Catalytic Converter (309-00 Exhaust System - 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma/3.2L Duratorq-TDCi (148kW/200PS) - Puma, Removal and Installation). 5. Refer to: Jacking (100-02 Jacking and Lifting, Description and Operation). Refer to: Lifting (100-02 Jacking and Lifting, Description and Operation). 6. Refer to: Driveshaft - 4WD (205-01 Driveshaft, Removal and Installation). Refer to: Front Driveshaft - 4WD (205-01 Driveshaft, Removal and Installation). 7. x2 x2 E132694 8. x2 x2 E132695
