Clutch Controls – Vehicles With: 6-Speed Manual Transmission - MT82
308-02B-2
308-02B-2
DESCRIPTION AND OPERATION

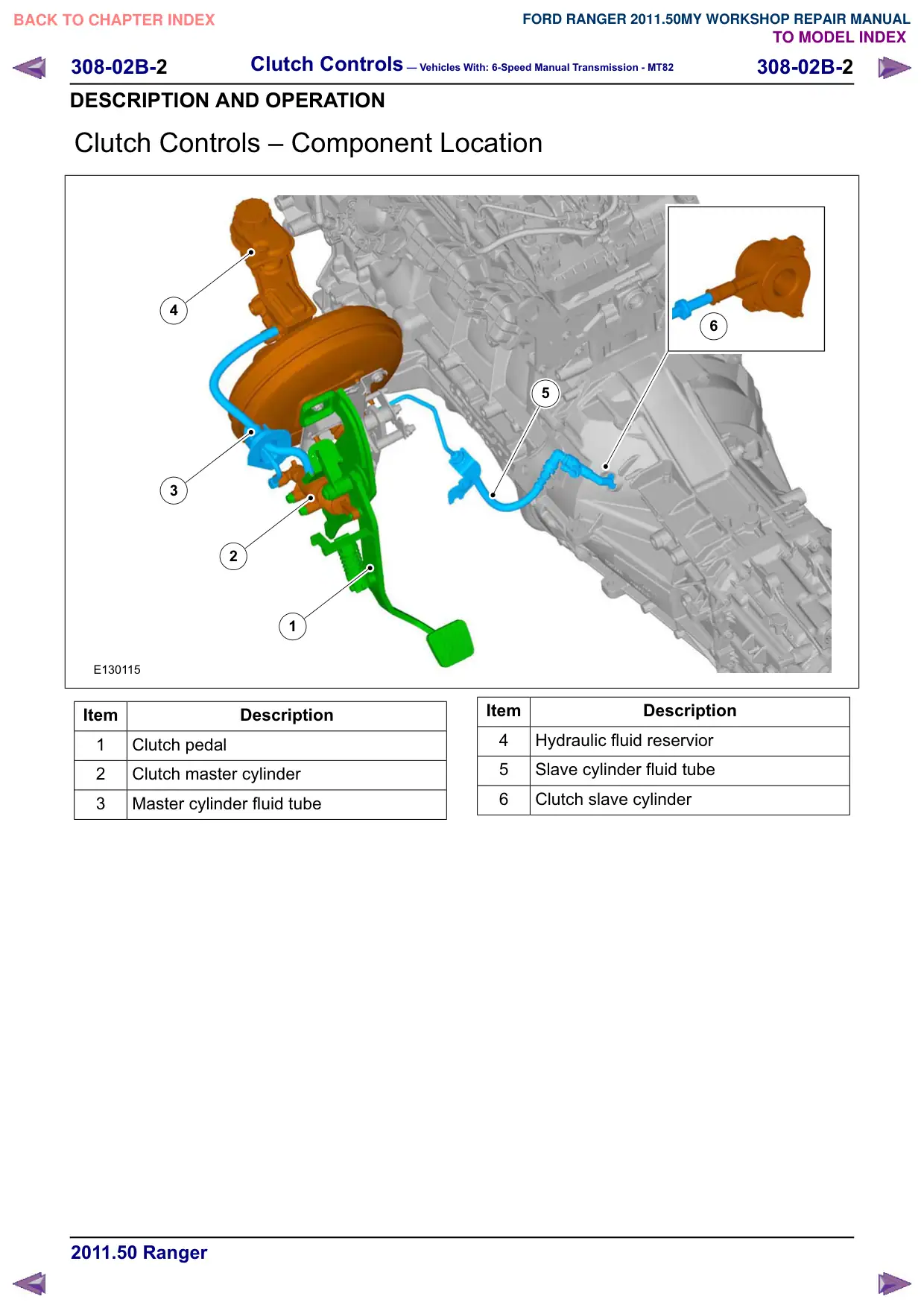

Clutch Controls œ Component Location
4
3
2
1
E130115
Item
Description
1
Clutch pedal
2

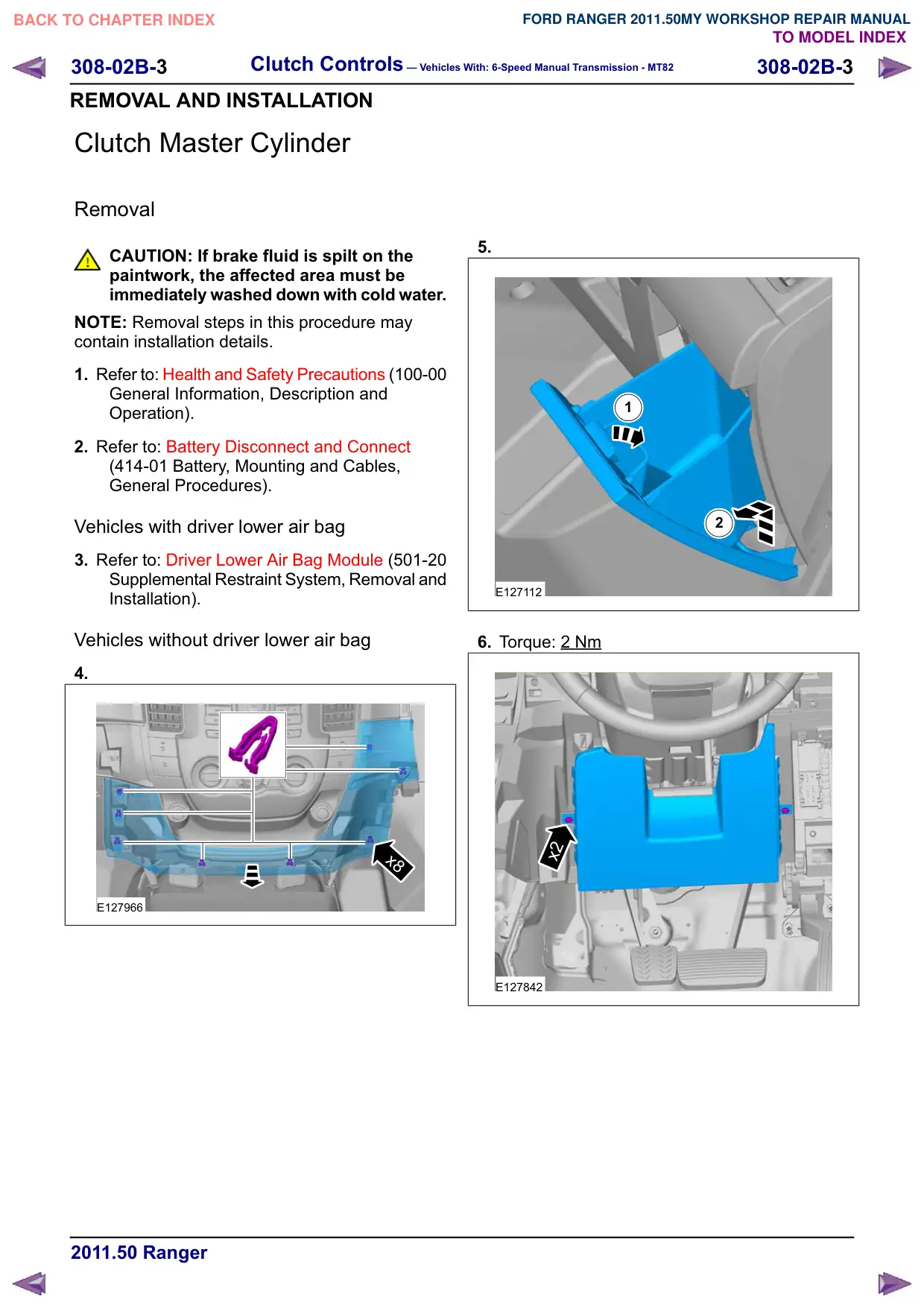

Clutch master cylinder
3
Master cylinder fluid tube
6
5
Item
Description
4
Hydraulic fluid reservior
5
Slave cylinder fluid tube
6
Clutch slave cylinder
